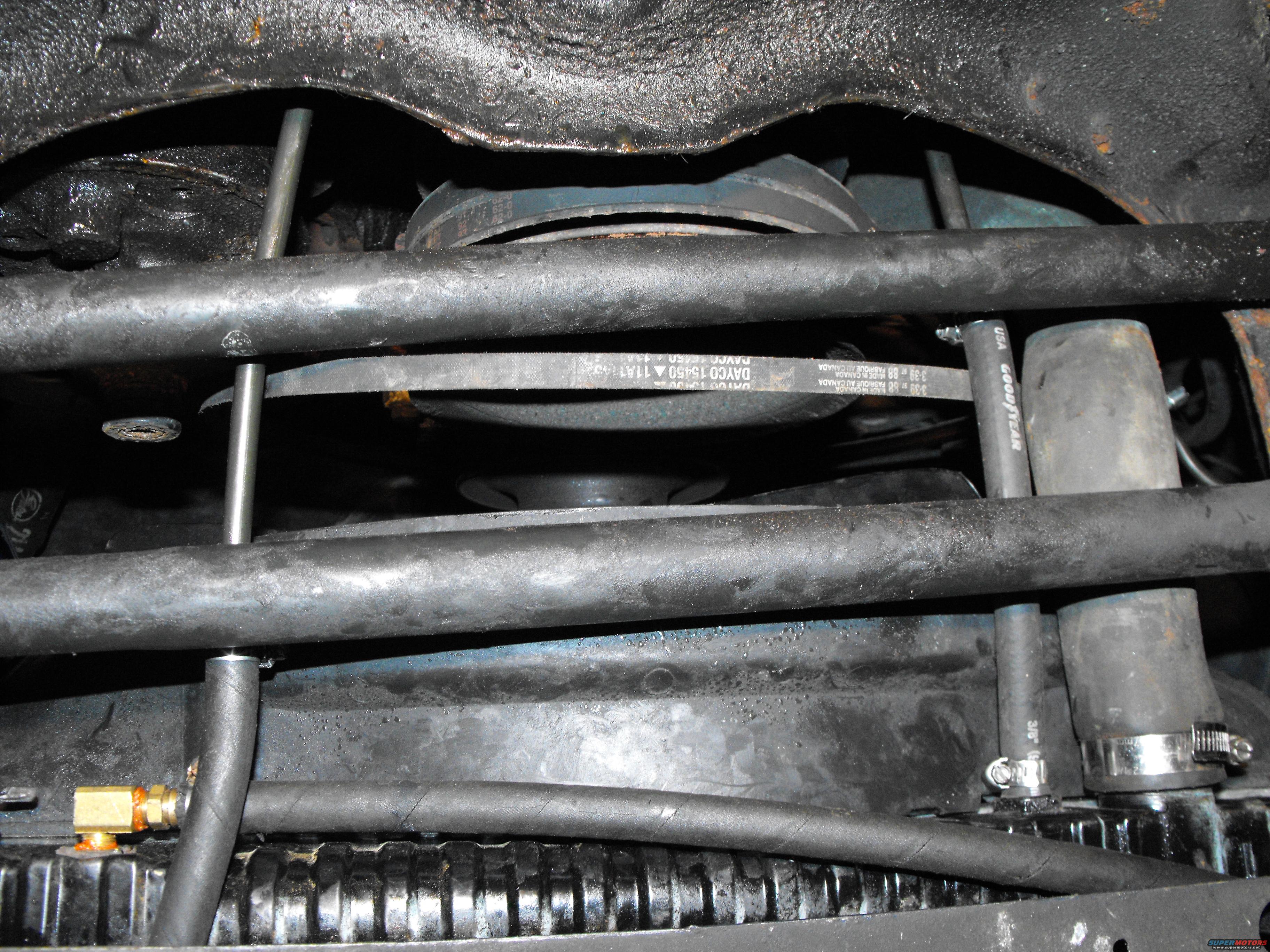

the hot transmission fluid is coming to the rad cooling loop from the front most fitting on the trans, to the fitting on the right side (in the pic). We're upside down so it is coming in to the passenger's side rad fitting via the 3/8" polyarmour line and the 7" of 3/8" hose. It would normally go out the left hand fitting, back to the rearmost trans fitting. You can see it's been replaced by a right angle fitting with a hose taking it to the "IN" nipple on the remote filter.

Owner caption July 2013 · Photo 18 of 75
