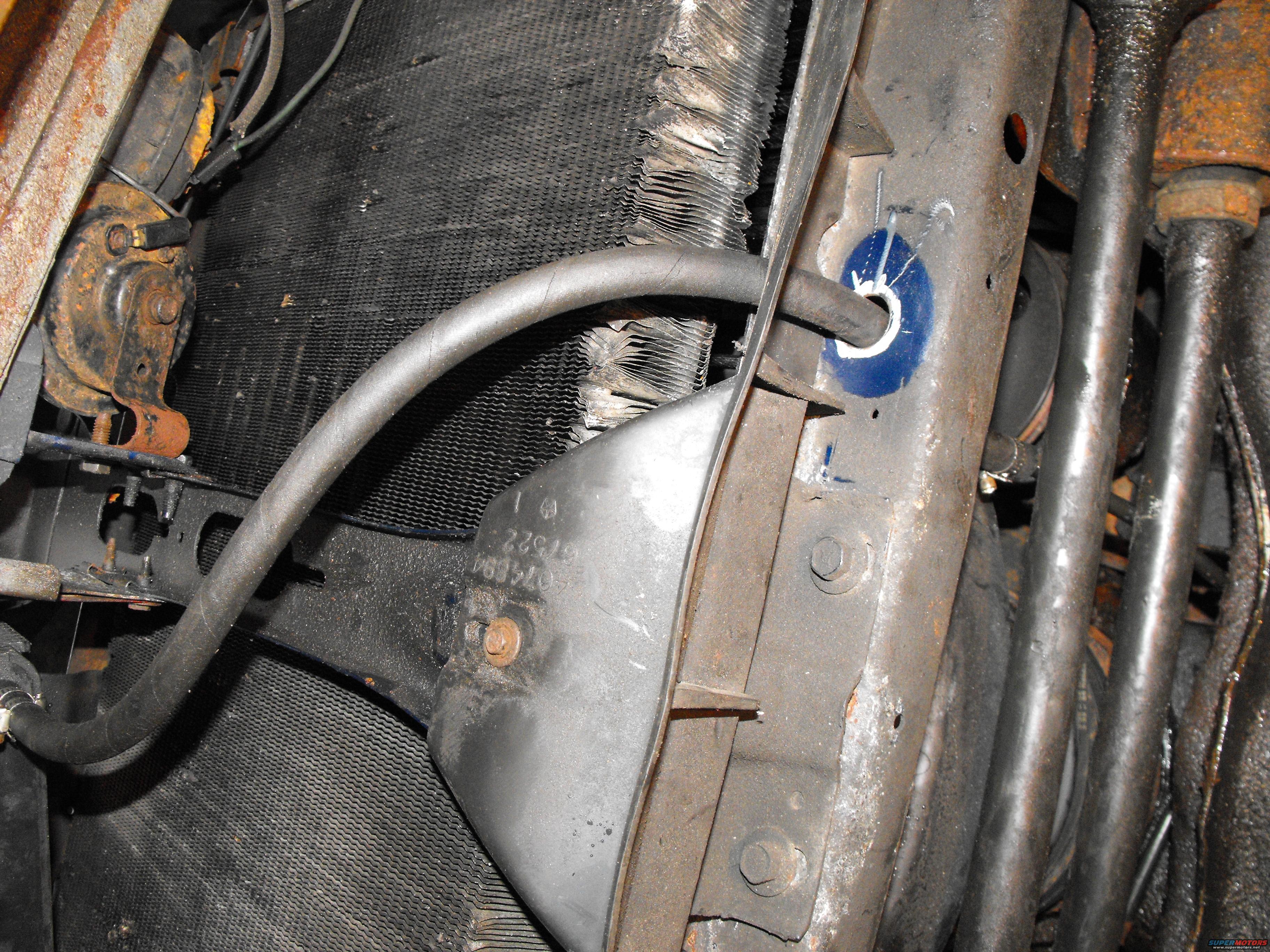

dscf2774.jpg This hose complete's the circle, coimg out of the other side of the stacked plater cooler, routing through the chin spoiler, then through an existing hole in the lower rad support (I enlarged) and clamping right onto the return line which will take the extra cool, extra filtered ATF back to the rearmost transmission fitting.
dscf2774.jpg | Hits: 288 | Posted on: 7/10/13 | View original size (4.74 MB)

This hose complete's the circle, coimg out of the other side of the stacked plater cooler, routing through the chin spoiler, then through an existing hole in the lower rad support (I enlarged) and clamping right onto the return line which will take the extra cool, extra filtered ATF back to the rearmost transmission fitting.
