From 2004 Ford Crown Victoria “None Yet” — documented by Jason Tetterton.

9 photos
← Back to this vehicle

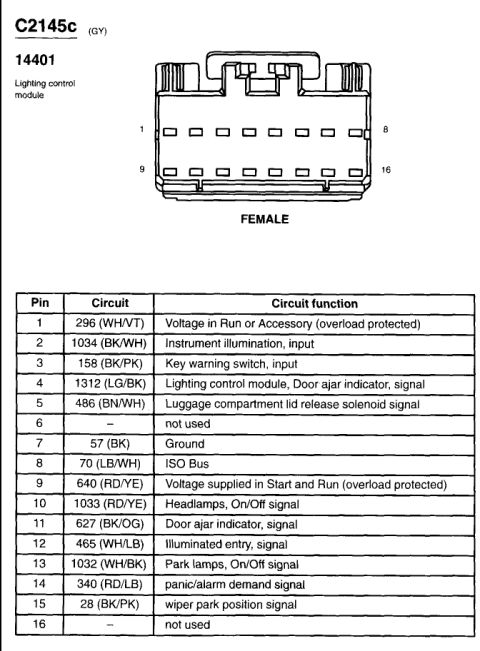

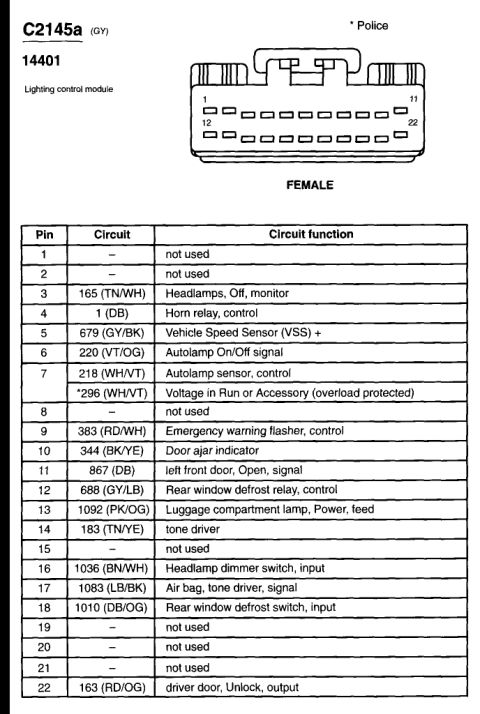

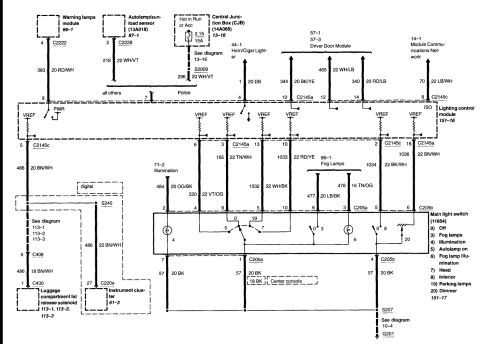

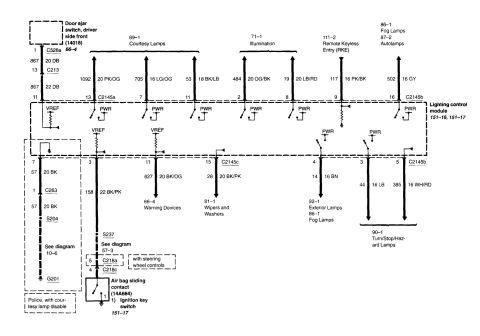

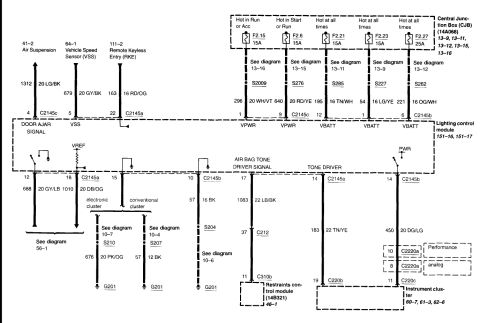

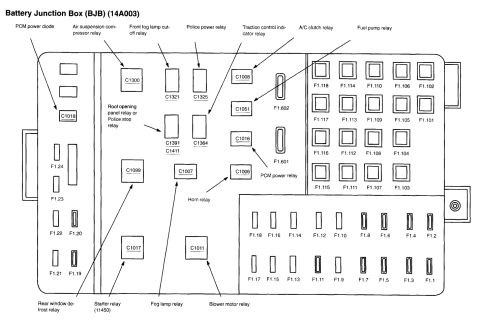

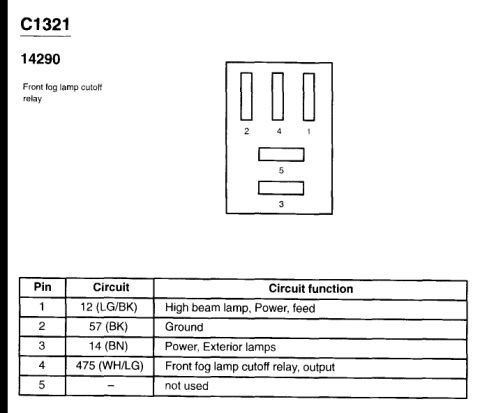

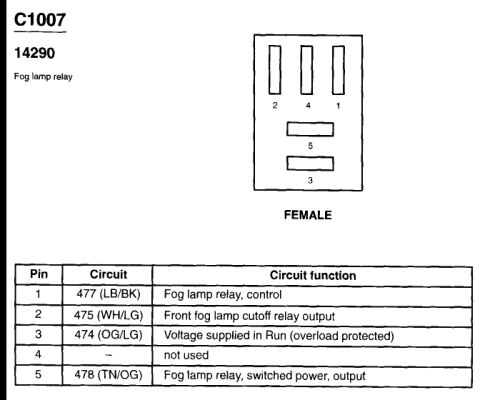

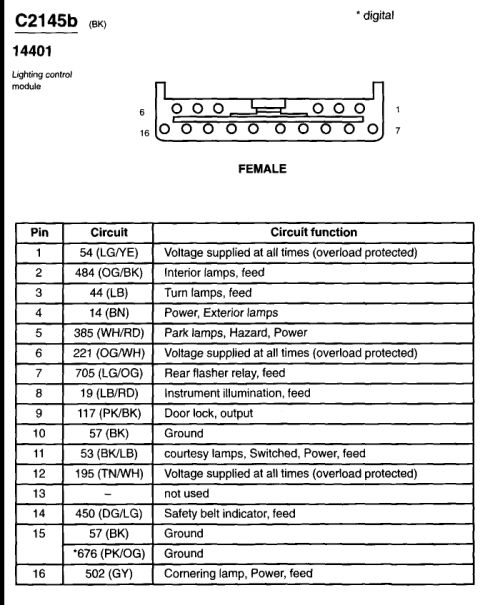

2004 Ford Crown Victoria - This diagram displays electrical connections and includes a table of specifications. 2004 Ford Crown Victoria - This is a document with readable text and columns of data. 2004 Ford Crown Victoria - This is a wiring diagram with a list of wire colors and their corresponding functions. 2004 Ford Crown Victoria - This is a wiring diagram with various components and connections illustrated. 2004 Ford Crown Victoria - This is a wiring diagram, not a photo of a vehicle. 2004 Ford Crown Victoria - This is a technical diagram with various components and connections illustrated. 2004 Ford Crown Victoria - This diagram shows electrical connections and component layouts. 2004 Ford Crown Victoria - Diagram showing electrical components and a corresponding parts list, likely from a service manual. 2004 Ford Crown Victoria - Electrical component diagram with a table listing part numbers and their descriptions.
