Ford Crown Victoria C1321 Front Fog Lamp Cutoff Relay Connector Pinout

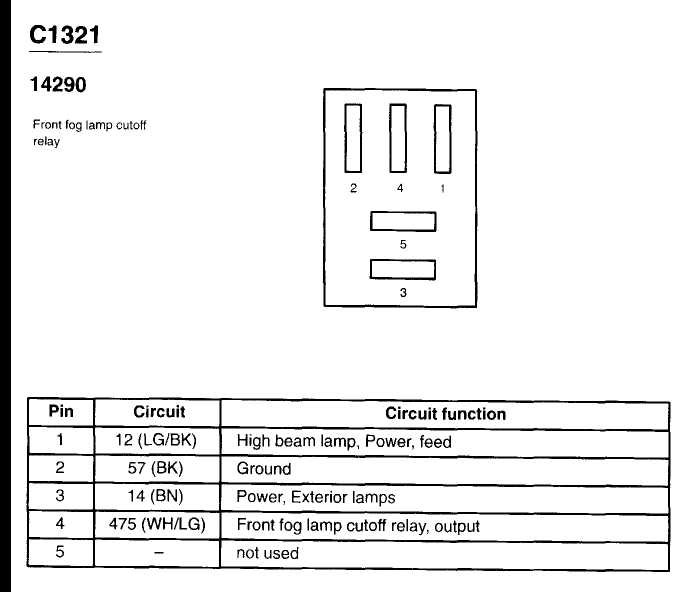

This document is a connector pinout reference page for connector C1321, part group 14290, which serves the front fog lamp cutoff relay on a Ford vehicle (uploaded as applying to a 2004 Ford Crown Victoria). The page shows a connector face diagram with five cavities: three vertical slots in the top row labeled 2, 4, and 1, plus two horizontal slots below labeled 5 and 3. Beneath the diagram is a table listing each pin, its circuit number and wire color, and its circuit function. Pin 1 uses circuit 12 with a light green/black (LG/BK) wire for the high beam lamp power feed. Pin 2 uses circuit 57 with a black (BK) wire for ground. Pin 3 uses circuit 14 with a brown (BN) wire for exterior lamps power. Pin 4 uses circuit 475 with a white/light green (WH/LG) wire for the front fog lamp cutoff relay output. Pin 5 is not used. This information is useful for diagnosing fog lamp circuit issues, verifying wire colors at the relay connector, and testing power, ground, and output signals at the front fog lamp cutoff relay.
