Ford Crown Victoria Lighting Control Module C2145c Connector Pinout (14401)

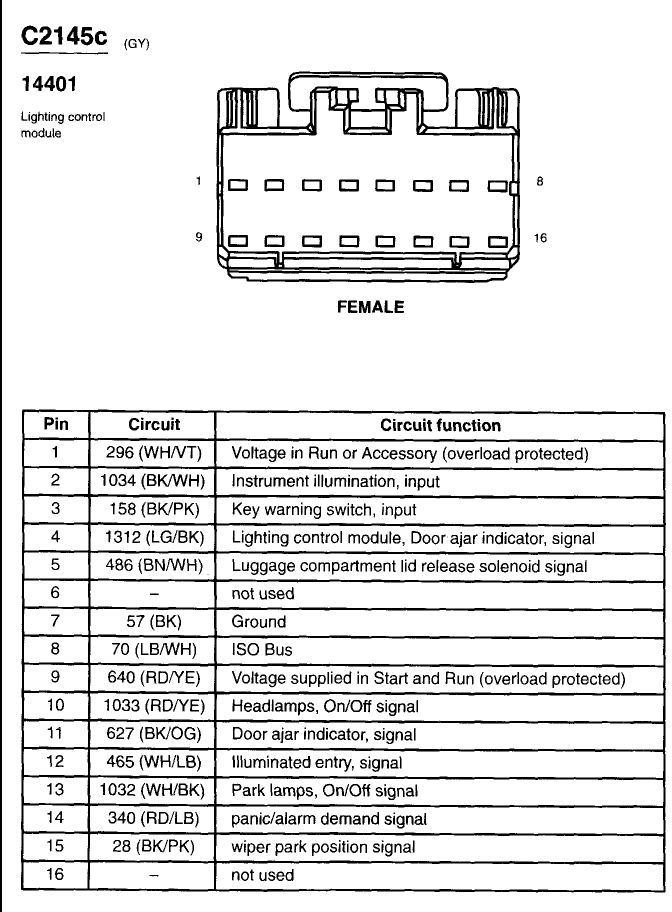

This document is a connector pinout reference page for connector C2145c (gray, GY), a 16-pin female connector attached to component 14401, the Lighting Control Module. The page includes an illustration of the female connector face showing pin numbering: pins 1 through 8 across the top row and pins 9 through 16 across the bottom row. Below the illustration, a table lists each pin, its circuit number and wire color code, and the circuit function. Key circuits include pin 1 (296 WH/VT, voltage in Run or Accessory, overload protected), pin 2 (1034 BK/WH, instrument illumination input), pin 3 (158 BK/PK, key warning switch input), pin 5 (486 BN/WH, luggage compartment lid release solenoid signal), pin 7 (57 BK, ground), pin 8 (70 LB/WH, ISO Bus), pin 9 (640 RD/YE, voltage supplied in Start and Run), pin 10 (1033 RD/YE, headlamps on/off signal), pin 13 (1032 WH/BK, park lamps on/off signal), pin 14 (340 RD/LB, panic/alarm demand signal), and pin 15 (28 BK/PK, wiper park position signal). Pins 6 and 16 are not used. A reader can identify wire colors and functions when diagnosing or repairing lighting control module wiring.
