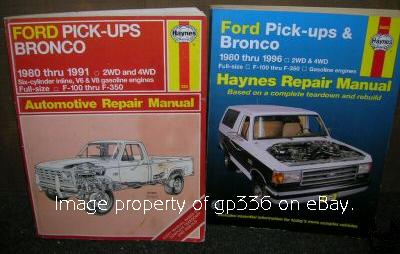

hayneses.jpg This red one is a VERY old edition (#880), perfect for '80-86 trucks.  It includes many older diagrams not found in later editions.  For '87-96 trucks, a [url=http://matveynator.ru/f/95a5b03dea0e72ac31566bc78c7dc009.pdf]red cover that goes to '96[/url] (also [url=https://drive.google.com/open?id=1szTDip0c1uheJSikNjodtVpm5WMZwjeq]here[/url]), or an EARLY blue cover (as shown #36058 ) would be much better because they contain much more info about EFIs, including superior wiring diagrams.

Unfortunately, the LATEST blue-cover edition has deleted much of this info, and its wiring diagrams aren't worth having, except as a crutch until you can find one of the older editions.  Even worse: there's NO difference on the cover, so the only way to tell which version a blue cover is would be to OPEN the book & look at the wiring diagrams.  If you're communicating with an eBay (or other online) seller, ask him what's on page 12-63.  If he says it's '92-later F/Bronco diagram 13 of 13, that's the version you want.  If he says it doesn't HAVE a page with that number... :)  The later version (with crappy wiring diagrams) ends at p.12-54, which is followed by a glossary of engine rebuilding terms.

These manuals are often available on eBay for less than $10 shipped, but make sure you're bidding on (or buying) the edition you really want.  All the blue covers are 80-96 so they're very hard to distinguish, but there are MANY red covers.  To see what's available right now, [url=http://www.ebay.com/sch/i.html?_nkw=ford bronco haynes 1980&_sacat=0&_odkw=bronco manual 1980&_osacat=0]click this[/url]. These are the driver checklist & maintenance schedule that apply to most of these trucks:

[url=http://www.supermotors.net/registry/media/833143][img]http://www.supermotors.net/getfile/833143/thumbnail/maintsched92.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/1164093][img]https://www.supermotors.net/getfile/1164093/thumbnail/maintchecks92.jpg[/img][/url]

If you don't have an owner guide, download the [url=https://www.fordpro.com/en-us/fleet-vehicles/manuals-and-guides/]'96 or '97 PDF free from Ford[/url].

Newest edition (with crappy wiring diagrams) https://www.amazon.com/dp/1563922134/

These [url=https://drive.google.com/drive/folders/0BzRTW4yeT2u4NXB6NW5neFRoZGc]Ford disk images[/url] can be mounted to a virtual drive, and installed to a HDD partition with its own drive letter for use without burning an actual disk, but having the disk is a worthwhile safety net, in case of HDD failure or infection. For instructions on installation & use:

[url=https://www.supermotors.net/registry/media/679798][img]https://www.supermotors.net/getfile/679798/thumbnail/servicedvdinstall30.jpg[/img][/url]
hayneses.jpg | Hits: 25584 | Posted on: 10/28/06 | View original size (24.52 KB)

This red one is a VERY old edition (#880), perfect for '80-86 trucks. It includes many older diagrams not found in later editions. For '87-96 trucks, a red cover that goes to '96 (also here), or an EARLY blue cover (as shown #36058 ) would be much better because they contain much more info about EFIs, including superior wiring diagrams.

Unfortunately, the LATEST blue-cover edition has deleted much of this info, and its wiring diagrams aren't worth having, except as a crutch until you can find one of the older editions. Even worse: there's NO difference on the cover, so the only way to tell which version a blue cover is would be to OPEN the book & look at the wiring diagrams. If you're communicating with an eBay (or other online) seller, ask him what's on page 12-63. If he says it's '92-later F/Bronco diagram 13 of 13, that's the version you want. If he says it doesn't HAVE a page with that number... The later version (with crappy wiring diagrams) ends at p.12-54, which is followed by a glossary of engine rebuilding terms.

These manuals are often available on eBay for less than $10 shipped, but make sure you're bidding on (or buying) the edition you really want. All the blue covers are 80-96 so they're very hard to distinguish, but there are MANY red covers. To see what's available right now, click this. These are the driver checklist & maintenance schedule that apply to most of these trucks:

.

If you don't have an owner guide, download the '96 or '97 PDF free from Ford.

Newest edition (with crappy wiring diagrams) https://www.amazon.com/dp/1563922134/

These Ford disk images can be mounted to a virtual drive, and installed to a HDD partition with its own drive letter for use without burning an actual disk, but having the disk is a worthwhile safety net, in case of HDD failure or infection. For instructions on installation & use:
