dash9296.jpg | Hits: 9014 | Posted on: 3/24/07 | View Low-Res

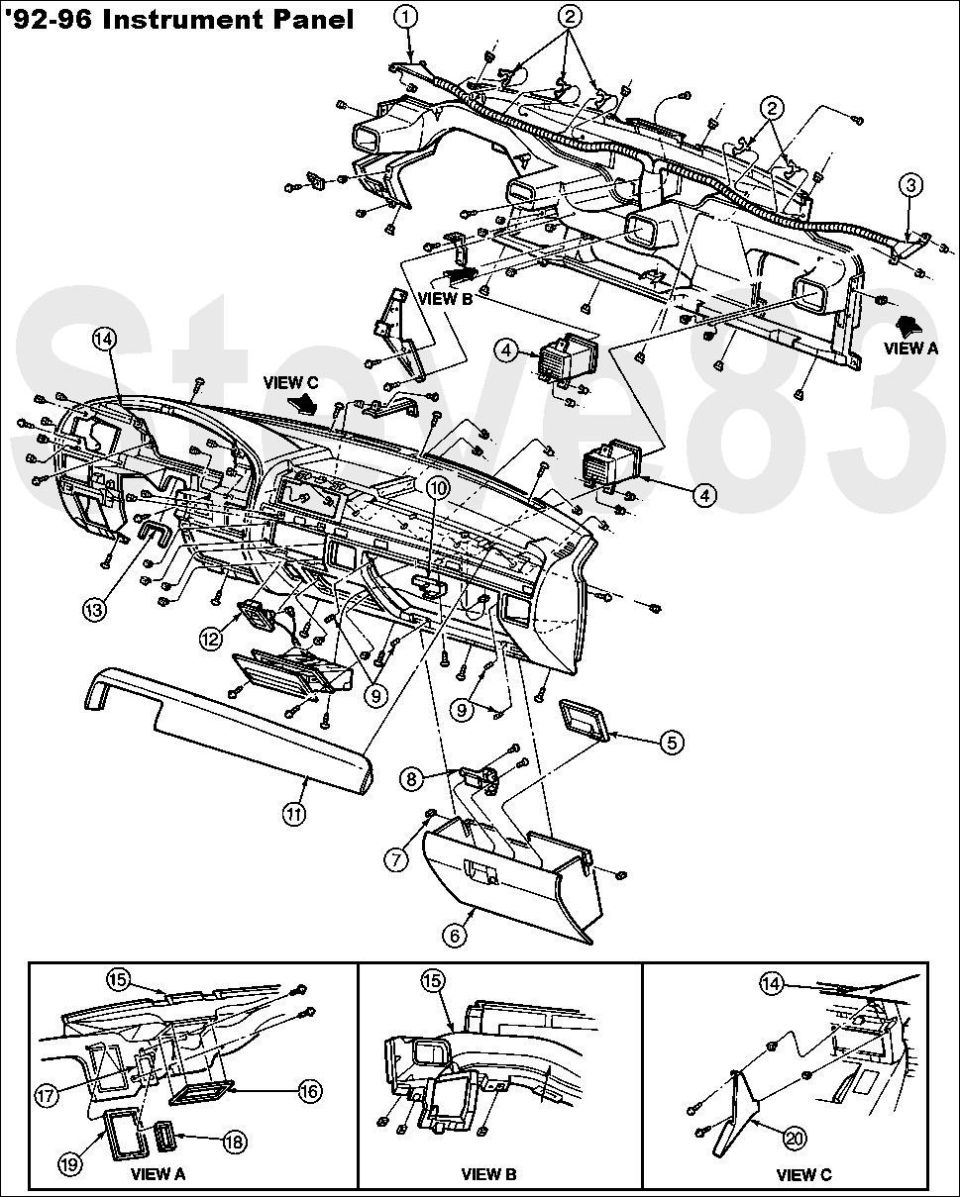

Dash Exploded '92-96
IF THE IMAGE IS TOO SMALL, click it.

This shows a DISASSEMBLED dash; to REMOVE the dash, this is NOT necessary.

1 - A/C Side Window Demister and Hose (RH) 19E630
2 - A/C Accumulator Tube Support Clip 19B632
3 - A/C Side Window Demister and Hose (LH) 19E630
4 - A/C Registers 19893
5 - Glove Compartment Door Latch Cover 061A40
6 - Glove Compartment 06024
7 - Glove Compartment Bumpers 06115
8 - Glove Compartment Door Latch 106004
9 - Glove Compartment Bumpers N805979-S
10 - Lamp and Catch Assembly 5A563
11 - Pad and Retainer 04282
12 - Power Point 19N236
13 - Steering Column Opening Insulator 01657
14 - Instrument Panel 04320
15 - Duct and Support Assembly 19E726
16 - Defrost Seal Nozzle 18C367
17 - Connector 19E680
18 - Demister Seal 19C901
19 - A/C Seal 19C901
20 - Instrument Panel Center Bracket 047A32
