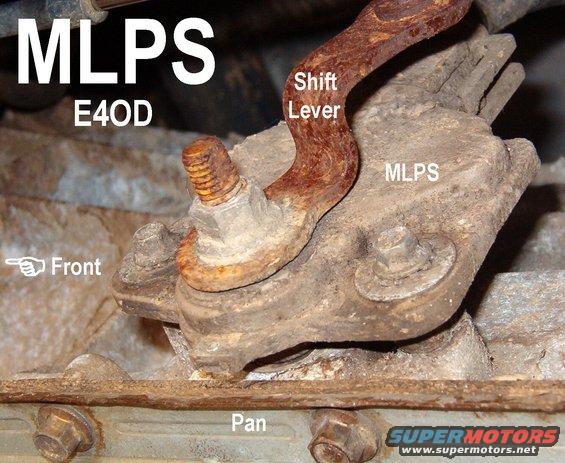

mlpse4od.jpg MLPS on a '93 E4OD (L side)

TSB 95-2-12 E4OD Diagnostic Trouble Codes and/or Harsh Shift Concerns - Water Intrusion of the MLP/TR Sensor

[url=https://www.supermotors.net/registry/media/81709][img]https://www.supermotors.net/getfile/81709/thumbnail/mlps.jpg[/img][/url]

Publication Date: JANUARY 30, 1995

LIGHT TRUCK:
1989-1994 BRONCO, ECONOLINE, F-150-350 SERIES, F-47, F-53, F-59

ISSUE: Some vehicles may exhibit a shift concern and/or a harsh engagement concern due to water intrusion into the MLP/TR sensor and vehicle harness. There may also be a number of different DTC's along with those concerns.

ACTION: Replace the MLP/TR sensor and vehicle harness connector if signs of water penetration are evident. Refer to the following for service details.

SERVICE PROCEDURE
Verify the customer concern. Perform normal on-board diagnostics. Inspect the MLP/TR Sensor for signs of water contamination. If water penetration is present and/or DTC's have been set, replace the MLP/TR sensor and the vehicle harness connector with the TR Sensor Service Kit (F5TZ-7A247-A).

The TR Service Kit contains:
One (1) TR Sensor
One (1) Connector Assembly
One (1) "Red" Pin Separator Plate
One (1) 6-Pin Grommet
One (1) 8-Pin Grommet
One (1) 7-Pin Grommet
One (1) Instruction Sheet

PART NUMBER: F5TZ-7A247-A
PART NAME: TR Sensor Service Kit

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS:Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage For 1992-94 Models, Basic Warranty Coverage For All Other Model Years.

OPERATION: 950212A
DESCRIPTION: Perform Electronic Transmission Diagnostics, Replace MLP/TR Sensor
TIME: 2.0 Hrs.

[url=https://www.supermotors.net/registry/media/769450][img]https://www.supermotors.net/getfile/769450/thumbnail/mlpsconns.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/543732][img]https://www.supermotors.net/getfile/543732/thumbnail/e4od_exploded.jpg[/img][/url]

--------------------------------------------------------------------------------

TSB 98-24-06 New Electrical Terminal Grease Released for Service

Publication Date: NOVEMBER 25, 1998

FORD:
1981-1999 ESCORT
1983-1999 CROWN VICTORIA
1984-1988 EXP
1984-1994 TEMPO
1985-1999 TAURUS
1986-1997 PROBE
1988-1991 FESTIVA
1993-1999 MUSTANG
1994-1997 ASPIRE
1995-1999 CONTOUR
1996-1997 THUNDERBIRD

LINCOLN-MERCURY:
1983-1999 CONTINENTAL, GRAND MARQUIS
1984-1986 CAPRI
1984-1987 LN7
1984-1994 TOPAZ
1985-1999 SABLE
1988-1992 MARK VII
1991-1994 CAPRI
1993-1998 MARK VIII
1993-1999 TRACER
1995-1999 MYSTIQUE
1996-1997 COUGAR, TOWN CAR
1999 COUGAR

MERKUR:
1985-1988 XR4TI
1988 SCORPIO

LIGHT TRUCK:
1981-1996 BRONCO
1981-1997 F SUPER DUTY, F-250 HD, F-350
1981-1999 ECONOLINE, F-150, F-250 LD
1983-1999 RANGER
1984-1990 BRONCO II
1984-1997 AEROSTAR
1991-1999 EXPLORER
1993-1999 VILLAGER
1995-1999 WINDSTAR
1997-1999 EXPEDITION, MOUNTAINEER
1998-1999 NAVIGATOR
1999 SUPER DUTY F SERIES

MEDIUM/HEAVY TRUCK:
1984-1999 F & B SERIES
1988-1997 CARGO SERIES
1996-1998 AEROMAX, LOUISVILLE

ISSUE: Ford Motor Company has released a new [url=http://www.fcsdchemicalsandlubricants.com/supplier/product.asp?product=Electrical%20Grease&category=Greases]Electrical Grease (F8AZ-19G208-AA)[/url] to reduce the possibility of moisture corrosion at the terminals.

[url=http://www.fcsdchemicalsandlubricants.com/supplier/product.asp?product=Electrical%20Grease&category=Greases][img]http://www.fcsdchemicalsandlubricants.com/supplier/images/Products/elecgrea.jpg[/img][/url]

ACTION: Add the new grease during electrical connection repair.

CAUTION: ELECTRICAL CONNECTOR GREASE SHOULD NOT BE USED IN HIGH VOLTAGE CONNECTIONS FOR SPARK PLUG AND COIL WIRE APPLICATIONS.

PROPER USES OF THE NEW ELECTRICAL GREASE INCLUDE:
Electrical Connectors
Battery Connections
Light Sockets
Starter Terminals

DO NOT USE ON:
Spark Plug Wires
Coil Wires
Spark Plug-to-Coil Connections
Low Current Flow Switches (12V Systems less than 0.1 amp)
mlpse4od.jpg | Hits: 9443 | Posted on: 11/14/09 | View original size (311.82 KB)

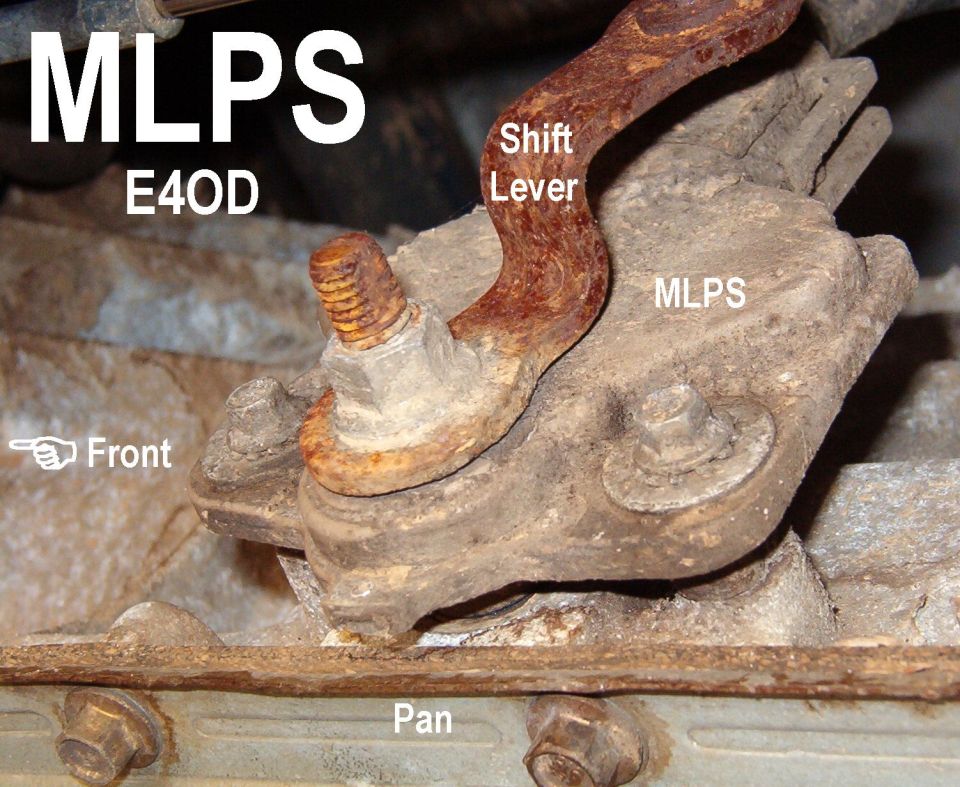

MLPS on a '93 E4OD (L side)
