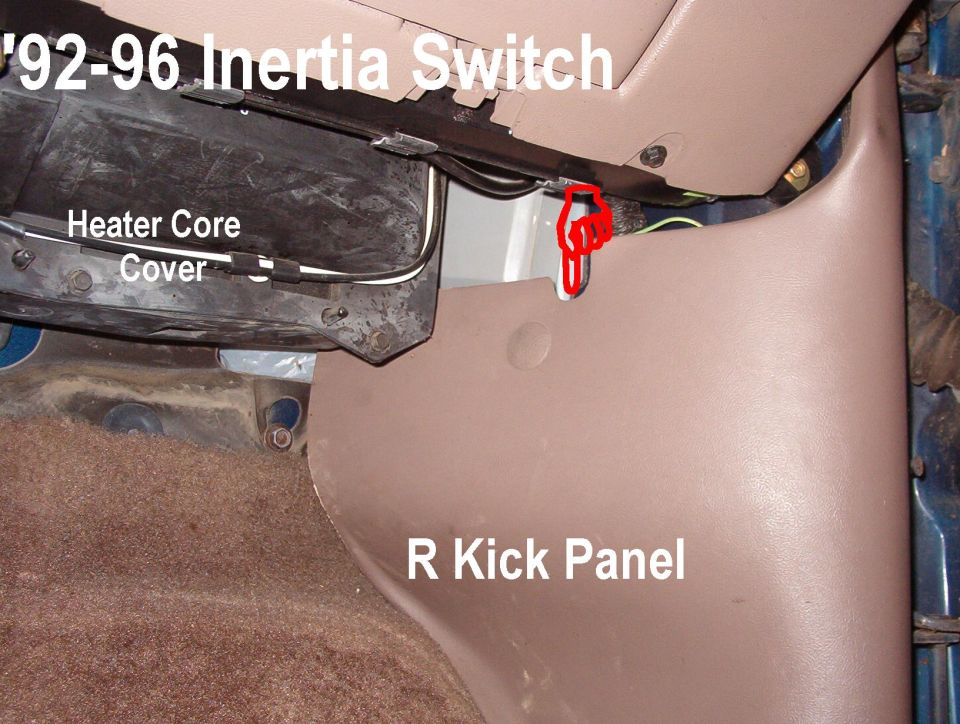

'92-96 Inertia Switch
Push in notch to reset. Remove the kick panel & pry the red button up through the notch in the housing to trip the switch.
.
Earlier inertia switches could be to the R of the transmission hump, or to the L of the brake pedal:
![inertia9297.jpg '92-96 Inertia Switch
Push in notch to reset. Remove the kick panel & pry the red button up through the notch in the housing to trip the switch.
[url=http://www.supermotors.net/registry/media/262982][img]http://www.supermotors.net/getfile/262982/thumbnail/inertiaswitchesopen.jpg[/img][/url] . [url=http://www.supermotors.net/vehicles/registry/media/1096359][img]http://www.supermotors.net/getfile/1096359/thumbnail/ifs-indicator.jpg[/img][/url]
Earlier inertia switches could be to the R of the transmission hump, or to the L of the brake pedal:
[url=http://www.supermotors.net/registry/media/862997][img]http://www.supermotors.net/getfile/862997/thumbnail/inertiasw88.jpg[/img][/url]](https://www.supermotors.net/getfile/767953/fullsize/inertia9297.jpg)
