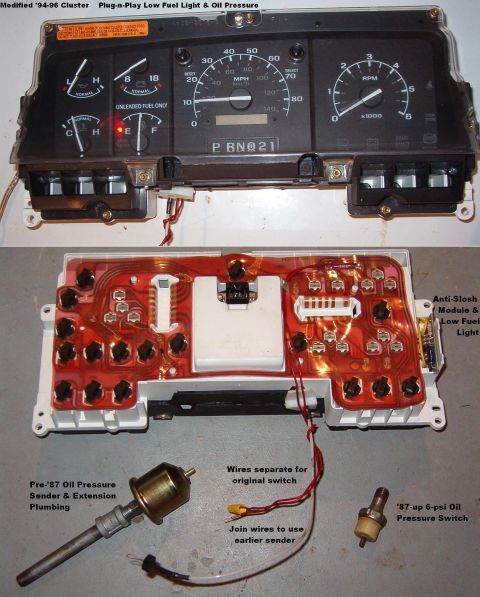

'87-96 Instruments, Low Fuel Light, Oil Pressure

From 1983 Ford Bronco “That dirty old truck” — documented by Steve83.

65 photos
← Back to this vehicle

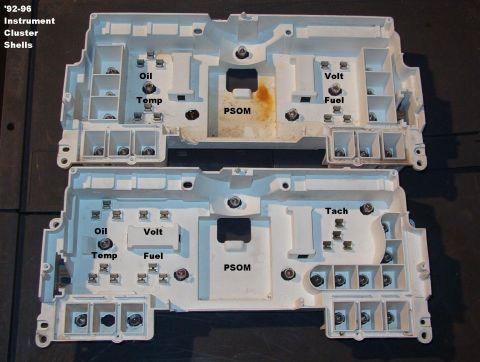

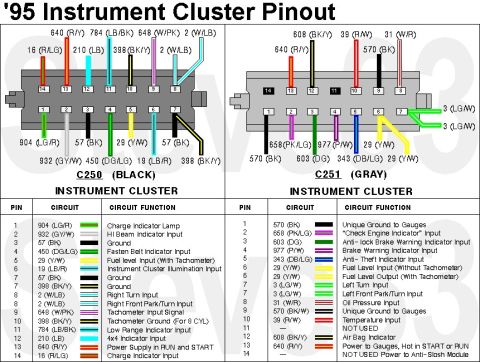

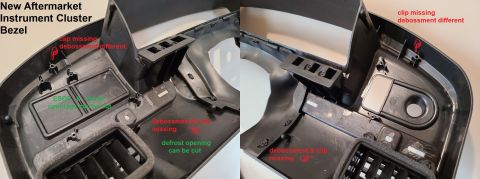

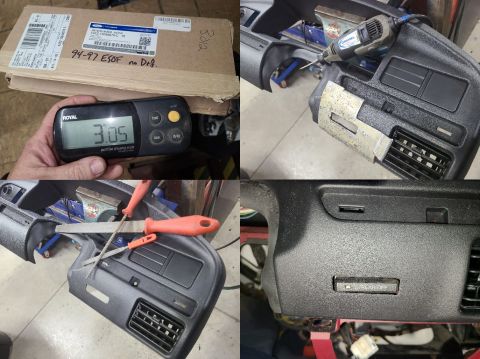

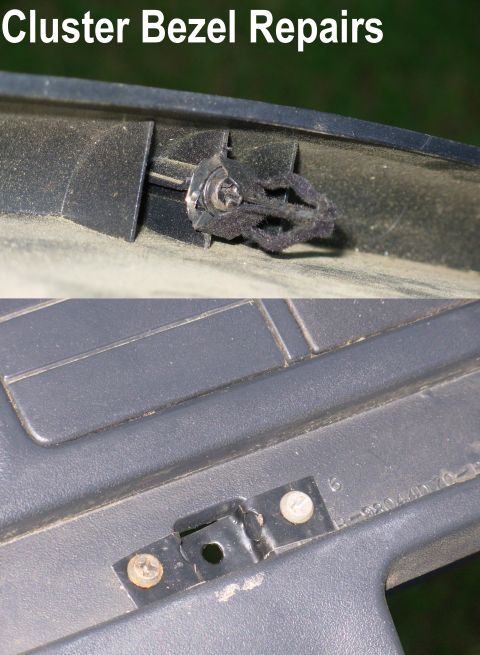

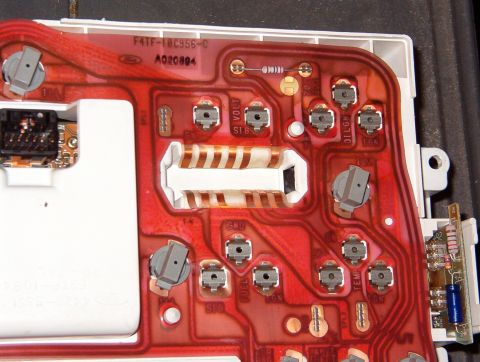

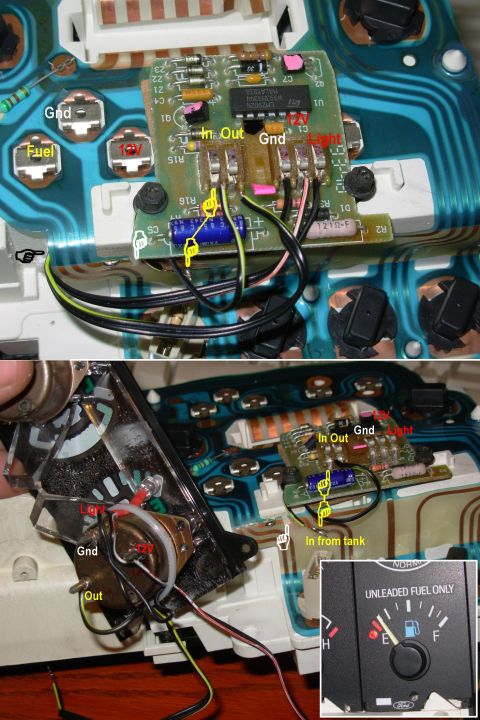

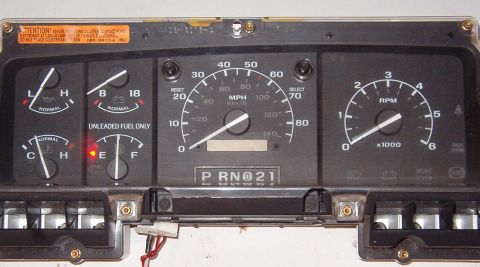

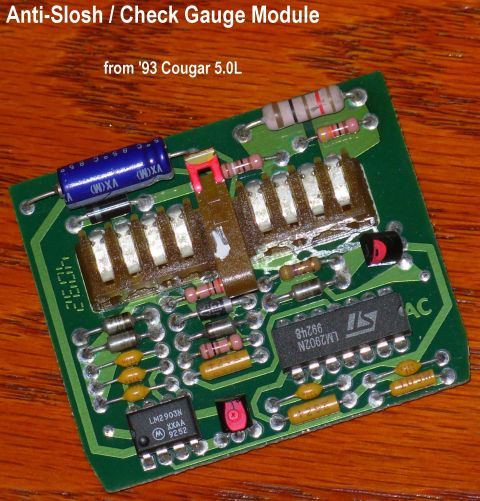

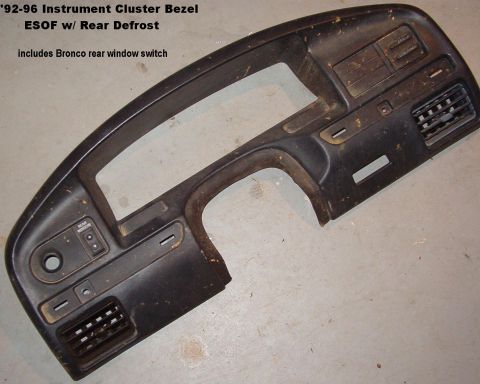

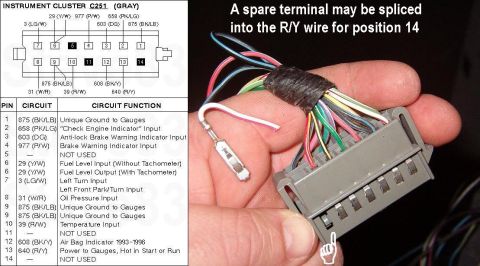

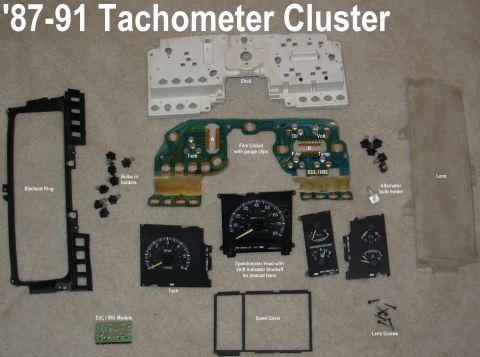

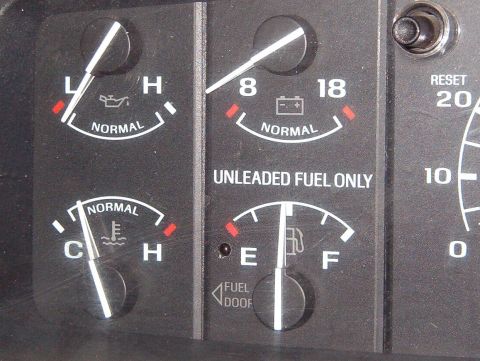

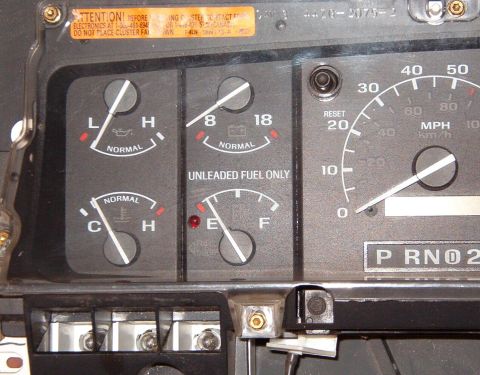

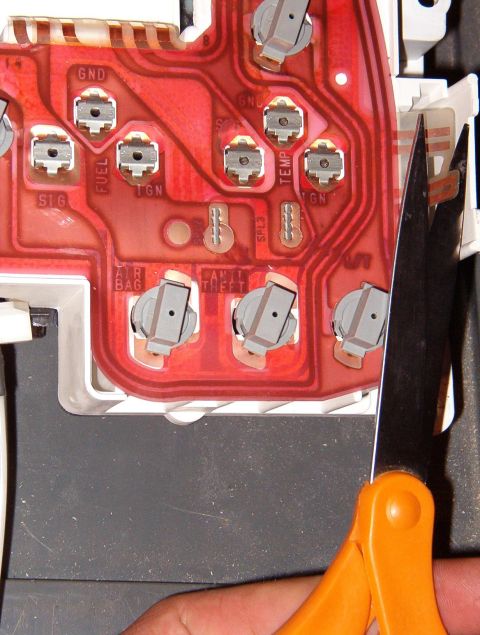

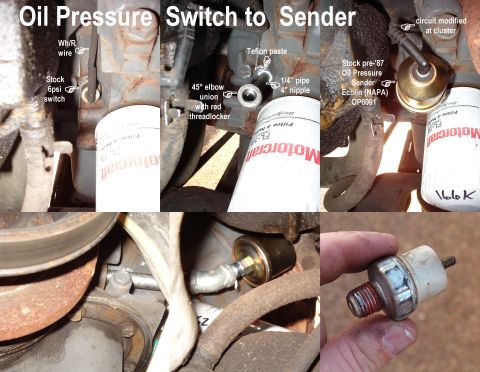

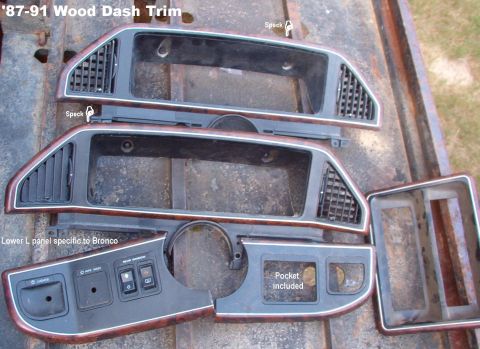

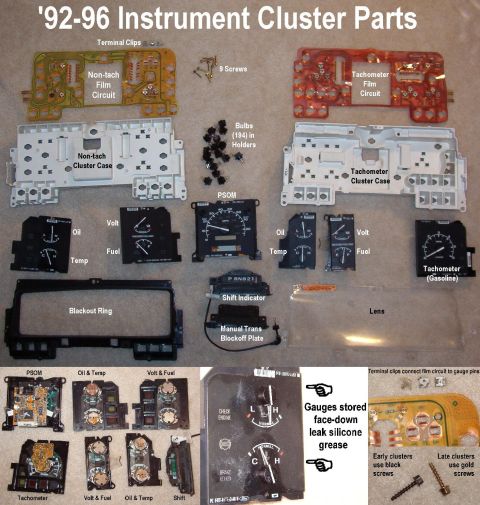

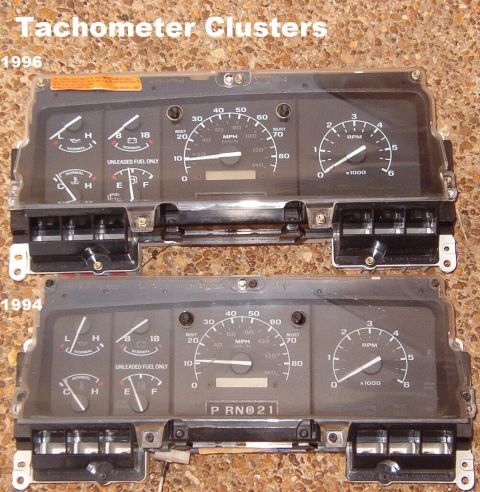

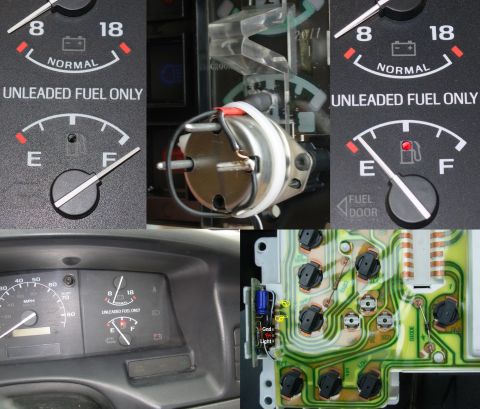

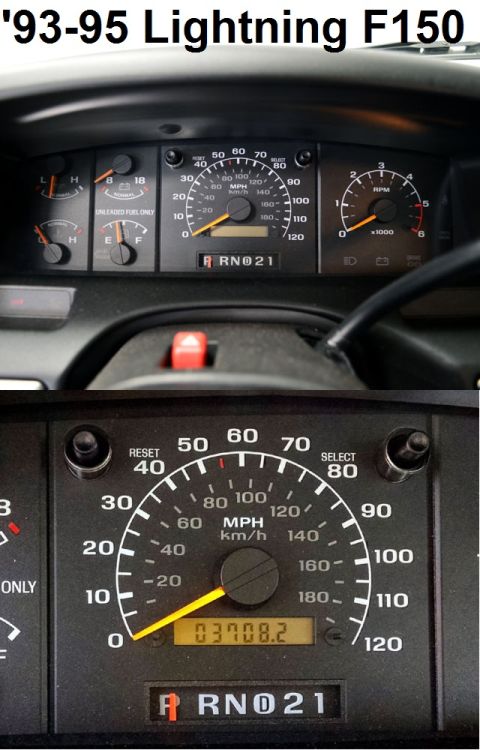

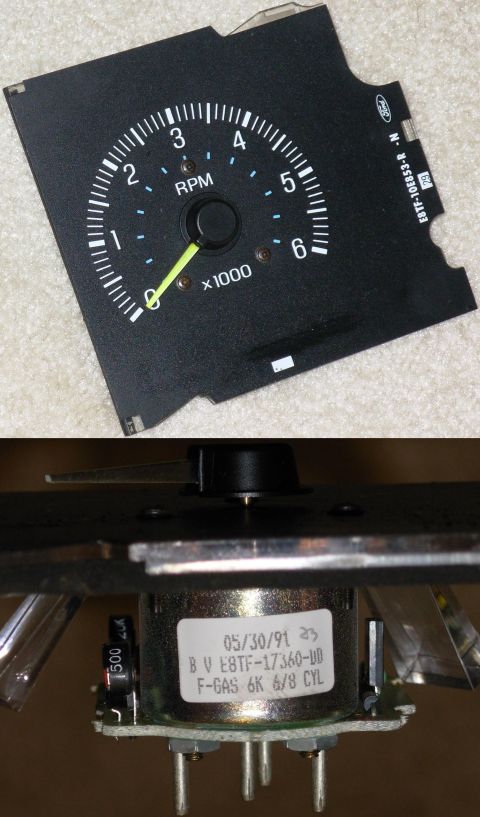

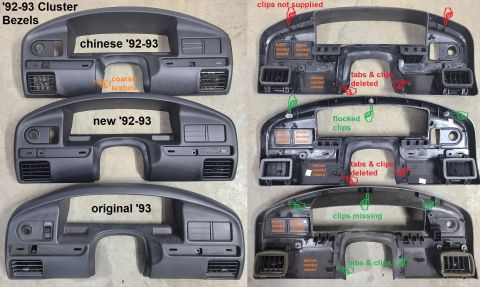

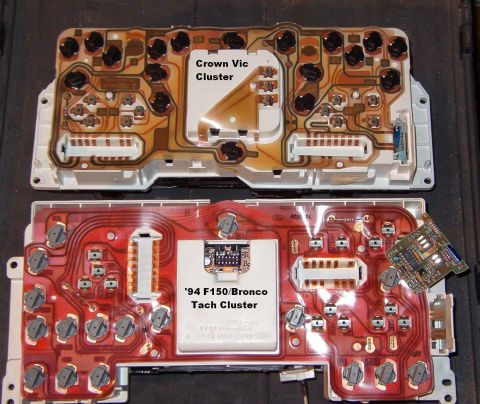

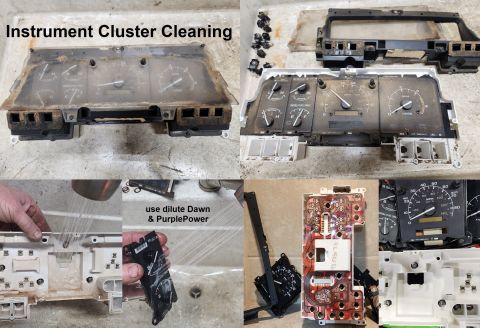

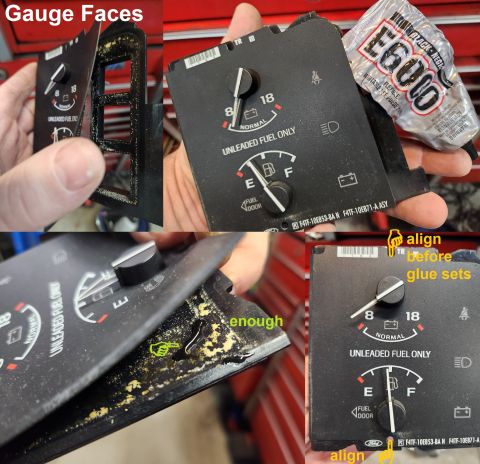

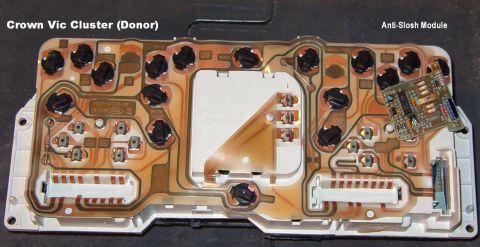

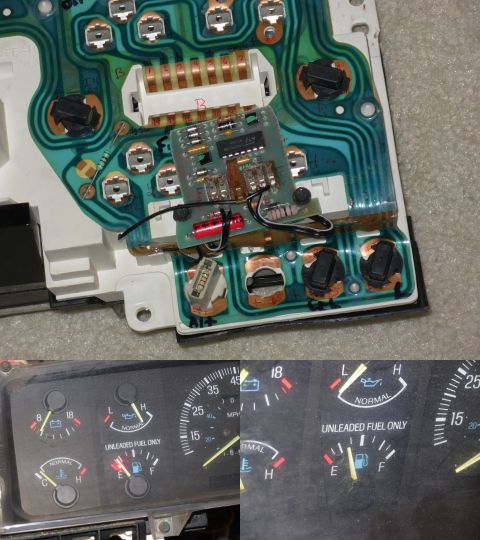

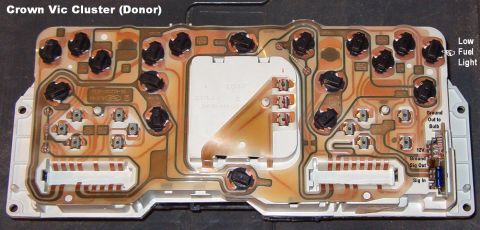

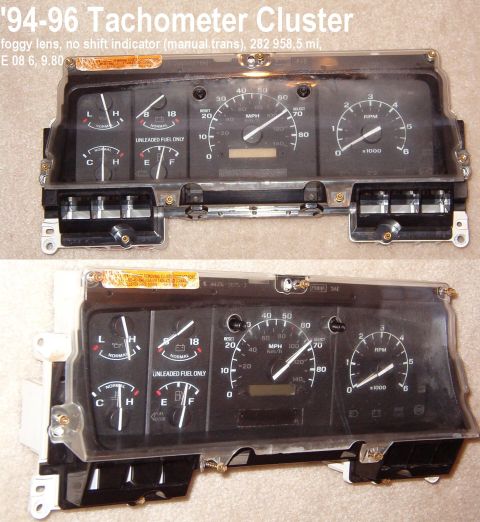

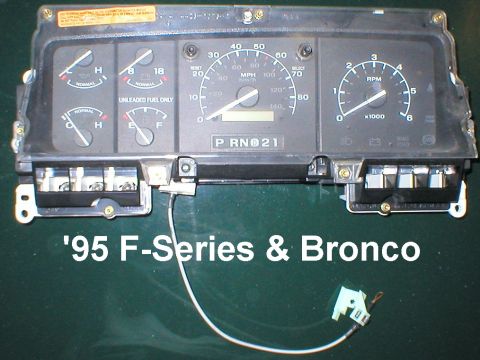

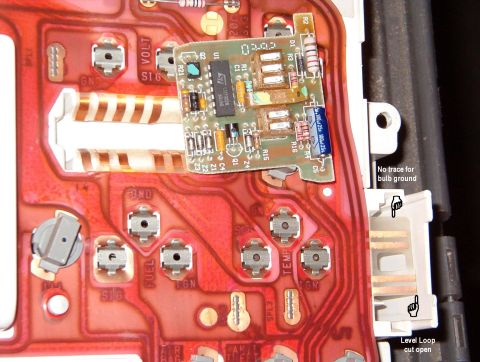

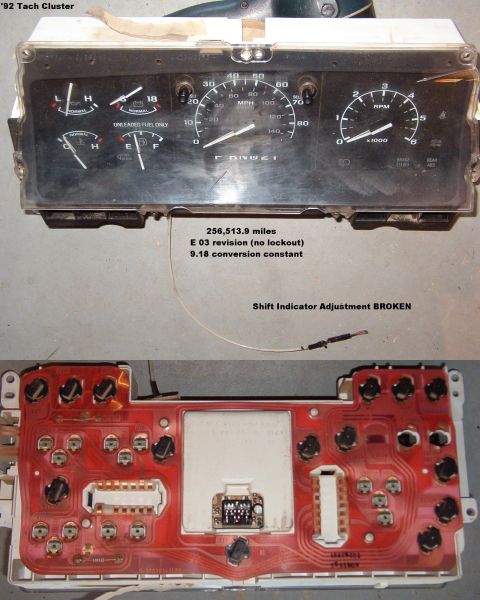

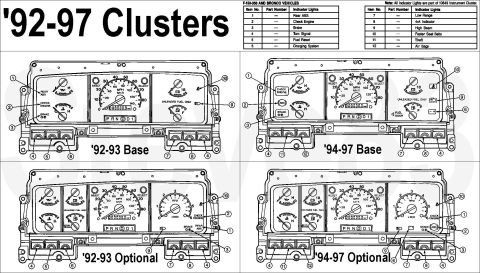

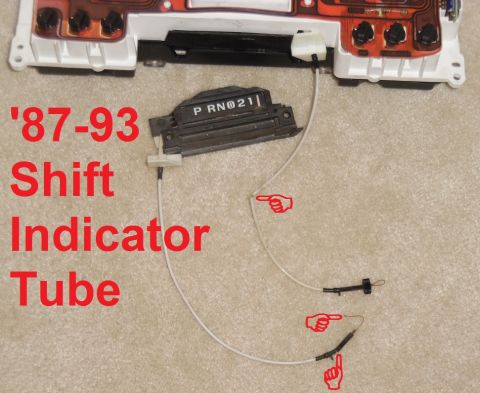

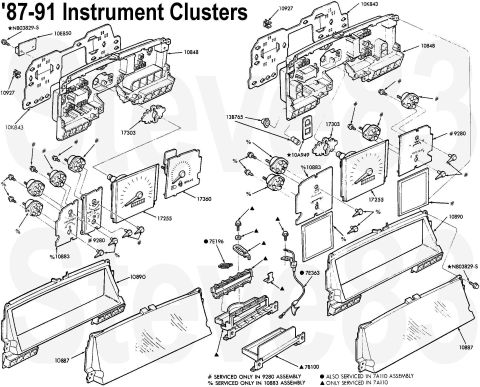

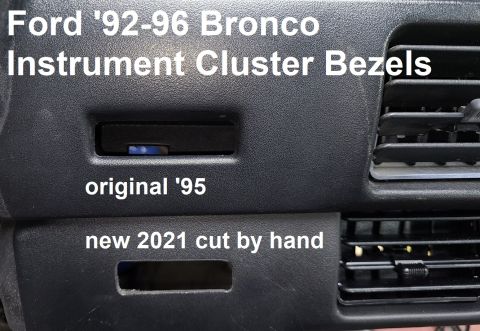

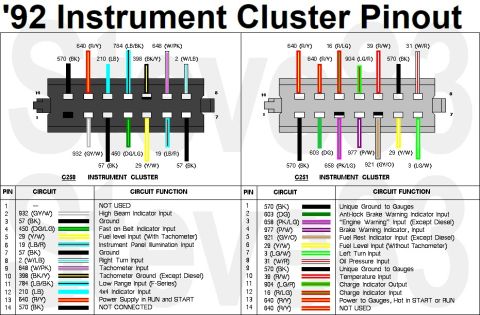

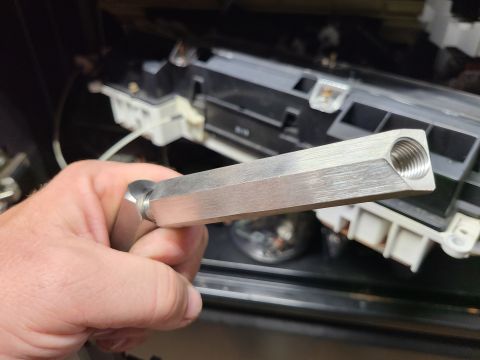

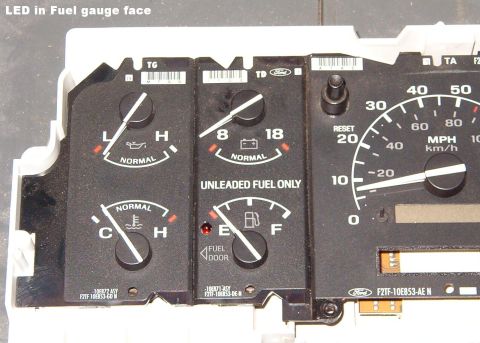

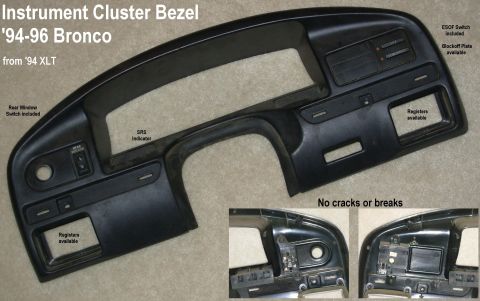

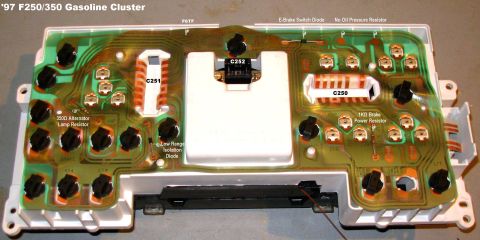

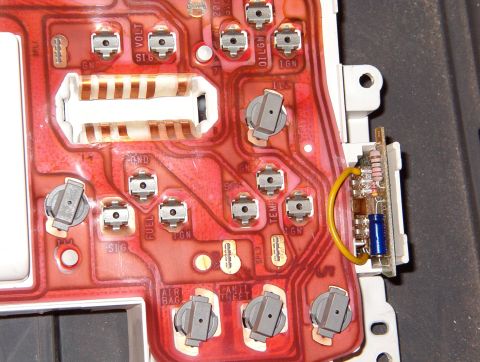

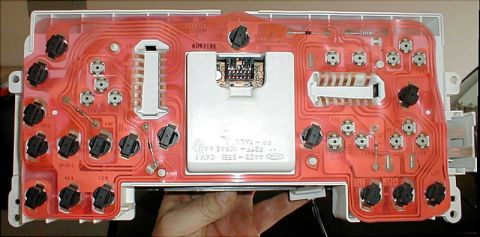

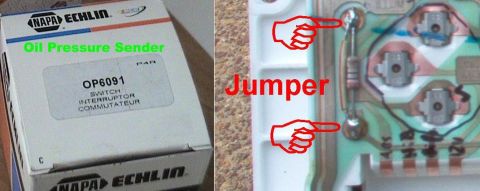

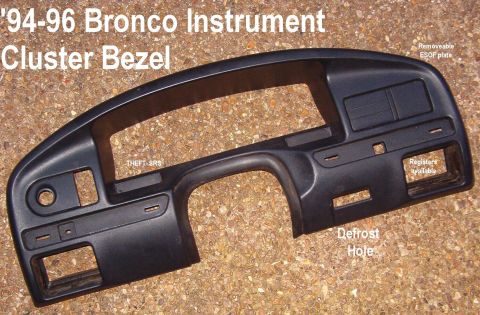

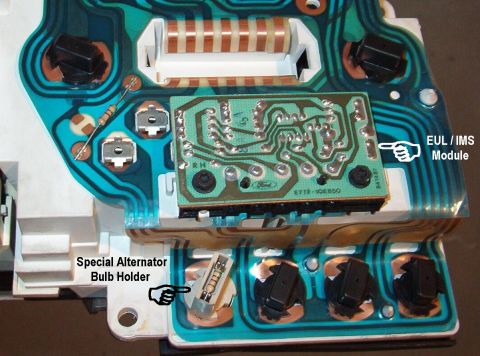

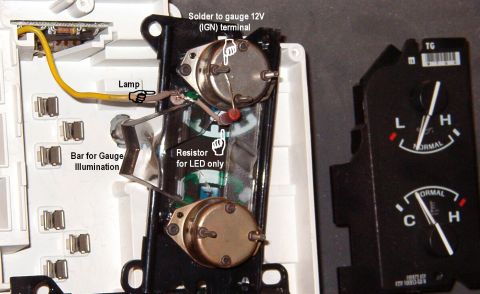

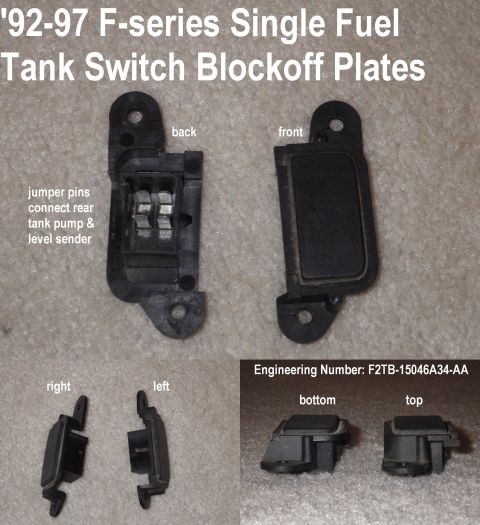

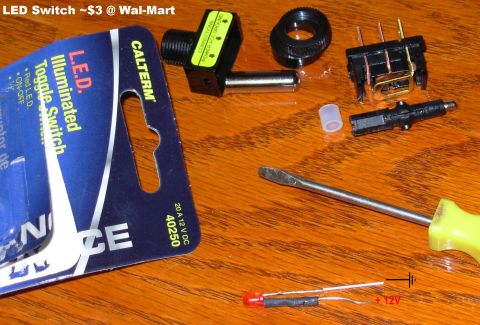

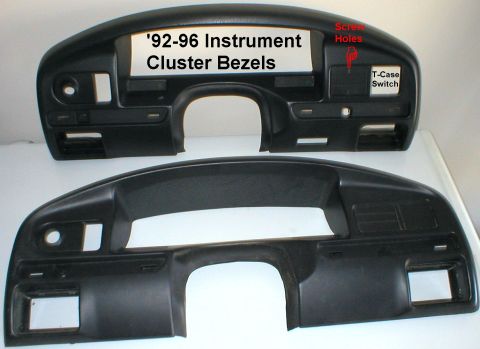

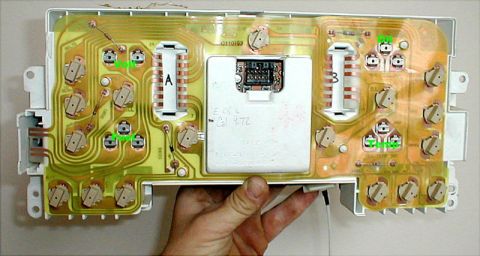

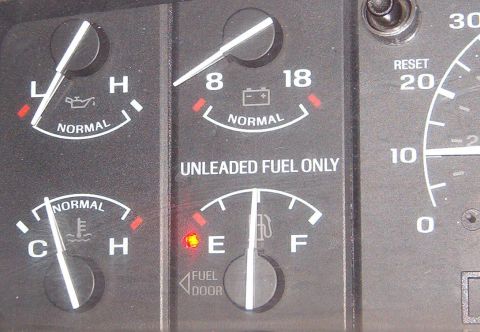

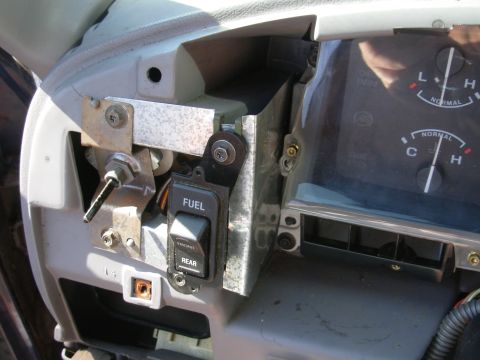

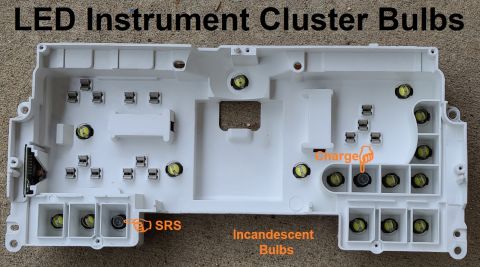

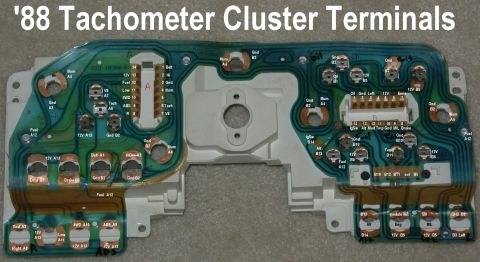

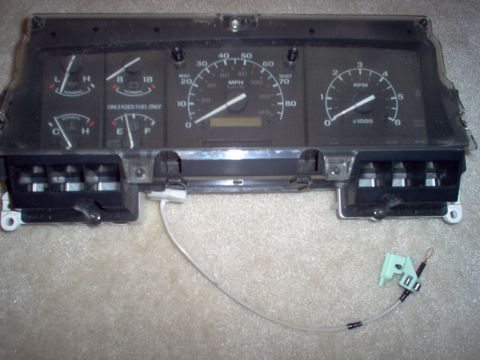

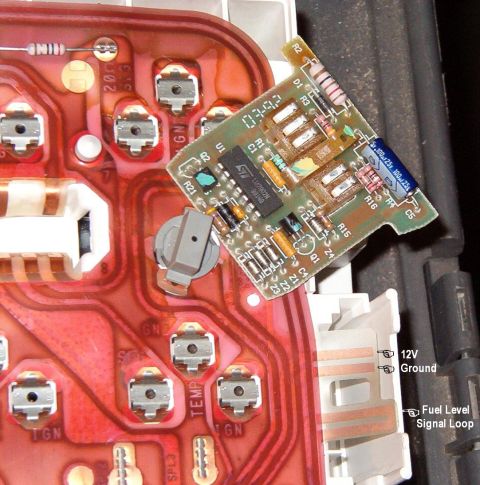

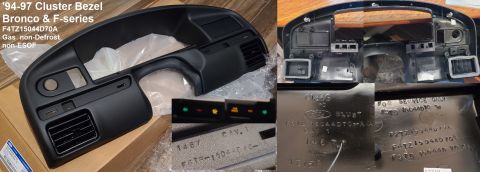

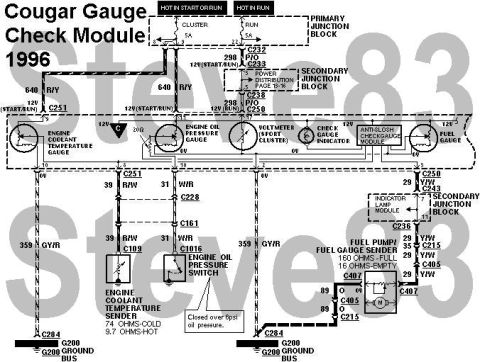

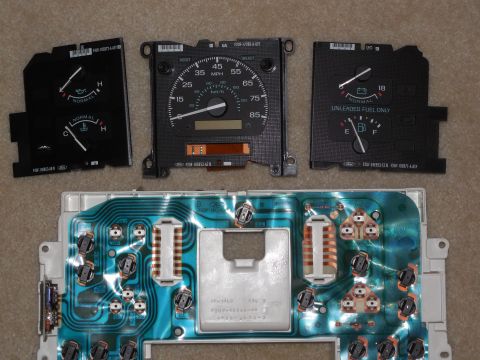

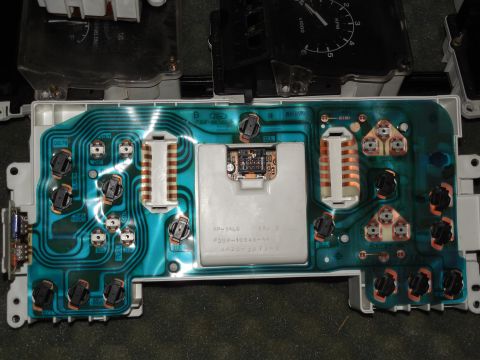

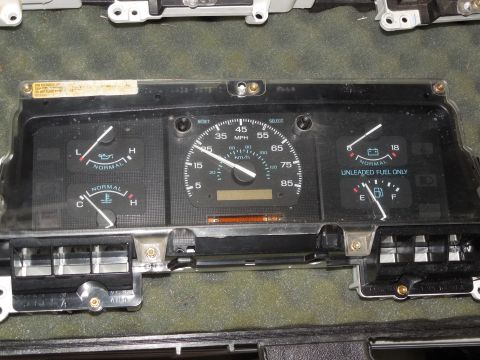

1983 Ford Bronco - '92-97 Warning Indicators IF THE IMAGE IS TOO SMALL, click it. To access the cluster, see: [url=https://www.supermotors.net/registry/media/… 1983 Ford Bronco - '92-96 (& '97 over 8500GVWR) Instrument Cluster Parts IF THE IMAGE IS TOO SMALL, click it. For functional details, see the PREVious caption… 1983 Ford Bronco - Lightning Instrument Cluster with specific Speedometer (PSOM) & tachometer. 1983 Ford Bronco - '87-91 Instrument Clusters ('92-97 similar) The non-tach speedo face is larger than the tach-speedo face, so they're not as easily swapped… 1983 Ford Bronco - '87-91 Tach Cluster Parts IF THE IMAGE IS TOO SMALL, click it. The '87-91 cluster is built very much like the '92-96, which makes it much e… 1983 Ford Bronco - White Shift Indicator Tubes are noticeably more fragile than the later black ones. Be extremely careful when R&Ring the cluster because rep… 1983 Ford Bronco - '92-up Crown Vic clusters (and probably MANY others) have a factory 5-terminal "anti-slosh module" inserted in the back which doe… 1983 Ford Bronco - Removing the module is simple - just press the lock in the center & slide it straight out. The wiper contacts on the PC board touch the bar… 1983 Ford Bronco - Although no (complete) truck was built with an anti-slosh module installed, their clusters were designed for it. Note the slot in the plast… 1983 Ford Bronco - With more effort, this Gauge-Check module can be wired in externally to an '87-96 cluster. In addition to the 5 terminals on the smaller An… 1983 Ford Bronco - '96 Cougar Gauge Check Module IF THE IMAGE IS TOO SMALL, click it. This module is an expanded version of the Anti-Slosh Module; it also tur… 1983 Ford Bronco - The truck cluster is ready to have the module with only 3 modifications: 1) the sender loop, which extends past the rest of this flap, can… 1983 Ford Bronco - On single-tank applications or when the anti-slosh delay is desired, cut the loop open so the traces are even with the rest of the flap. IF… 1983 Ford Bronco - This is how it should look if the anti-slosh functionality is desired. Note that the wiper near "R3" on the PC board is the outpu… 1983 Ford Bronco - The module slides down & locks in place. IF THE IMAGE IS TOO SMALL, click it. The power feed for the module comes out to the lower L termin… 1983 Ford Bronco - '92 Instrument Cluster Connector Pinouts IF THE IMAGE IS TOO SMALL, click it. 1983 Ford Bronco - '95 Gasoline Instrument Cluster Connector Pinouts IF THE IMAGE IS TOO SMALL, click it. See also: [url=https://www.supermotors.net/registry/… 1983 Ford Bronco - One way to power the anti-slosh module in a tach cluster is to add a [url=https://www.clipsandfasteners.com/Ford-OEM-Female-Terminal-20-18-… 1983 Ford Bronco - This LED switch is about $3 at Wal-Mart and it's built with the correct resistor (inside the heat-shrink). To get the LED out, grab the sil… 1983 Ford Bronco - The light can be placed anywhere you like. I chose the lower L end of the fuel level scale on the gauge face since it's intuitive. I drille… 1983 Ford Bronco - It almost looks stock. To reduce the amount of light going in from the front, I used a black permanent marker to dull the face of the LED,… 1983 Ford Bronco - With its tip tinned & flattened, the wire pushes into the uppermost wiper terminal on the module easily. IF THE IMAGE IS TOO SMALL, click i… 1983 Ford Bronco - The cluster is ready to install, without any modification to the rest of the truck. If it ever gets replaced with an unmodified cluster, th… 1983 Ford Bronco - When off, the black marker on the surface helps it blend with the gauge face. It could have been positioned inside the fuel pump icon below… 1983 Ford Bronco - When on, the light is hard to miss, but not too distracting. It can also be positioned behind the fuel pump icon with no drilling which mak… 1983 Ford Bronco - When on, the light is hard to miss, but not too distracting. IF THE IMAGE IS TOO SMALL, click it. The 7 gold screws (7/32" or 5.5mm he… 1983 Ford Bronco - Low Fuel Light installation in a '92-96 Base Cluster (Non-Tachometer) IF THE IMAGE IS TOO SMALL, click it. The LED's positive wire is strip… 1983 Ford Bronco - Oil Pressure Sender (Ford EOAZ9278A/MotorCraft SW1547B ,SW873B, Standard PS60 , NAPA OP6091, BWD S334) IF THE IMAGE IS TOO SMALL, click it.… 1983 Ford Bronco - Oil Pressure Switch to Sender IF THE IMAGE IS TOO SMALL, click it. Swapping from a factory oil pressure switch to a factory-style sender ca… 1983 Ford Bronco - EMW / IMS Module (see the application chart in the TSB below) Certain diesels use a different warning module here. IF THE IMAGE IS TOO SMAL… 1983 Ford Bronco - '87-91 Low Fuel Light IF THE IMAGE IS TOO SMALL, click it. This is one way to add the anti-slosh module & an LED to a cluster without the m… 1983 Ford Bronco - Instrument Cluster with Tachometer 1992-96 & '97 >8500GVWR IF THE IMAGE IS TOO SMALL, click it. Oddly, this cluster has a white shift indic… 1983 Ford Bronco - '87-91 Tach Cluster Terminals IF THE IMAGE IS TOO SMALL, click it. For fuel level problems, try polishing the film circuit contacts (A & B… 1983 Ford Bronco - 97 HD Cluster IF THE IMAGE IS TOO SMALL, click it. Note the lack of a resistor for the oil pressure gauge. Modifying this cluster to show t… 1983 Ford Bronco - Instrument cluster ('94-96) film circuit with tachometer IF THE IMAGE IS TOO SMALL, click it. The recessed black connector in the middle is… 1983 Ford Bronco - Instrument cluster ('92-96) film circuit without tachometer IF THE IMAGE IS TOO SMALL, click it. The recessed black connector in the middle… 1983 Ford Bronco - Instrument Cluster Shells for '92-96 fullsize trucks IF THE IMAGE IS TOO SMALL, click it. [url=https://www.supermotors.net/registry/media/1… 1983 Ford Bronco - Because some circuits rely on the low resistance through original-type incandescent bulbs, they won't work right with the extremely-high re… 1983 Ford Bronco - '92-96 Cluster Bezel Repairs It's common for the clips across the top snap off their mounting posts, but the posts are hollow, so it's fair… 1983 Ford Bronco - '92-96 Dash Switch Repair It's becoming more common for the F-series tank switch or Bronco rear window switch to break loose from the back… 1983 Ford Bronco - Another '87-91 Low Fuel Light mod; this time with most of the connections on the back of the gauge. IF THE IMAGE IS TOO SMALL, click it. Th… 1983 Ford Bronco - PRESOLD Wood Dash Trim for '87-91 Lower left panel is for Bronco only. Pocket for lower right panel is included. [url=https://www.clipsandf… 1983 Ford Bronco - This new chinese cluster bezel is about half the price of the Ford parts ( F2TZ-15044D70-A , F4TZ-15044D70-A ), which are hard to find, and… 1983 Ford Bronco - Instrument Cluster Bezel comparison between an original '92 F250 gas 2WD bezel (bottom), a new Ford '92-93 Instrument Cluster Bezel (F4TZ-1… 1983 Ford Bronco - SOLD 92-96 Instrument Cluster Bezels Upper one (F2TZ98044D70A) has holes for ESOF & rear defrost switch. Lower one (F2TZ15044D70A) has no h… 1983 Ford Bronco - SOLD '92-96 Bronco Instrument Cluster Bezel (F2TZ98044D70A) for rear defrost & ESOF, includes rear window switch [url=http://www.supermotor… 1983 Ford Bronco - SOLD '94-96 Bronco Instrument Cluster Bezel REPAIRED Theft & SRS indicators below the cluster to the L of the column are for '94-96 only. T… 1983 Ford Bronco - New Ford '94-97 Instrument Cluster Bezel (F4TZ-15044D70-A) details Like original '94-96 bezels, it lacks the 2 flat clips near the bottom c… 1983 Ford Bronco - SOLD '94-96 Cluster w/Low Fuel Light & Oil Pressure Jumper Swapping this cluster into a '94-96 gasoline F-series or Bronco will instantly g… 1983 Ford Bronco - Tach Clusters SOLD '96 has 107207.8 miles calibrated to 9.67 with 6 lockouts left (E 08 6, 967CAL). SOLD '94 has 292981.2 miles calibrated… 1983 Ford Bronco - SOLD '94-96 Tachometer Cluster PSOM can be deleted or swapped for different mileage Plug-N-Play for '94-96 ('97 over 8500GVWR) gasoline tru… 1983 Ford Bronco - SOLD 92 F150 4WD automatic instrument cluster w/tach fits '92-93 F150 & Bronco Shift indicator cable has been upgraded to the later black,… 1983 Ford Bronco - SOLD Tach Cluster from '92 F150 Fits all '92-93 Bronco & F-series (gas) The broken shift indicator has been replaced. [url=http://www.super… 1983 Ford Bronco - SOLD Tachometer for '87-91 not tested Fits only in clusters originally equipped with a tach. [url=http://www.supermotors.net/registry/media… 1983 Ford Bronco - ~'95 E-series cluster 1983 Ford Bronco - ~'95 E-series cluster 1983 Ford Bronco - ~'95 E-series cluster 1983 Ford Bronco - ~'95 E-series cluster 1983 Ford Bronco - SOLD '94-96 Bronco Instrument Cluster Bezel PERFECT No cracks or breaks. Available with or WITHOUT window & ESOF switches. Defrost switch,… 1983 Ford Bronco - Factory Tank Select Switch Blockoff Plates for '92-96 (& '97 >8500GVWR) F-series with Single Fuel Tank (F2TZ15046A34A) SOLD one See also: [… 1983 Ford Bronco - Instrument Cluster Bezel IF THE IMAGE IS TOO SMALL, click it. Bronco-specific bezels with the defrost button slot are not currently availab… 1983 Ford Bronco - Defrost Slot Cut by Hand IF THE IMAGE IS TOO SMALL, click it. [url=https://www.supermotors.net/registry/media/1172107] https://www.supermot… 1983 Ford Bronco - Instrument Cluster Cleaning IF THE IMAGE IS TOO SMALL, click it. The hardest parts of cleaning the instrument cluster might be getting the… 1983 Ford Bronco - At this age, it's very common for the glue holding the faces on to become brittle and just let go. That then allows the faces to slide down… 1983 Ford Bronco - Oil Pressure Port Connectors IF THE IMAGE IS TOO SMALL, click it. These aftermarket SS extensions allow an old-style pressure sender to be…
