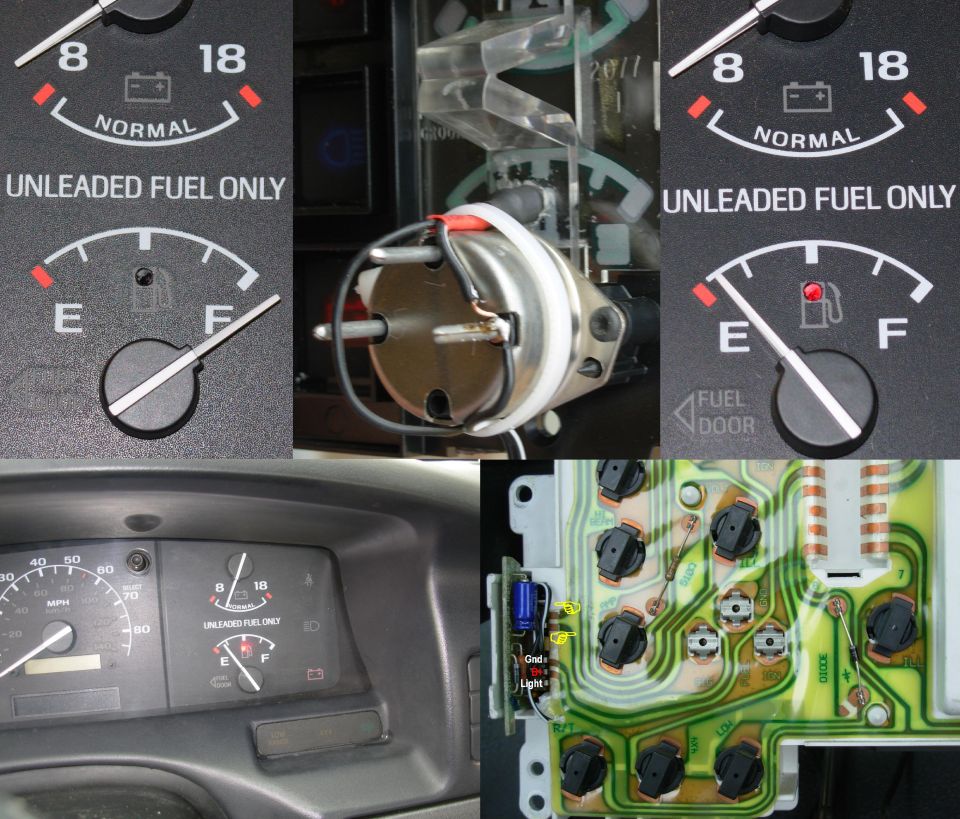

Low Fuel Light installation in a '92-96 Base Cluster (Non-Tachometer)
IF THE IMAGE IS TOO SMALL, click it.
The LED's positive wire is stripped & soldered to the gauge's 12V pin. But it's not CUT there, and it wraps around to feed the module, too. The LED's negative wire goes to the appropriate terminal on the module.
