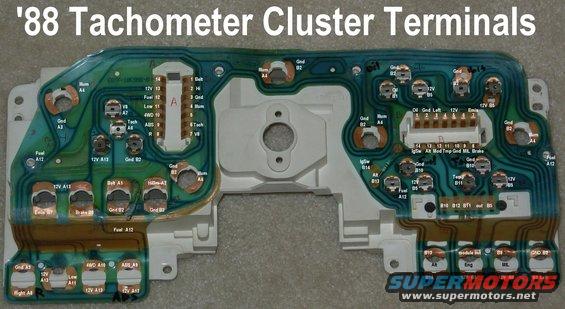

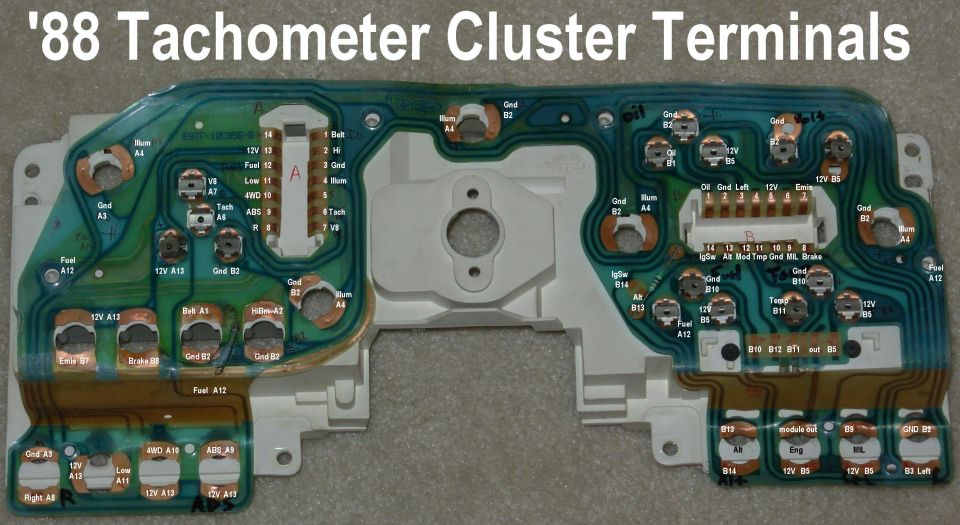

'88 tachometer cluster printed circuit terminals labeled diagram

'87-91 Tach Cluster Terminals
IF THE IMAGE IS TOO SMALL, click it.

For fuel level problems, try polishing the film circuit contacts (A & B 1-14) with brown paper or a pink eraser, especially those related to the fuel gauge. Be careful NOT to peel the copper strips off the mylar film.

A1 - Seat Belt - DG/LG
A2 - Hi Beam - LG/Bk
A3 - Ground - Bk
A4 - Illumination - LB/R
A5 - unused
A6 - Tachometer - DG/Y
A7 - V8 ground - Bk/Y
A8 - R Turn - Wh/LB
A9 - ABS - DG
A10 - 4WD - LB
A11 - Low Range - LB/Bk
A12 - Fuel - Y/Wh
A13 - Gauges & Warning Lights Power - R/Y
A14 - unused
B1 - Oil - Wh/R
B2 - Ground - Bk
B3 - L Turn - LG/Wh
B4 - unused
B5 - Gauges & Warning Lights Power - R/Y
B6 - unused
B7 - Emissions - Bk/LB?
B8 - Brake - Pu/Wh
B9 - CEL - Pk/LG
B10 - Ground - Bk
B11 - Temperature - R/WH
B12 - IMS/EUL - Wh/R?
B13 - Charge - LG/R
B14 - Ig.Sw. - R/LG

. .
