'94 Powertrain Manual

From 1996 Ford Bronco, documented by Mikey350.

9 photos
← Back to this vehicle

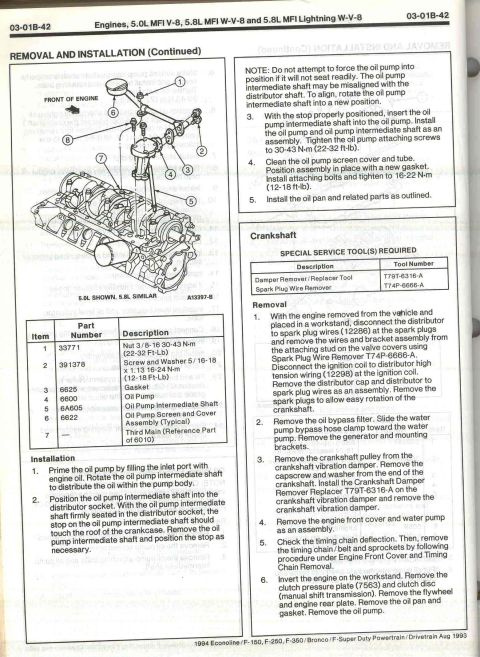

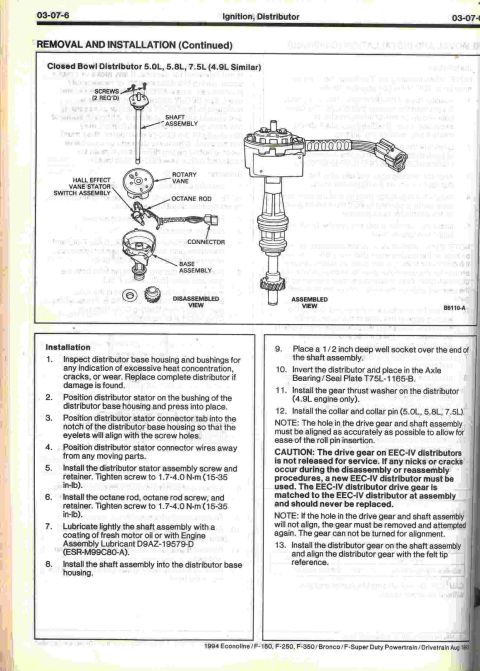

1996 Ford Bronco - VIN ID 8 1996 Ford Bronco - Ford shop-manual page (03-01B-42) for 5.0L/5.8L MFI V8: oil pump install torque 30-43 N-m (22-32 ft-lb), screen cover 16-22 N-m (12-18 ft-l… 1996 Ford Bronco - 5.8 External Engine - 1 1996 Ford Bronco - 5.8 External Engine - 2 1996 Ford Bronco - Scanned shop manual page 03-01B-64 for "Engines, 5.0L MFI V-8, 5.8L MFI W-V-8 and 5.8L MFI Lightning W-V-8," showing Removal and Installati… 1996 Ford Bronco - Ford manual page 03-07-5 distributor removal/installation: set No.1 piston at TDC compression, lube gear with D9AZ-19579D, inspect O-ring;… 1996 Ford Bronco - Distributor removal and installation procedure with disassembled and assembled views and numbered installation steps. 1996 Ford Bronco - Distributor removal and installation procedure with a figure and numbered steps for setting gear depth and tightening armature screws. 1996 Ford Bronco - Transfer case description-and-operation manual page with a 4-Low power-flow cutaway and electronic shift operation text.
