1994 Ford Bronco/F-150 5.0L/5.8L Oil Pump Install & Crankshaft Removal 03-01B-42

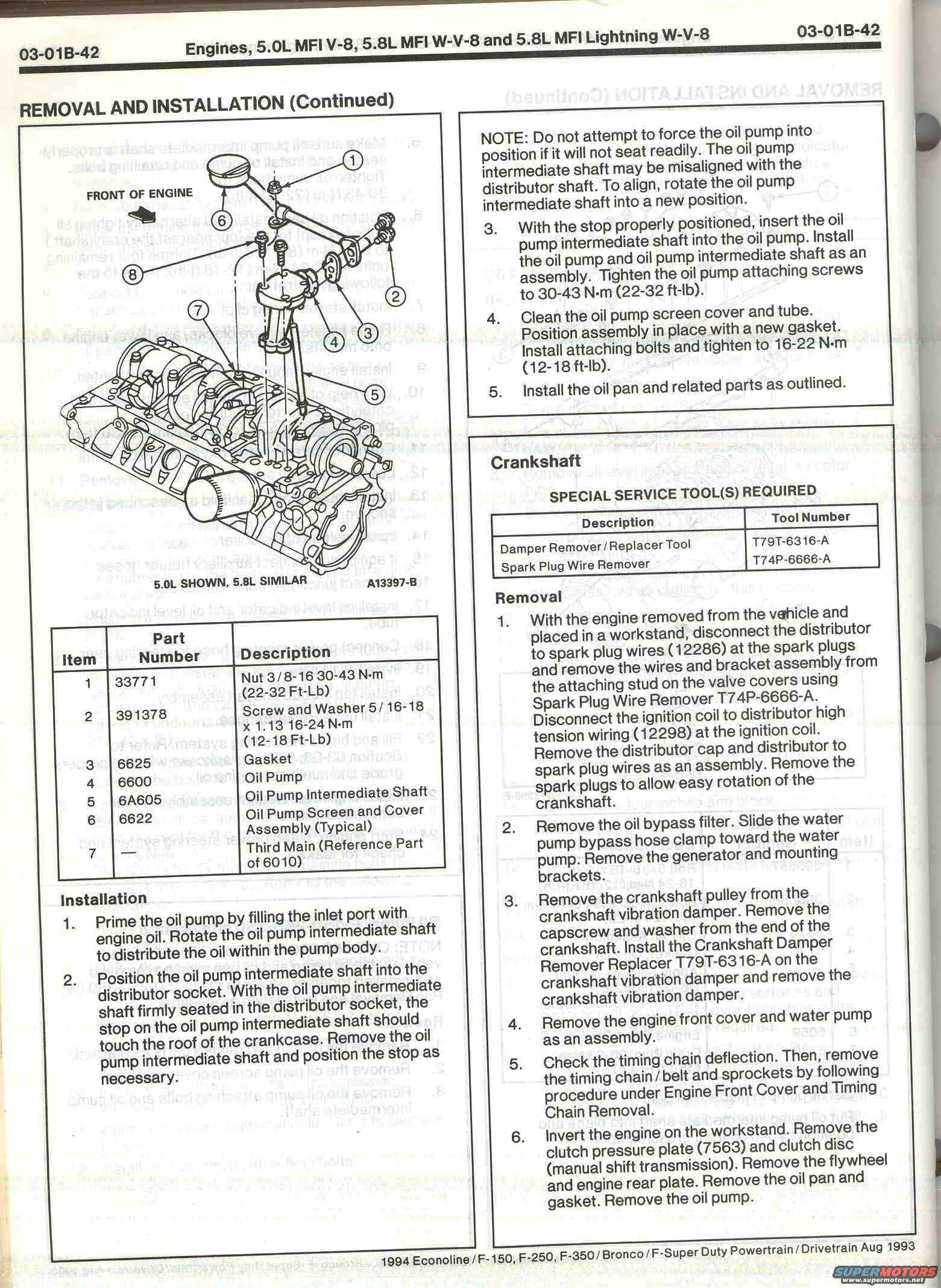

This is page 03-01B-42 from the 1994 Ford Econoline / F-150, F-250, F-350 / Bronco / F-Super Duty Powertrain/Drivetrain manual (dated Aug 1993), covering the 5.0L MFI V-8, 5.8L MFI W-V-8, and 5.8L MFI Lightning W-V-8 engines. It continues the Removal and Installation section with an exploded diagram of the oil pump area (5.0L shown, 5.8L similar, figure A13397-B) and a parts legend listing the nut (33771), screw and washer (391378), gasket (6625), oil pump (6600), oil pump intermediate shaft (6A605), and oil pump screen and cover assembly (6622). Oil pump installation steps include priming the pump, seating the intermediate shaft in the distributor socket, tightening pump attaching screws to 30-43 N·m (22-32 ft-lb), and tightening the screen cover/tube bolts to 16-22 N·m (12-18 ft-lb), with a caution not to force a misaligned pump. The page then begins the Crankshaft removal procedure, listing required special tools (Damper Remover/Replacer T79T-6316-A and Spark Plug Wire Remover T74P-6666-A) and six removal steps covering spark plug wires, oil bypass filter, generator, crankshaft pulley and vibration damper, front cover/water pump, timing chain, clutch, flywheel, oil pan, and oil pump.
