What is the torque spec for the distributor hold-down bolt on a 1994 Ford Bronco/F-Series?

Without moving the timing adjustment, tighten the distributor hold-down bolt and clamp to 23-34 N·m (17-25 ft-lb). Distributor cap hold-down screws are tightened to 2.0-2.6 N·m (18-23 in-lb).

Where should the No. 1 piston be when installing the distributor?

The No. 1 piston must be at TDC (top dead center) of the compression stroke when installing the distributor.

Can the drive gear on an EEC-IV distributor be replaced?

No. The drive gear on EEC-IV distributors is not released for service and is matched to the distributor at assembly. If it is nicked, cracked, damaged, or excessively worn, a new EEC-IV distributor must be used.

What special tools are needed to remove the distributor gear/stator?

Axle Bearing/Seal Plate T75L-1165-B and Pinion Bearing Cone Remover D79L-4621-A or equivalent. An arbor press is also required, do not attempt to replace the stator without one.

What lubricant should be used on the distributor gear teeth?

Coat the distributor gear teeth with fresh motor oil or Engine Assembly Lubricant D9AZ-19579-D (ESR-M99C80-A).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1031647

1994 Ford Bronco/F-150-F-350 Distributor Installation & Stator Removal 03-07-5

Ford EEC-IV distributor removal and installation procedure, 1994 Econoline/F-150/F-250/F-350

‹ ›

Reference · 1992-1996 BroncoAll 142 service procedures

1994 Ford Bronco/F-150 Rear Drum Brake Diagram & Parts List - 06-02-9

Rear drum brake adjuster screw and shoe adjusting lever kit procedure with exploded diagram H4964-C

1994 Ford Bronco/F-150 Distributor Installation - 5.0L 5.8L 7.5L Closed Bowl

1994 Ford Bronco/F-150-F-350 Distributor Installation & Stator Removal 03-07-5

1994 Ford Distributor Gear & Armature Installation - Steps 14-19 (03-07-7)

Ford EEC-IV Output State Check & Cylinder Balance Test - Equus 3145 Code Reader

1996 Ford Bronco/F-150 Cowl Top Vent Panel Installation - Parts & Torque Specs

Shop manual page 03-01B-64 roller and non-roller hydraulic tappet cutaways with numbered parts lists

Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EA

Parasitic Battery Draw Test Procedure - Checking for Unwanted Draw (Wilson)

Ford Vacuum System Troubleshooting Steps & Tests - Supply, Leak, Component (EVTM)

1996 Ford Bronco Vacuum System Troubleshooting - Supply, Leak & Component Tests

142service procedures1992-1996 Ford Bronco More reference

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

Wiring diagram

Exploded parts

Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16

Spec plate

Manual page

Ford 5.0L / 5.8L HO Firing Order Diagram - Spark Plug Wire Routing & Timing

Schematic

Brochure

1996 Ford Bronco/F-150 Overhead Console Compass Temp Display Connector Pinout

Fuse chart

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

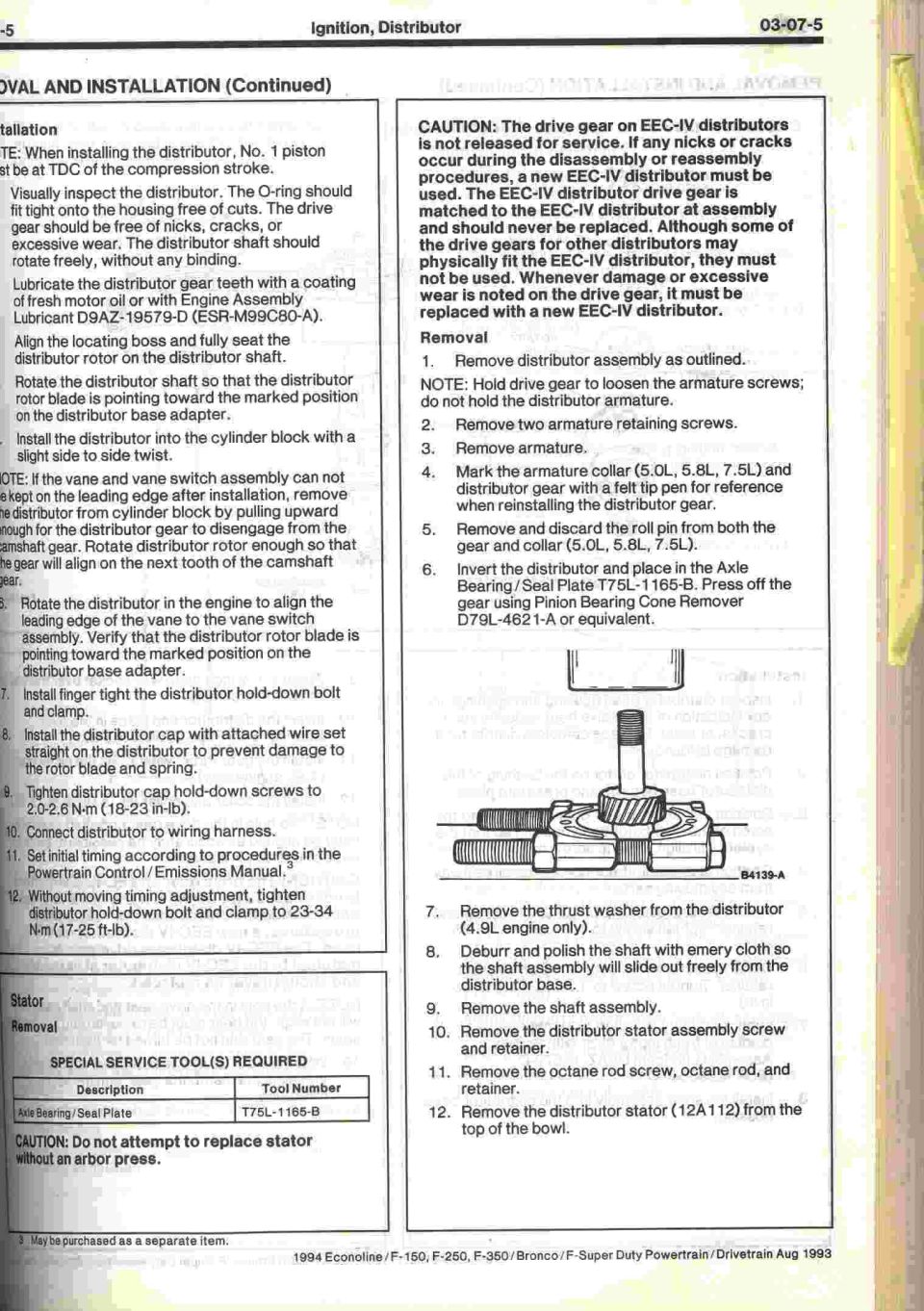

Ford manual page 03-07-5 distributor removal/installation: set No.1 piston at TDC compression, lube gear with D9AZ-19579D, inspect O-ring; EEC-IV distributor not serviceable, replace if drive gear nicked.

Part of 1992-1996 Ford Bronco Service Procedures

AI caption August 2014 · Photo 231 of 409

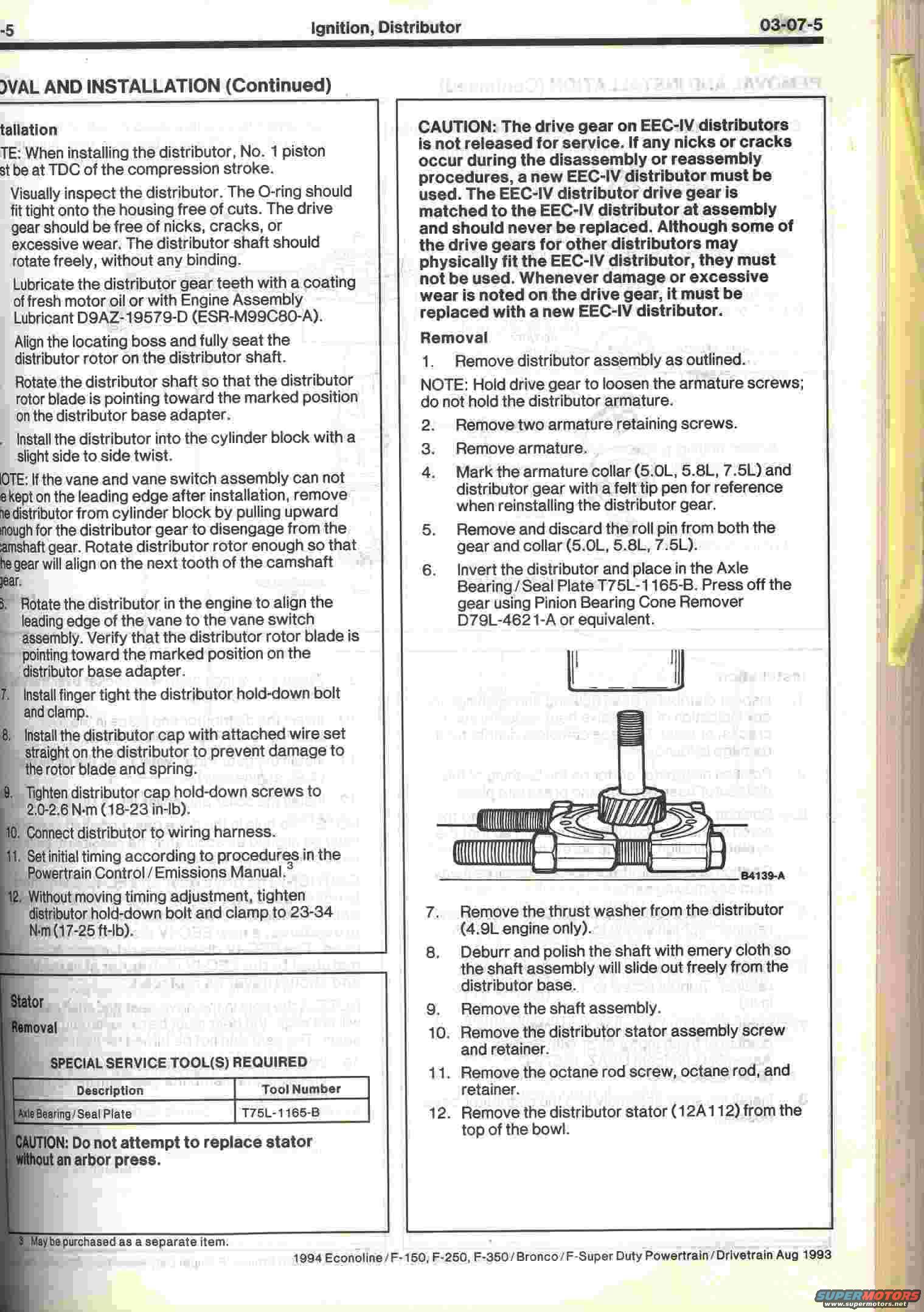

This is page 03-07-5 from the 1994 Ford Powertrain/Drivetrain service manual (dated Aug 1993) covering Econoline, F-150, F-250, F-350, Bronco, and F-Super Duty. The page continues the Ignition, Distributor 'Removal and Installation' section. The left column details a 12-step distributor installation procedure, including verifying the No. 1 piston is at TDC of the compression stroke, inspecting the O-ring and drive gear, lubricating gear teeth with Engine Assembly Lubricant D9AZ-19579-D (ESR-M99C80-A), aligning the rotor with the marked position, and torque specs: distributor cap hold-down screws 2.0-2.6 N·m (18-23 in-lb) and hold-down bolt/clamp 23-34 N·m (17-25 ft-lb) after timing is set. The right column begins the Stator Removal procedure, with a CAUTION that the EEC-IV distributor drive gear is not serviceable, a new EEC-IV distributor must be used if the gear is damaged. Twelve removal steps cover armature, roll pin, and gear removal using Axle Bearing/Seal Plate T75L-1165-B and Pinion Bearing Cone Remover D79L-4621-A, plus notes specific to 5.0L, 5.8L, 7.5L collars and the 4.9L thrust washer. An illustration (B4139-A) shows pressing the gear off the shaft.
