'94 Emissions Manual

From 1996 Ford Bronco, documented by Mikey350.

8 photos
← Back to this vehicle

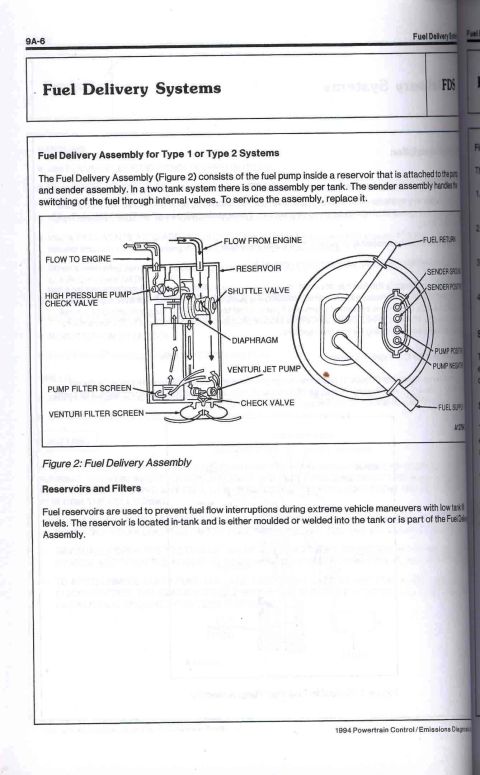

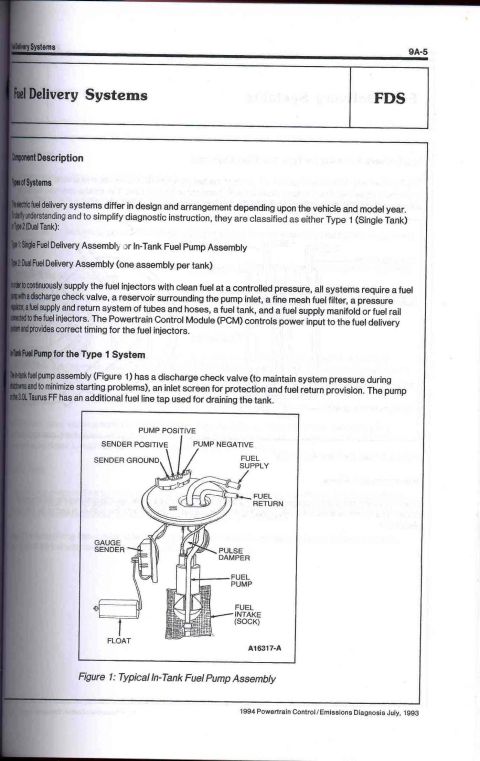

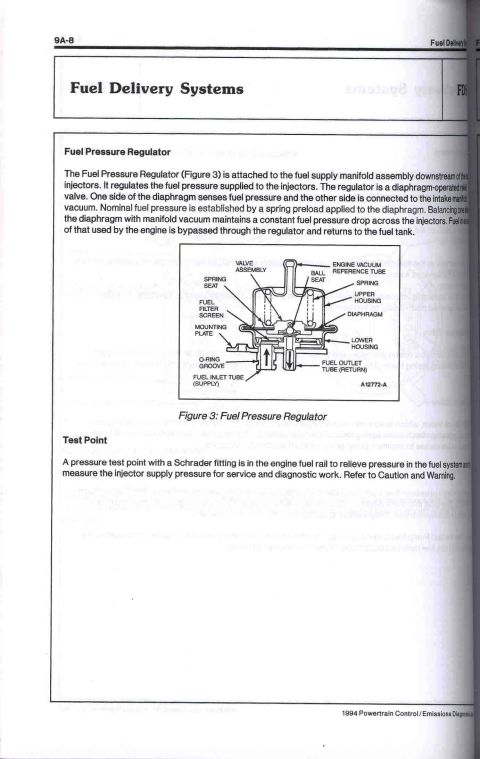

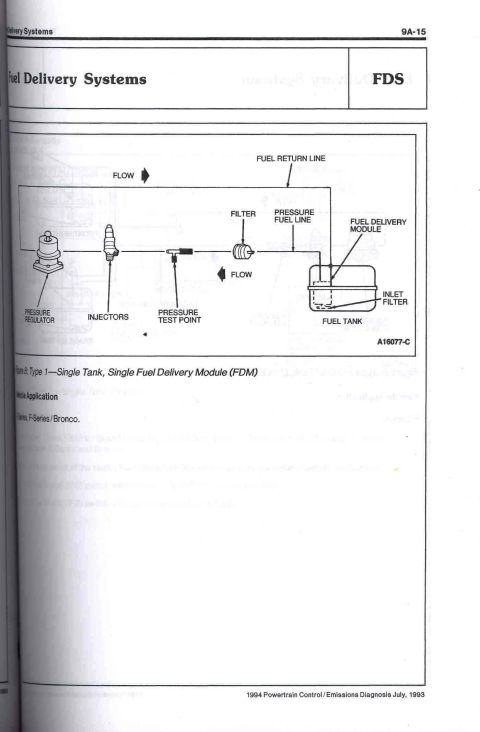

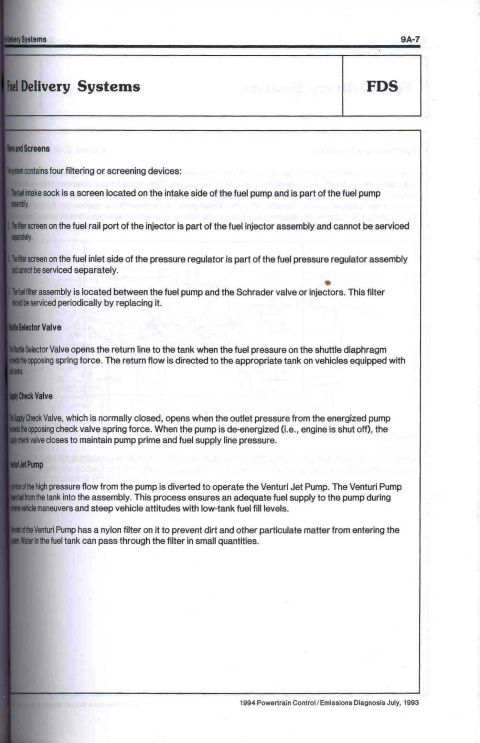

1996 Ford Bronco - Service manual page describing fuel delivery system types with a labeled figure of a typical in-tank fuel pump assembly. 1996 Ford Bronco - Service manual page on the Type 1/2 fuel delivery assembly with a labeled cutaway figure and reservoirs/filters description. 1996 Ford Bronco - Scanned service manual page 9A-7 headed "Fuel Delivery Systems / FDS," with text sections on Filters and Screens, Shuttle Selector Valve, S… 1996 Ford Bronco - Fuel delivery page: cutaway of the diaphragm-type fuel pressure regulator showing spring, diaphragm, vacuum reference and supply/return tub… 1996 Ford Bronco - Schematic of a single-tank fuel delivery module showing flow through the regulator, injectors, filter and fuel tank. 1996 Ford Bronco - EGR system page describing the EVR solenoid (9J459): PCM duty-cycle controls vacuum to the EGR valve; cutaway shows thermistor, EGR-valve a… 1996 Ford Bronco - Ford EGR system functional diagnosis chart (page 10A-13): step-by-step pinpoint tests for vacuum integrity, EGR vacuum at idle ( 1996 Ford Bronco - This is a document titled "APPENDIX: Diagnostic Reference Values" which contains tables of sensor and actuator data for the F-Series and ot…
