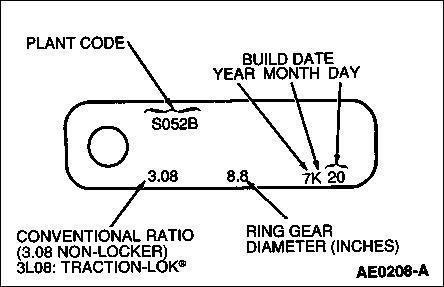

1984(Oct)-up Ford Axle Tag Coding

S=Sterling plant
V=Van Dyke plant
3 Numbers indicate vehicle line...
Hits: 13613
Size: 24.57 KB
Posted: 1/14/05
1984(Oct)-up Ford Axle Tag Coding S=Sterling plant V=Van Dyke plant 3 Numbers indicate vehicle line...

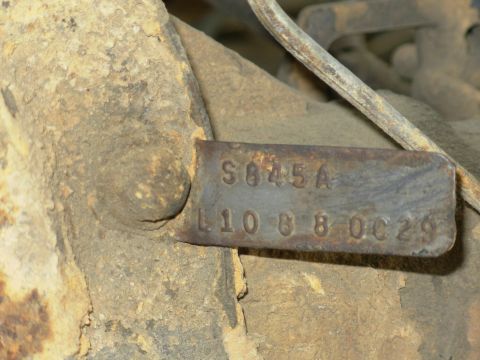

'90 F150 Ford8.8 Tag
The "4" at the Left end of the 2nd line is obscured by dirt around th...
Hits: 955
Size: 91.03 KB
Posted: 1/9/15
'90 F150 Ford8.8 Tag The "4" at the Left end of the 2nd line is obscured by dirt around th...

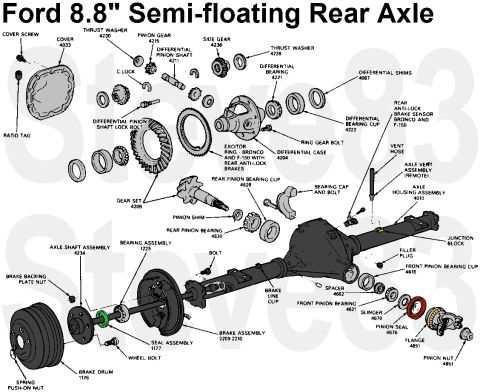

8.8" Axle Exploded, with open differential
IF THE IMAGE IS TOO SMALL, click it.
Early version...
Hits: 20
Size: 70.56 KB
Posted: 1/30/24
8.8" Axle Exploded, with open differential IF THE IMAGE IS TOO SMALL, click it. Early version...

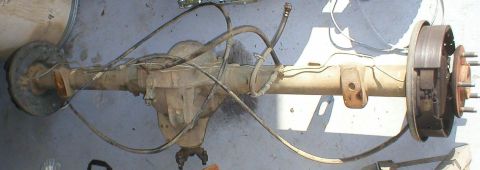

SOLD '96 8.8" 3.55 open diff complete hub-to-hub never opened, tested.
Hits: 4109
Size: 33.23 KB
Posted: 7/10/03
SOLD '96 8.8" 3.55 open diff complete hub-to-hub never opened, tested.

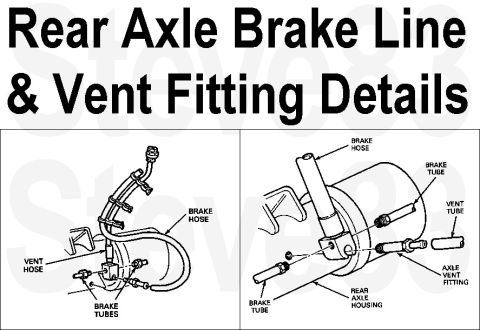

Axle vent at brake hose Tee F2TA-2282-BD equivalent to F2TZ-2282-B, (w/clipped vent hose) F2UZ-2282-...
Hits: 588
Size: 50.77 KB
Posted: 9/17/20
Axle vent at brake hose Tee F2TA-2282-BD equivalent to F2TZ-2282-B, (w/clipped vent hose) F2UZ-2282-...

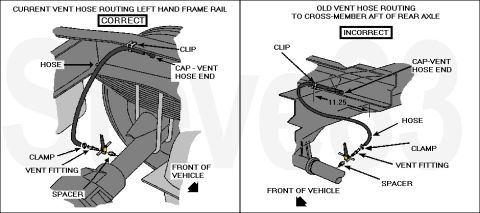

Revised vent hose routing for 8.8" & 10.25" axles. The "cap" allows air to pass, but block...
Hits: 21
Size: 36.23 KB
Posted: 1/30/24
Revised vent hose routing for 8.8" & 10.25" axles. The "cap" allows air to pass, but block...

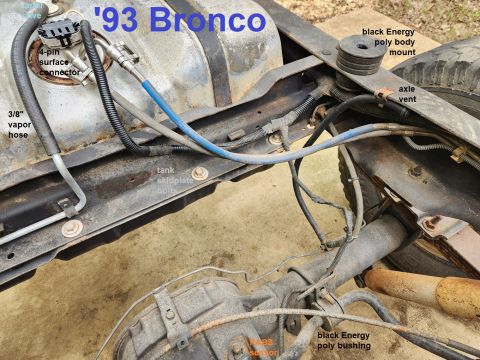

Axle Vent Hose Routing
IF THE IMAGE IS TOO SMALL, click it.

See also:
[url=https://www.supermot...
Hits: 23
Size: 98.08 KB
Posted: 2/18/24
Axle Vent Hose Routing IF THE IMAGE IS TOO SMALL, click it. See also: [url=https://www.supermot...

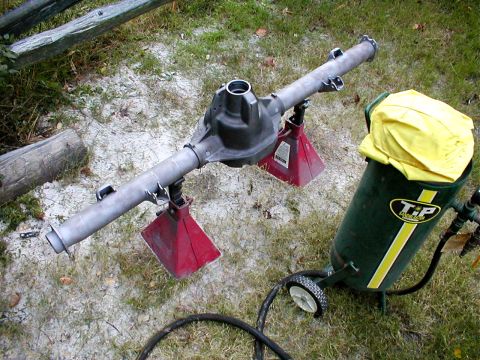

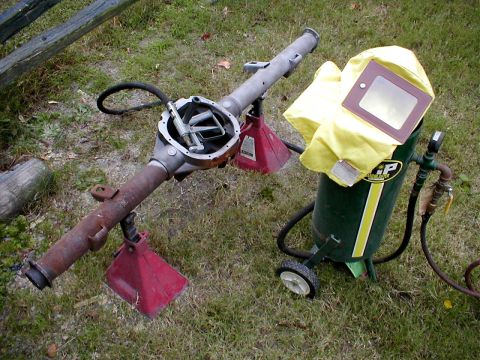

This axle had been burned, but not badly, so I gutted it & repaired a damaged shock mount, then clea...
Hits: 4569
Size: 120.93 KB
Posted: 7/21/03
This axle had been burned, but not badly, so I gutted it & repaired a damaged shock mount, then clea...
This axle had been burned, but not badly, so I gutted it & repaired a damaged shock mount, then clea...
Hits: 4682
Size: 126.21 KB
Posted: 7/21/03
This axle had been burned, but not badly, so I gutted it & repaired a damaged shock mount, then clea...

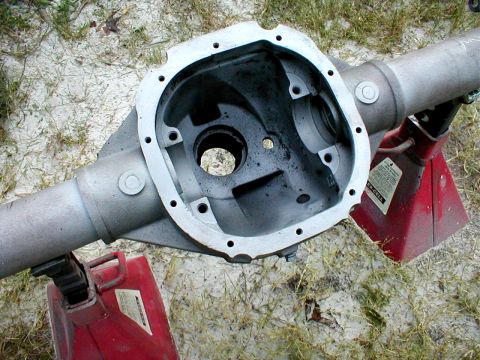

All clean!
Hits: 4319
Size: 113.16 KB
Posted: 7/21/03
All clean!

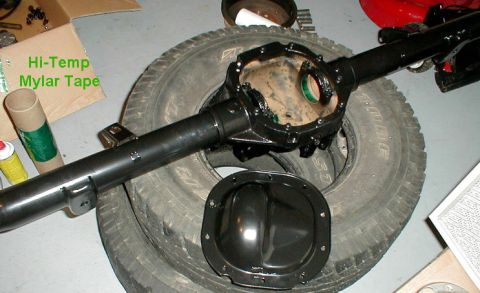

I have a friend in the powdercoating business, so I had him do the whole thing just because...  The ...
Hits: 5446
Size: 77.81 KB
Posted: 7/21/03
I have a friend in the powdercoating business, so I had him do the whole thing just because... The ...

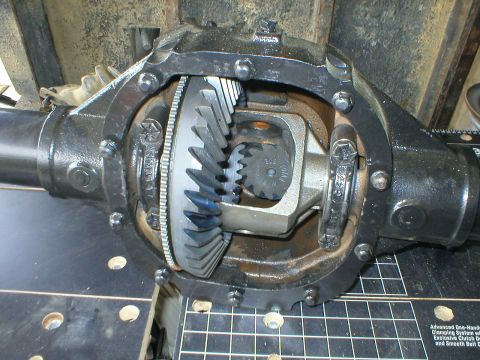

I paid a friend (pro) $100 to set up the gears for me.  This job requires several special tools, inc...
Hits: 5223
Size: 110.76 KB
Posted: 7/21/03
I paid a friend (pro) $100 to set up the gears for me. This job requires several special tools, inc...

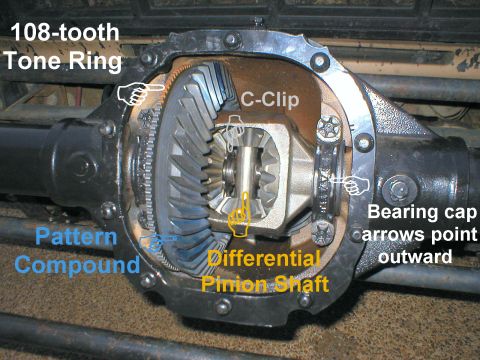

The guts of a common open differential.

For info about tone ring ([url=https://www.amazon.com/dp/B0...
Hits: 18271
Size: 114.91 KB
Posted: 7/21/03
The guts of a common open differential. For info about tone ring ([url=https://www.amazon.com/dp/B0...

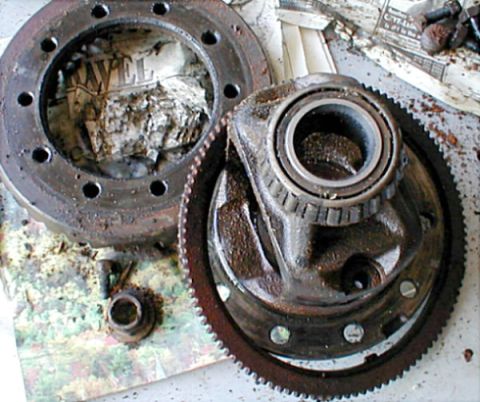

SOLD Differential carrier (open, empty) for Ford 8.8".
Hits: 4081
Size: 91.98 KB
Posted: 7/10/03
SOLD Differential carrier (open, empty) for Ford 8.8".

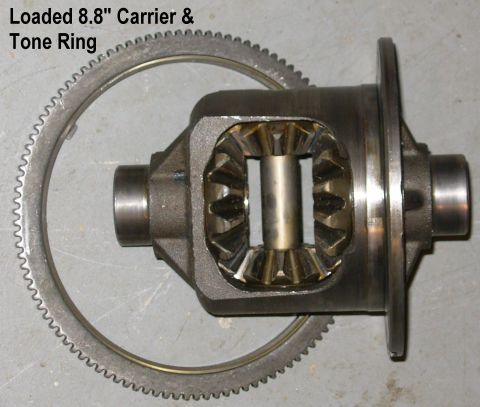

SOLD 8.8" Carrier & Tone Ring (E7TZ-4B409-B) from '02 Explorer IRS

Actual weight 15.4 lbs
Hits: 2731
Size: 59.06 KB
Posted: 9/8/08
SOLD 8.8" Carrier & Tone Ring (E7TZ-4B409-B) from '02 Explorer IRS Actual weight 15.4 lbs

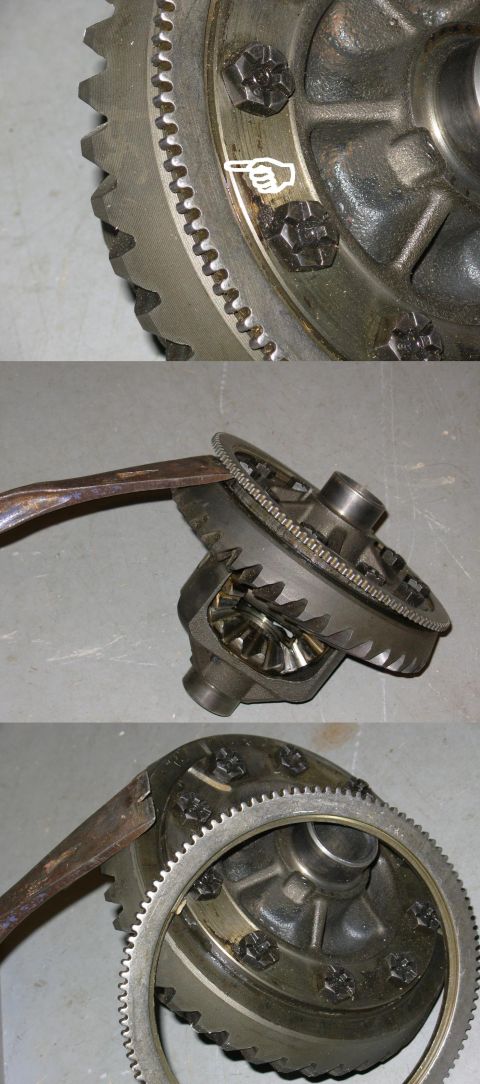

The tone ring ([url=https://www.amazon.com/dp/B000O0WZRC]E7TZ4B409B[/url]) can be removed & replaced...
Hits: 3894
Size: 40.24 KB
Posted: 9/8/08
The tone ring ([url=https://www.amazon.com/dp/B000O0WZRC]E7TZ4B409B[/url]) can be removed & replaced...

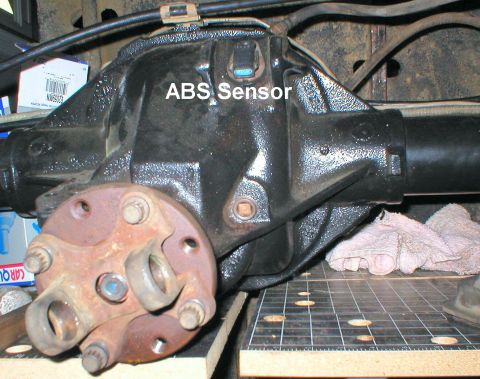

The '87-up [url=https://www.amazon.com/dp/B001H1MQFI]ABS sensor (DY1123, F85Z-9E731-AB)[/url] bolt i...
Hits: 18648
Size: 115.77 KB
Posted: 7/21/03
The '87-up [url=https://www.amazon.com/dp/B001H1MQFI]ABS sensor (DY1123, F85Z-9E731-AB)[/url] bolt i...

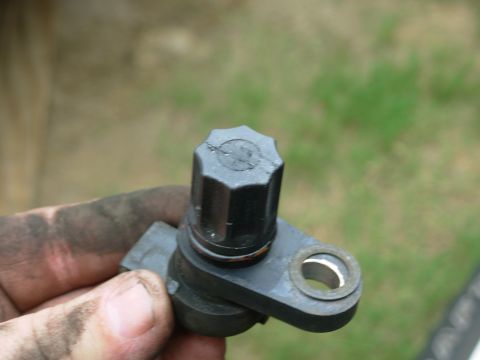

This diff obviously has problems (note the scars on the face of the [url=https://www.amazon.com/dp/B...
Hits: 3951
Size: 62.79 KB
Posted: 8/10/11
This diff obviously has problems (note the scars on the face of the [url=https://www.amazon.com/dp/B...

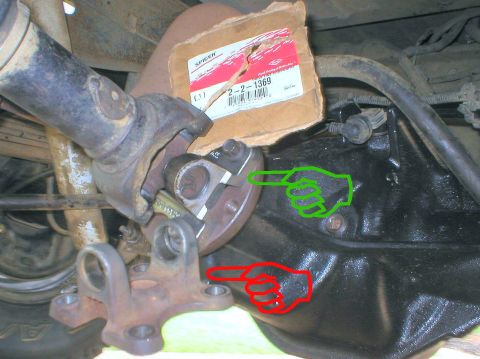

The hanging companion flange is for an Explorer, and its bolt pattern is slightly smaller than that ...
Hits: 5045
Size: 93.67 KB
Posted: 7/21/03
The hanging companion flange is for an Explorer, and its bolt pattern is slightly smaller than that ...

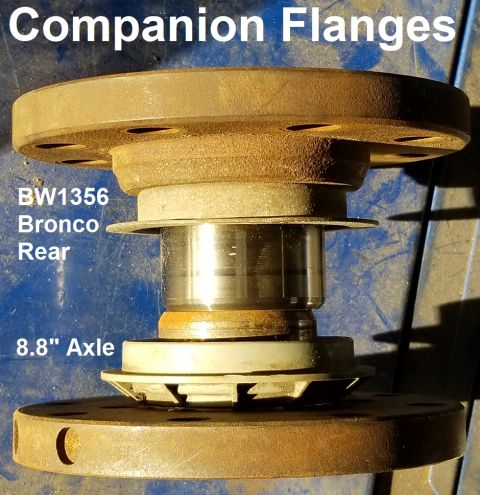

Companion Flange Comparison
IF THE IMAGE IS TOO SMALL, click it.

The unthreaded transfer case fl...
Hits: 26
Size: 104.48 KB
Posted: 2/18/24
Companion Flange Comparison IF THE IMAGE IS TOO SMALL, click it. The unthreaded transfer case fl...

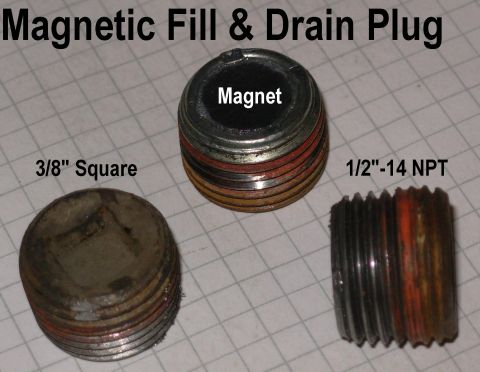

Magnetic Fill & Drain Plugs

Used as fill in '87-up solid 8.8" axles, and others.

[url=http://...
Hits: 3349
Size: 53.98 KB
Posted: 2/5/11
Magnetic Fill & Drain Plugs Used as fill in '87-up solid 8.8" axles, and others. [url=http://...

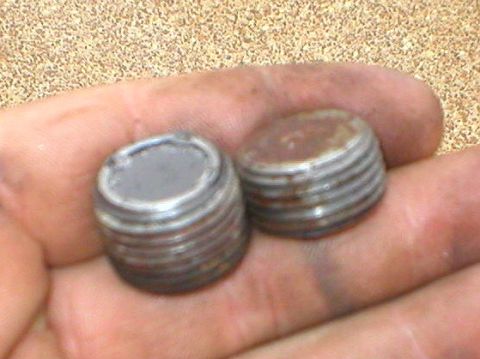

Newer fill plugs have an embedded magnet.

[url=http://www.supermotors.net/registry/media/849741][...
Hits: 4628
Size: 84.58 KB
Posted: 7/21/03
Newer fill plugs have an embedded magnet. [url=http://www.supermotors.net/registry/media/849741][...

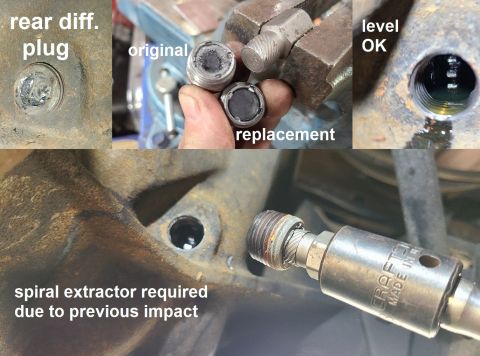

Fill Plug Extraction
IF THE IMAGE IS TOO SMALL, click it.

This is why an impact should not be us...
Hits: 23
Size: 72.53 KB
Posted: 2/18/24
Fill Plug Extraction IF THE IMAGE IS TOO SMALL, click it. This is why an impact should not be us...

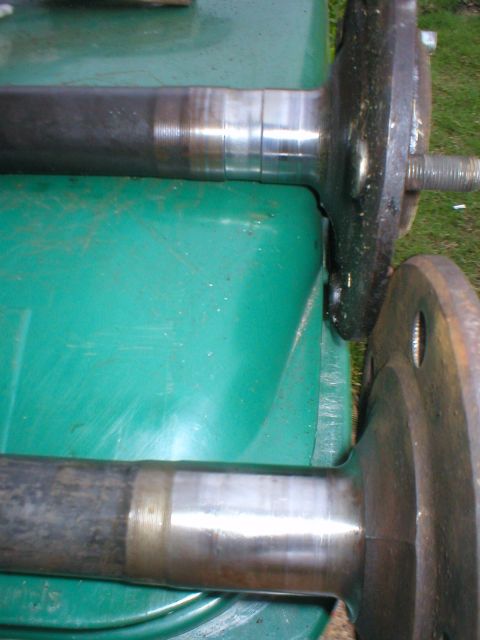

The top one is BADLY worn, and the bottom one isn't perfect.

Left: E7TZ4234B, [url=https://www.amaz...
Hits: 5585
Size: 67.56 KB
Posted: 7/21/03
The top one is BADLY worn, and the bottom one isn't perfect. Left: E7TZ4234B, [url=https://www.amaz...

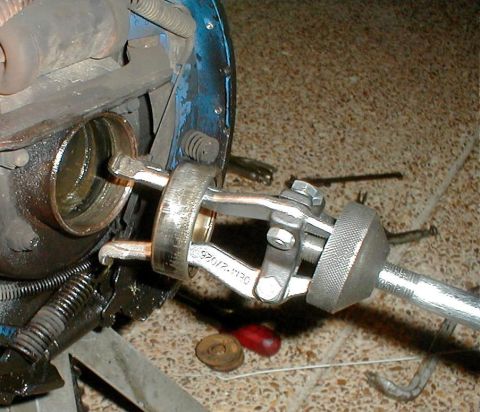

A three-jaw inside puller on a slide hammer ([url=https://www.amazon.com/dp/B0015DMNIS]OTC 4579[/url...
Hits: 3587
Size: 76.89 KB
Posted: 5/20/07
A three-jaw inside puller on a slide hammer ([url=https://www.amazon.com/dp/B0015DMNIS]OTC 4579[/url...

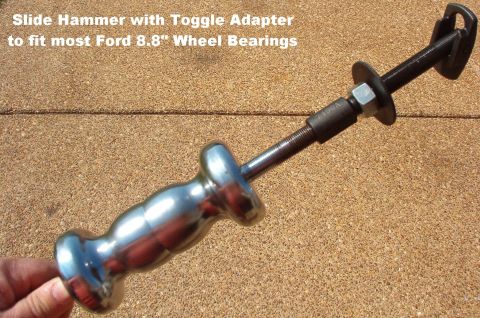

This tool makes quick work of pulling semi-float wheel bearings ([url=https://www.amazon.com/dp/B000...
Hits: 3566
Size: 93.19 KB
Posted: 8/18/07
This tool makes quick work of pulling semi-float wheel bearings ([url=https://www.amazon.com/dp/B000...

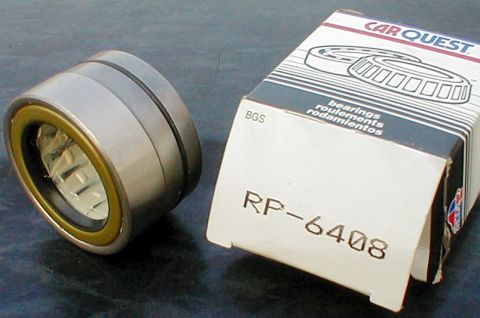

Repair bearing ([url=https://www.amazon.com/dp/B004ABEOR0]National RP6408[/url]) for 8.8" axle.  The...
Hits: 4755
Size: 54.97 KB
Posted: 5/28/05
Repair bearing ([url=https://www.amazon.com/dp/B004ABEOR0]National RP6408[/url]) for 8.8" axle. The...

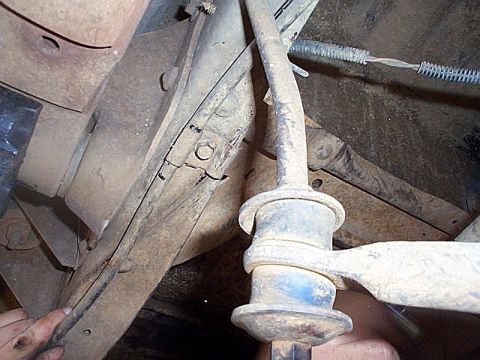

I don't remember what I was trying to show with this, but the foreground is the sway bar end link bu...
Hits: 3572
Size: 101.42 KB
Posted: 7/21/03
I don't remember what I was trying to show with this, but the foreground is the sway bar end link bu...

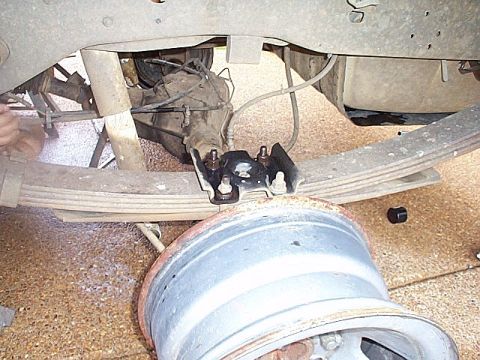

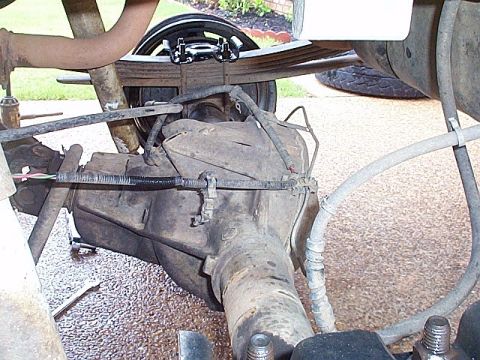

The nuts on the U-bolts are soaking in Liquid Wrench (or some other penetrating oil).  I washed all ...
Hits: 3735
Size: 111.63 KB
Posted: 7/21/03
The nuts on the U-bolts are soaking in Liquid Wrench (or some other penetrating oil). I washed all ...
The nuts on the U-bolts are soaking in Liquid Wrench (or some other penetrating oil).  I washed all ...
Hits: 4219
Size: 123.66 KB
Posted: 7/21/03
The nuts on the U-bolts are soaking in Liquid Wrench (or some other penetrating oil). I washed all ...

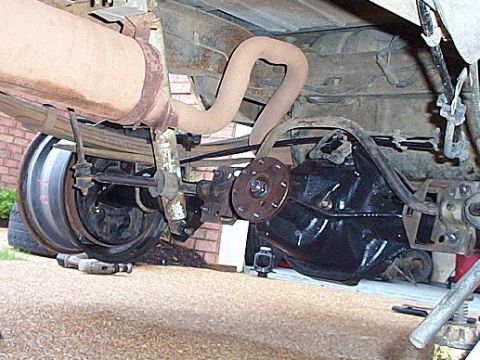

The bare rims allowed me to roll it under the truck without scratching off the powdercoat (YET).
Hits: 4381
Size: 114.83 KB
Posted: 7/21/03
The bare rims allowed me to roll it under the truck without scratching off the powdercoat (YET).

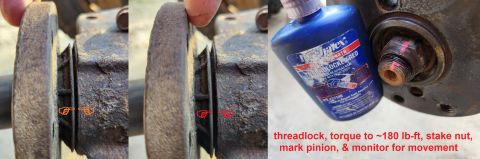

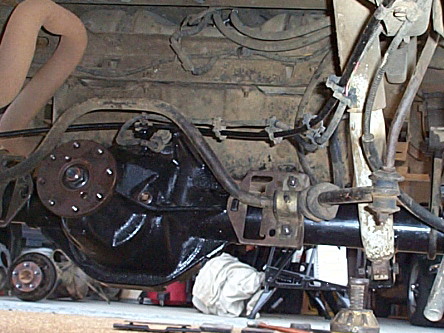

It's very common for the pinion nut (center of the flange or yoke) to get loose over the years, resu...
Hits: 4161
Size: 81 KB
Posted: 7/21/03
It's very common for the pinion nut (center of the flange or yoke) to get loose over the years, resu...

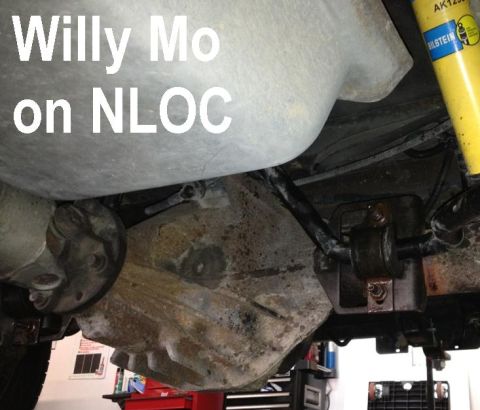

'93-95 Lightning-specific finned 8.8" center casting

http://www.nloc.net/vbforum/gen-1-lightnings/2...
Hits: 1486
Size: 56 KB
Posted: 8/21/12
'93-95 Lightning-specific finned 8.8" center casting http://www.nloc.net/vbforum/gen-1-lightnings/2...

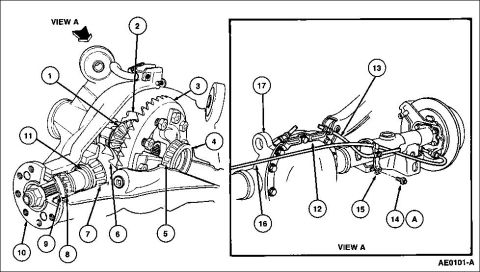

8.8" Differential Cutaway with companion flange

1 Differential Side Gear 4236
2 Differentia...
Hits: 7716
Size: 48.05 KB
Posted: 11/4/05
8.8" Differential Cutaway with companion flange 1 Differential Side Gear 4236 2 Differentia...

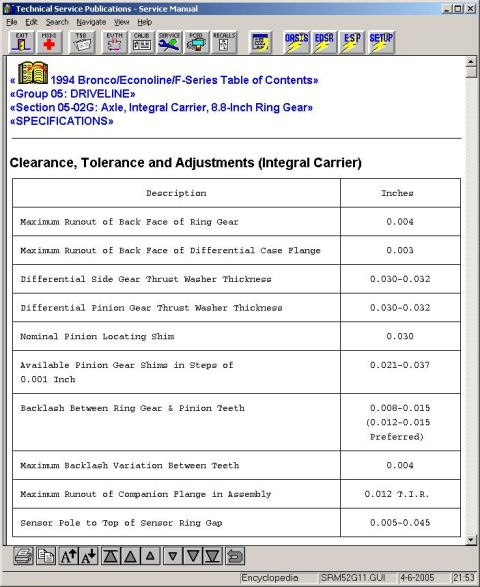

Specs for Ford 8.8"

Axle shaft end play is allowable up to 0.762mm (0.030 inch), but can be as...
Hits: 7381
Size: 63.85 KB
Posted: 4/6/05
Specs for Ford 8.8" Axle shaft end play is allowable up to 0.762mm (0.030 inch), but can be as...

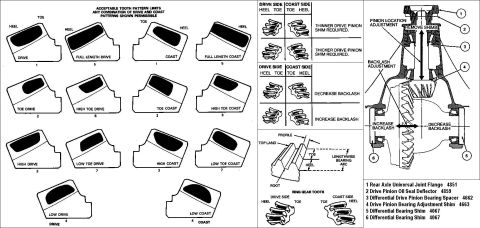

Gear Mesh Patterns using gear marking compound
IF THE IMAGE IS TOO SMALL, click it.

[url=http://www...
Hits: 11502
Size: 47.94 KB
Posted: 11/28/05
Gear Mesh Patterns using gear marking compound IF THE IMAGE IS TOO SMALL, click it. [url=http://www...

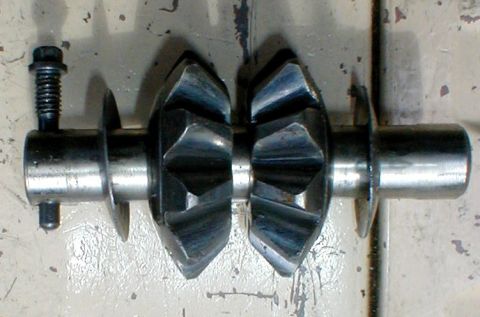

The pinion shaft lock bolt ([url=https://www.amazon.com/dp/B001H1NWS8]Ford D8BZ-4241-C[/url]) should...
Hits: 4362
Size: 55.72 KB
Posted: 1/14/05
The pinion shaft lock bolt ([url=https://www.amazon.com/dp/B001H1NWS8]Ford D8BZ-4241-C[/url]) should...

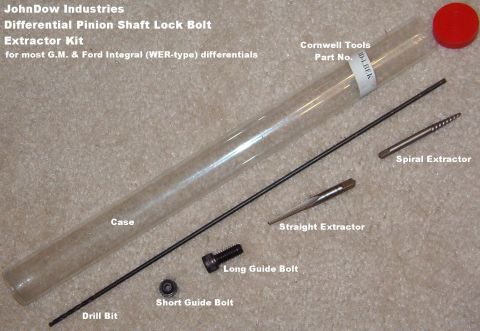

Differential Pinion Shaft Lock Bolt Extractor Kit ([url=http://www.etoolcart.com/fabbri-differential...
Hits: 4964
Size: 59 KB
Posted: 6/6/07
Differential Pinion Shaft Lock Bolt Extractor Kit ([url=http://www.etoolcart.com/fabbri-differential...

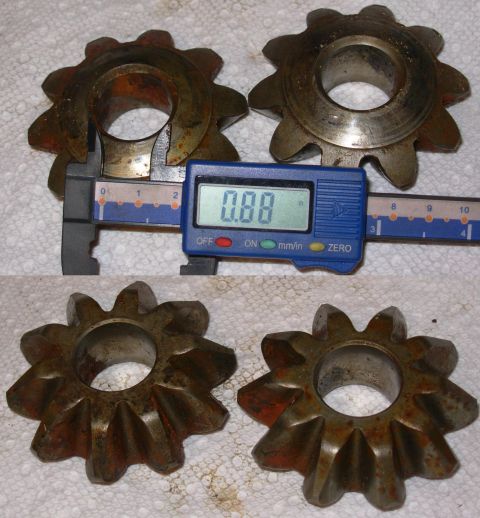

SOLD They aren't pretty, but they're free.
Hits: 1989
Size: 75.74 KB
Posted: 2/27/11
SOLD They aren't pretty, but they're free.

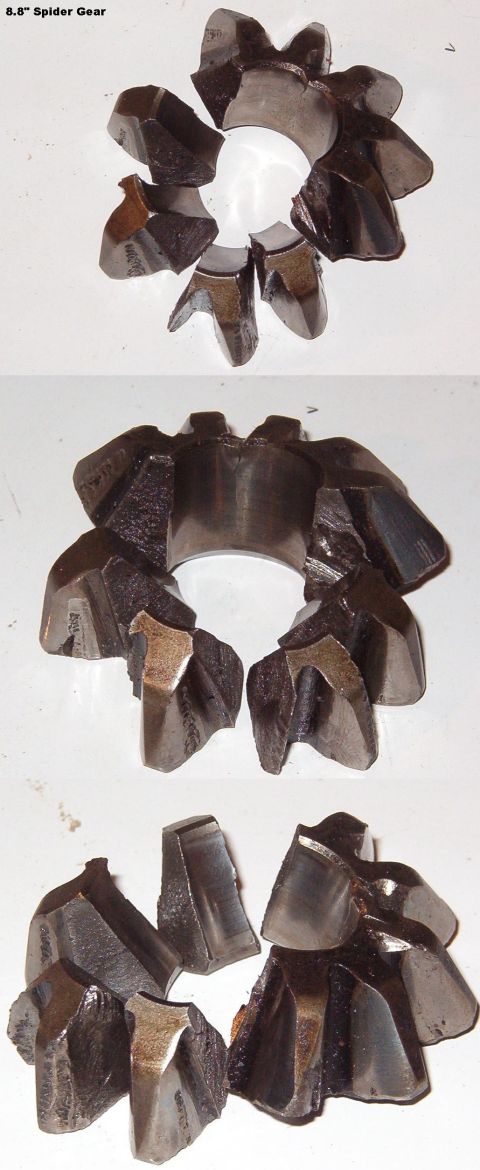

I found this in someone else's differential, after his back tires had locked up. He had to back up b...
Hits: 5080
Size: 28.88 KB
Posted: 11/11/05
I found this in someone else's differential, after his back tires had locked up. He had to back up b...

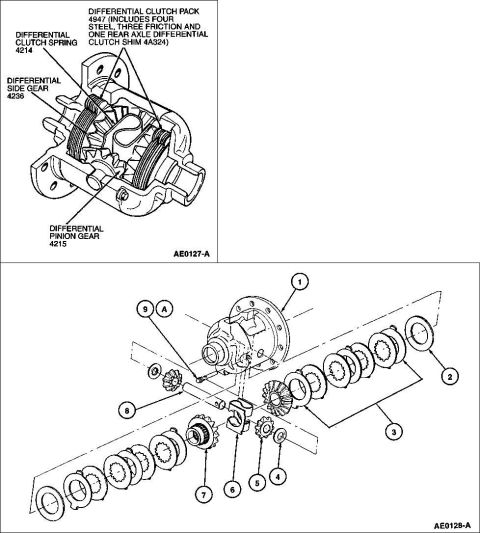

Ford (Eaton) Trac-Lok limited slip Differential

1 Differential Case 4204
2 Rear Axle Differential ...
Hits: 8694
Size: 54.07 KB
Posted: 1/14/05
Ford (Eaton) Trac-Lok limited slip Differential 1 Differential Case 4204 2 Rear Axle Differential ...

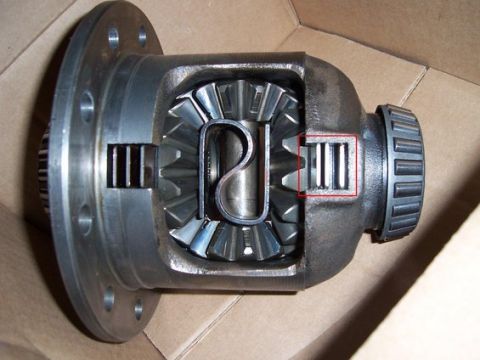

The clutch pack is clearly visible thru the obvious notches (possibly pre-'95) in the carrier, as co...
Hits: 8957
Size: 58.65 KB
Posted: 1/14/05
The clutch pack is clearly visible thru the obvious notches (possibly pre-'95) in the carrier, as co...

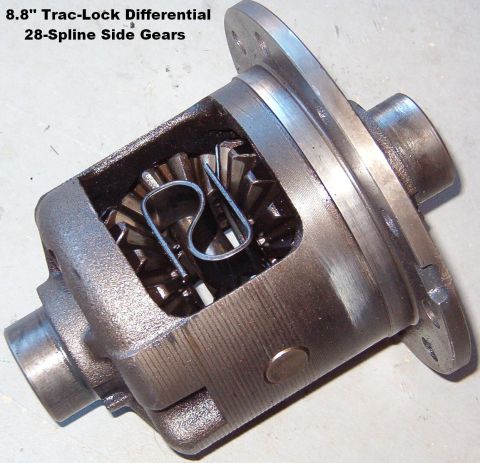

SOLD 8.8" LSD from a 2000 Ranger w/28-spline side gears.  The tubes & axleshafts were bent - there's...
Hits: 2559
Size: 81.15 KB
Posted: 10/7/06
SOLD 8.8" LSD from a 2000 Ranger w/28-spline side gears. The tubes & axleshafts were bent - there's...

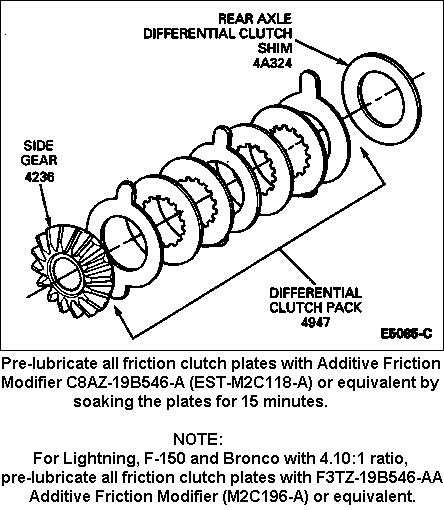

LS Clutch Assembly for Ford 8.8" axles.  Use a total of 4oz. of friction modifier in the differ...
Hits: 6327
Size: 60.94 KB
Posted: 4/6/05
LS Clutch Assembly for Ford 8.8" axles. Use a total of 4oz. of friction modifier in the differ...

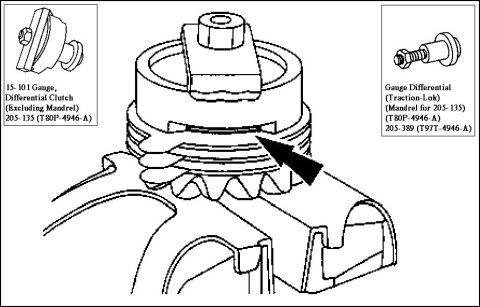

TracLok Clutch Shim

Select and insert the thickest feeler gauge blade that will enter between the t...
Hits: 3745
Size: 44.86 KB
Posted: 4/30/05
TracLok Clutch Shim Select and insert the thickest feeler gauge blade that will enter between the t...

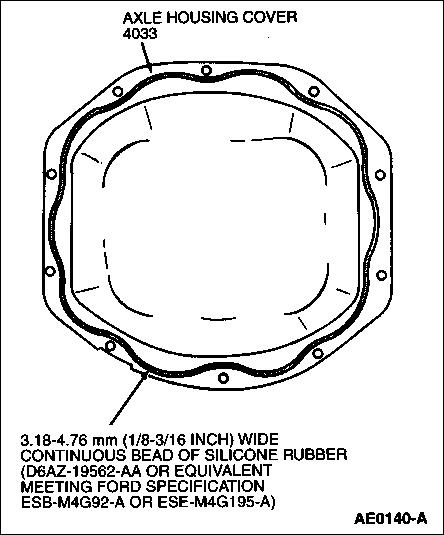

8.8" Diff Cover Sealant

Tighten bolts to 38-52 N-m (28-38 lb-ft). Tighten the cover bolts in a cros...
Hits: 7752
Size: 46.37 KB
Posted: 3/12/05
8.8" Diff Cover Sealant Tighten bolts to 38-52 N-m (28-38 lb-ft). Tighten the cover bolts in a cros...

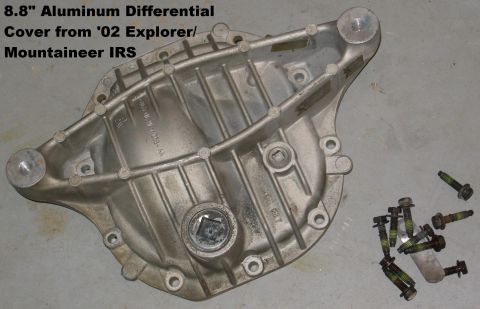

All 8.8" diffs share a cover pattern, so this will fit a solid axle.  The mounting ears don't i...
Hits: 3929
Size: 49.13 KB
Posted: 7/9/08
All 8.8" diffs share a cover pattern, so this will fit a solid axle. The mounting ears don't i...

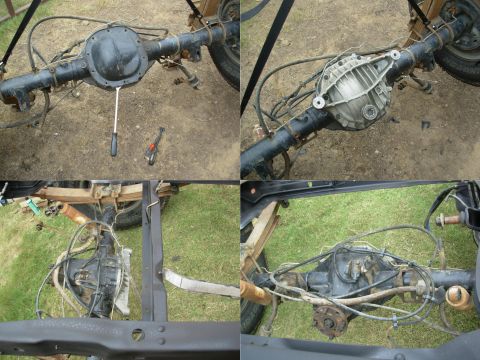

This stock Explorer/Mountaineer 8.8" IRS cover is an upgrade from the stock stamped cover, whic...
Hits: 2185
Size: 82.93 KB
Posted: 7/12/12
This stock Explorer/Mountaineer 8.8" IRS cover is an upgrade from the stock stamped cover, whic...

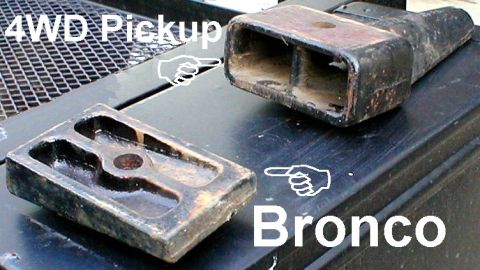

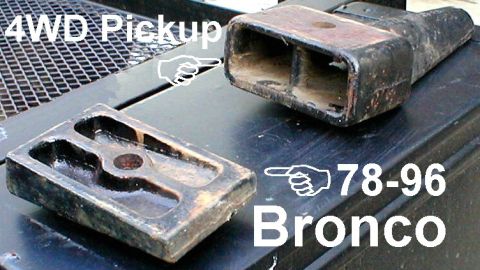

Shims for 8.8" truck axles  The Bronco shim is angled 7.5°; the pickup shim is flat.  2WD picku...
Hits: 4335
Size: 61.83 KB
Posted: 11/16/05
Shims for 8.8" truck axles The Bronco shim is angled 7.5°; the pickup shim is flat. 2WD picku...

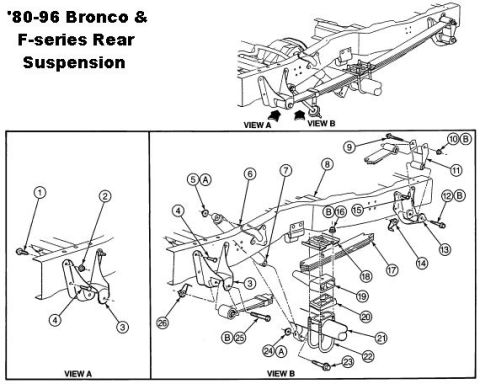

8.8" Suspension

1 Bolt N802114-S2
2 Nut N620483-S56
3 Rear Spring Front Bracket 5785 (see be...
Hits: 13323
Size: 51.08 KB
Posted: 11/16/05
8.8" Suspension 1 Bolt N802114-S2 2 Nut N620483-S56 3 Rear Spring Front Bracket 5785 (see be...

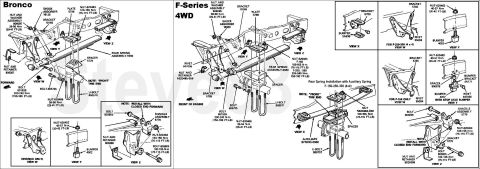

Rear Spring Details
IF THE IMAGE IS TOO SMALL, click it.

Rear Spring: F-150-250-350 (4x2 and 4x4), ...
Hits: 6123
Size: 38.09 KB
Posted: 10/23/07
Rear Spring Details IF THE IMAGE IS TOO SMALL, click it. Rear Spring: F-150-250-350 (4x2 and 4x4), ...

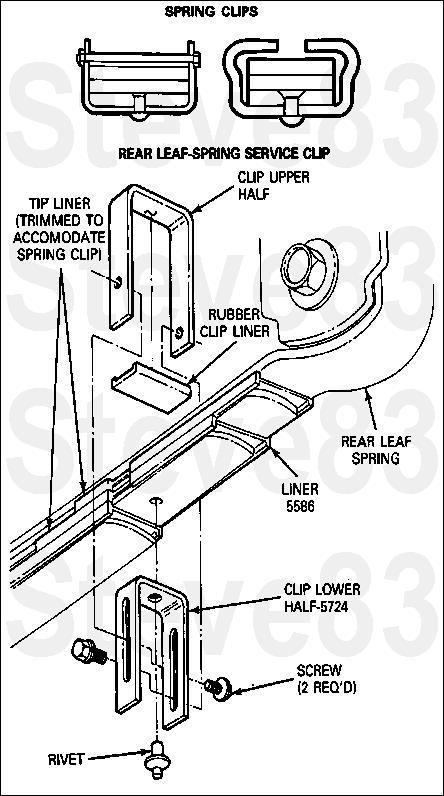

Rear Leaf Spring Squeak

To correct a squeaking condition at the rear leaf springs, first determine ...
Hits: 5335
Size: 46.81 KB
Posted: 10/22/07
Rear Leaf Spring Squeak To correct a squeaking condition at the rear leaf springs, first determine ...

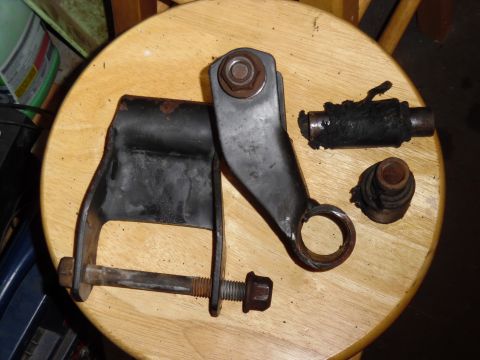

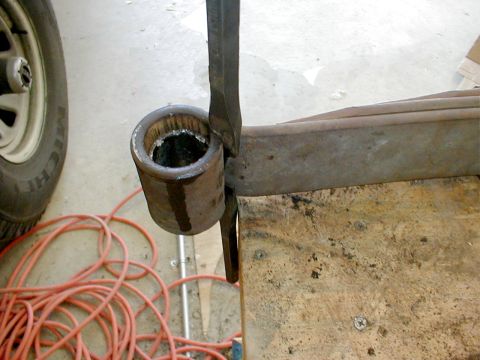

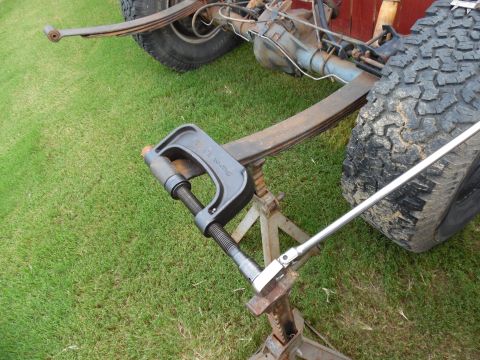

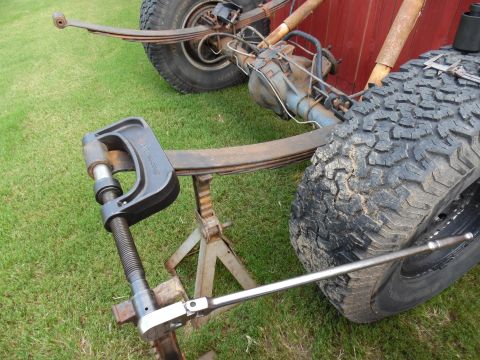

After fighting this bushing for a while, I figured out this method to get it out withOUT the proper ...
Hits: 4855
Size: 74.03 KB
Posted: 7/10/03
After fighting this bushing for a while, I figured out this method to get it out withOUT the proper ...

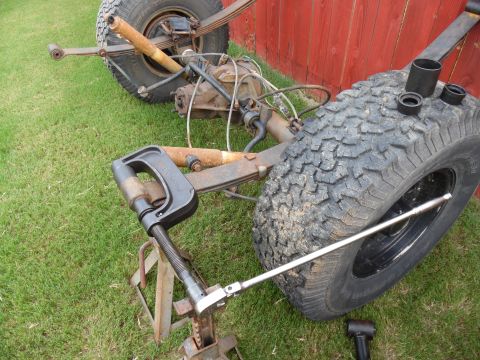

This is the best tool for this job: a Snap-On ball joint press (BJP1), several of its cups (IIRC, I ...
Hits: 1376
Size: 111.53 KB
Posted: 7/7/15
This is the best tool for this job: a Snap-On ball joint press (BJP1), several of its cups (IIRC, I ...

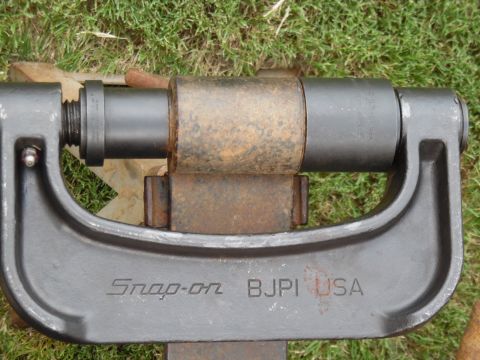

On each bushing, I found I needed one setup to initially break the sleeve loose, another setup to dr...
Hits: 1006
Size: 89.31 KB
Posted: 7/7/15
On each bushing, I found I needed one setup to initially break the sleeve loose, another setup to dr...

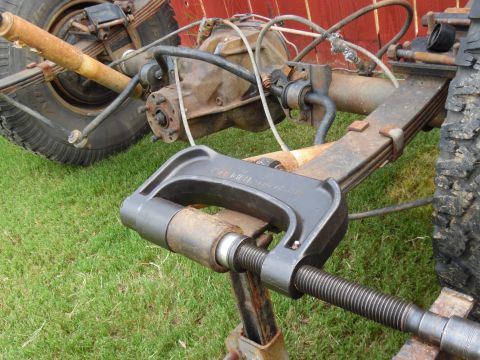

By this point, the casting around that grease nipple was getting pretty warm.  That's why the zerk i...
Hits: 931
Size: 110.91 KB
Posted: 7/7/15
By this point, the casting around that grease nipple was getting pretty warm. That's why the zerk i...

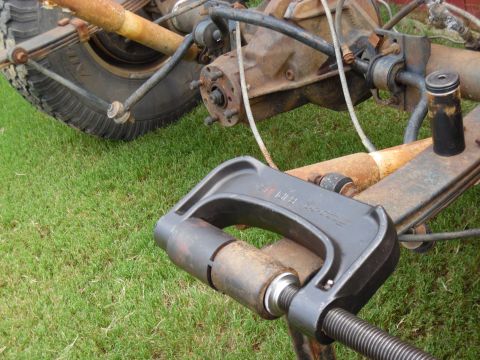

I had to knock the bushing the last ~1/8" out of the spring eye.

SEE THE PREVIOUS & NEXT SEVER...
Hits: 963
Size: 107.76 KB
Posted: 7/7/15
I had to knock the bushing the last ~1/8" out of the spring eye. SEE THE PREVIOUS & NEXT SEVER...
The axle is slightly closer to the front of the spring, so there's a little more working room for th...
Hits: 995
Size: 111.71 KB
Posted: 7/7/15
The axle is slightly closer to the front of the spring, so there's a little more working room for th...
These rear spring eye bushings were the easiest, but that's not saying much.

SEE THE PREVIOUS & NEX...
Hits: 896
Size: 113.99 KB
Posted: 7/7/15
These rear spring eye bushings were the easiest, but that's not saying much. SEE THE PREVIOUS & NEX...

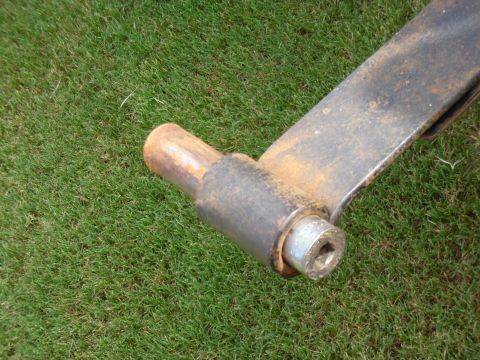

Even this one required a hammer to finish.

SEE THE PREVIOUS & NEXT SEVERAL PICS.
Hits: 887
Size: 117.67 KB
Posted: 7/7/15
Even this one required a hammer to finish. SEE THE PREVIOUS & NEXT SEVERAL PICS.
These molded-in shackle bushings are probably the worst to press out, although the sleeved version i...
Hits: 979
Size: 77.74 KB
Posted: 7/7/15
These molded-in shackle bushings are probably the worst to press out, although the sleeved version i...

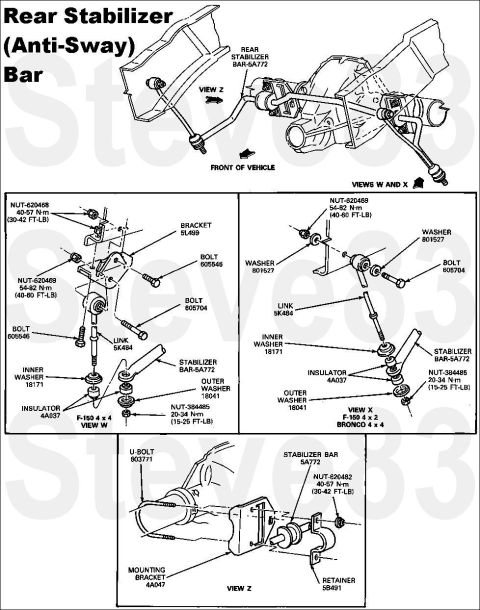

Rear Stabilizer (AntiSway) Bar
IF THE IMAGE IS TOO SMALL, click it.
AFAIK, all Broncos use [url=http...
Hits: 4207
Size: 64.67 KB
Posted: 10/23/07
Rear Stabilizer (AntiSway) Bar IF THE IMAGE IS TOO SMALL, click it. AFAIK, all Broncos use [url=http...

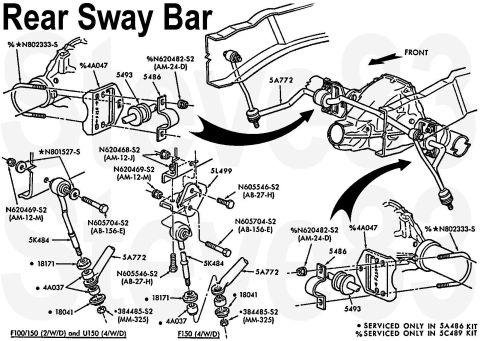

Rear Anti-Sway Bar
IF THE IMAGE IS TOO SMALL, click it.
Apparently, Lightnings use the 4WD end links...
Hits: 2441
Size: 73.9 KB
Posted: 11/9/11
Rear Anti-Sway Bar IF THE IMAGE IS TOO SMALL, click it. Apparently, Lightnings use the 4WD end links...

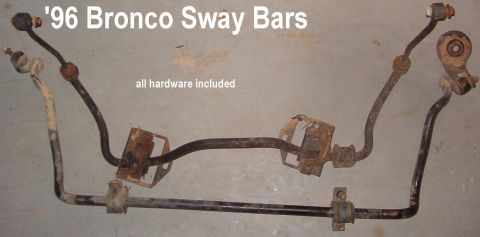

SOLD Sway Bars from '96 Bronco

All hardware, fasteners, & bushings included.
ACTUAL Dimensions:...
Hits: 2266
Size: 31.68 KB
Posted: 1/7/09
SOLD Sway Bars from '96 Bronco All hardware, fasteners, & bushings included. ACTUAL Dimensions:...

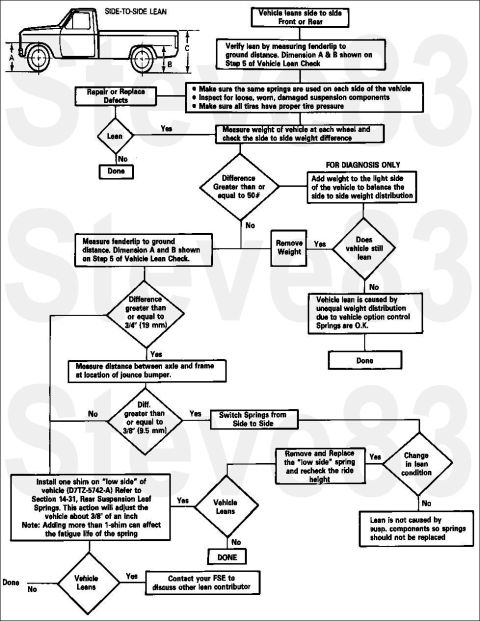

Vehicle Lean Check - F-150-250-350 (4x2), F-150 (4x4) and Bronco
IF THE IMAGE IS TOO SMALL, click it...
Hits: 8678
Size: 60.45 KB
Posted: 10/22/07
Vehicle Lean Check - F-150-250-350 (4x2), F-150 (4x4) and Bronco IF THE IMAGE IS TOO SMALL, click it...
DELETE
Hits: 3075
Size: 67.84 KB
Posted: 7/10/03
DELETE

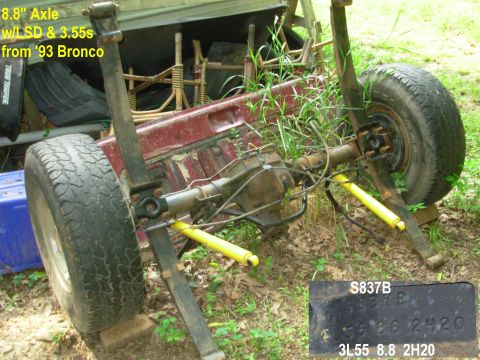

SOLD 8.8" Axle from my '93 Bronco XLT body donor

Apparently unopened with 3.55 gears & TracLok...
Hits: 1263
Size: 83.79 KB
Posted: 5/15/12
SOLD 8.8" Axle from my '93 Bronco XLT body donor Apparently unopened with 3.55 gears & TracLok...
Pinion Slack
IF THE IMAGE IS TOO SMALL, click it.

Early ('83-96) 8.8" axles are notorious for th...
Hits: 41
Size: 44.55 KB
Posted: 3/3/24
Pinion Slack IF THE IMAGE IS TOO SMALL, click it. Early ('83-96) 8.8" axles are notorious for th...


About SuperMotors | Contact Us | FAQ/Help | Legal
Copyright © 1998-2024 Web Design Solutions, Inc.
All rights reserved. Duplication & reproduction is strictly prohibited.
SuperMotors.net v5.0.2 ChangeLog
