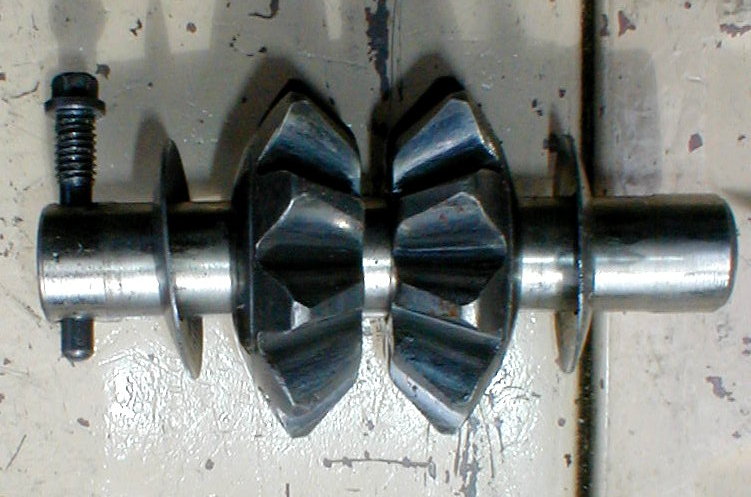

Differential spider and side gears assembled on a shaft, sitting…

The pinion shaft lock bolt (Ford D8BZ-4241-C) should NEVER be re-used. They're known to break even on their first use, and it's very difficult to remove the tip without destroying the carrier. See this:



New from Ford, the bolt is ~$5.
