SHO Shop Stage III Dyno Chart - Ford Taurus SHO 233 HP Dynojet 248C Results

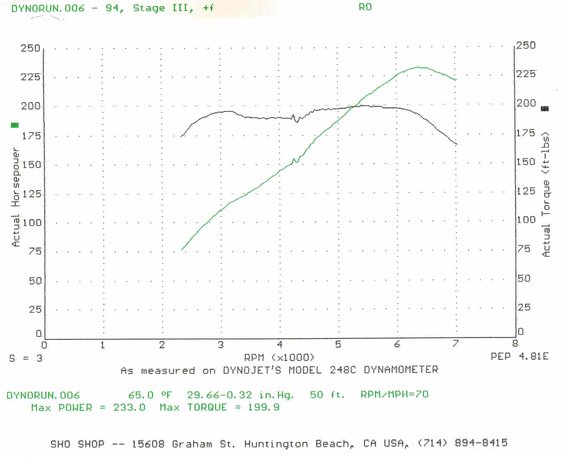

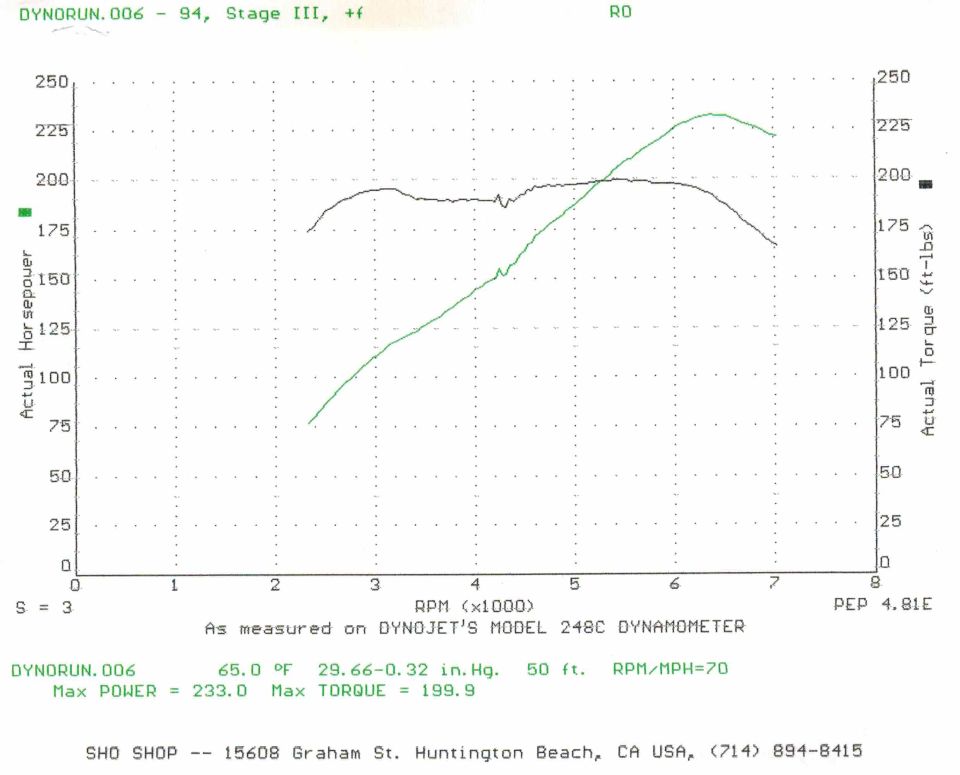

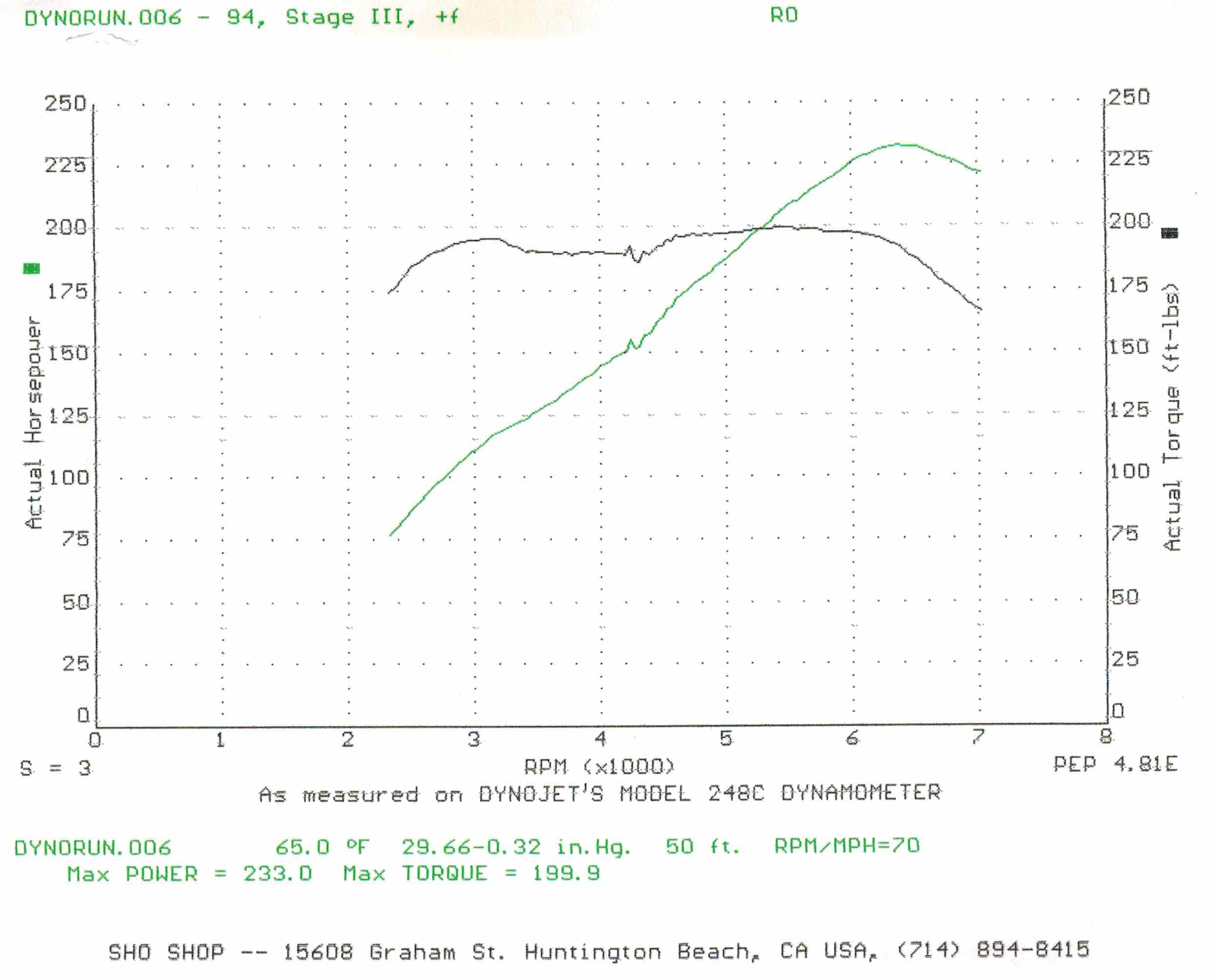

This document is a chassis dynamometer test printout (dyno chart) labeled "DYNORUN.006 - 94, Stage III, +f" produced by the SHO Shop of 15608 Graham St., Huntington Beach, CA, USA, phone (714) 894-8415. The run was measured on Dynojet's Model 248C dynamometer. The graph plots Actual Horsepower (green curve, left axis) and Actual Torque in ft-lbs (black curve, right axis) against engine speed in RPM (x1000), spanning roughly 2,400 to 7,000 RPM. Test conditions recorded are 65.0 °F ambient temperature, barometric pressure of 29.66-0.32 in.Hg, 50 ft elevation, and an RPM/MPH ratio of 70. The printout states Max POWER = 233.0 (horsepower) and Max TORQUE = 199.9 (ft-lbs). Horsepower climbs steadily, peaking around 6,300-6,500 RPM before falling slightly toward 7,000 RPM, while torque holds a broad plateau near 190-200 ft-lbs across most of the rev range. The header notation "94, Stage III, +f" suggests the run documents a Stage III modified vehicle. Notations "S = 3", "PEP 4.81E" and "RO" also appear on the sheet. A reader learns the measured wheel horsepower and torque output of this Stage III SHO Shop-tuned car.
