I moved the main block ground from the stock location on the RHF…

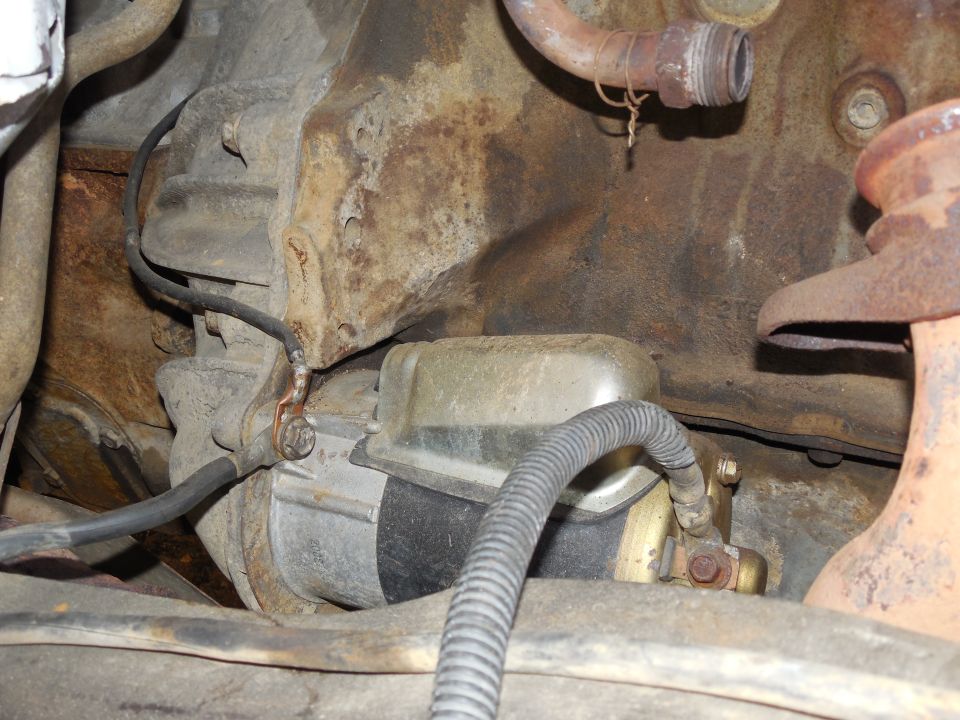

I moved the main block ground from the stock location on the RHF engine mount stud to the starter upper bolt, since it provides less resistance to the starter, and effectively the same to the alternator. An aux. ground wire (from the aux.battery and another frame ground) is also attached there, providing an all-Copper path between the battery negatives. Since I'm still using an old (pre~'92) swinging-pole-shoe starter, it only has a heavy positive cable (no voltage except during cranking). The PTO plate on the NP435 is visible in the background.
I moved the main block ground from the stock location on the RHF engine mount stud to the starter upper bolt, since it provides less resistance to the starter, and effectively the same to the alternator. An aux. ground wire (from the aux.battery and another frame ground) is also attached there, providing an all-Copper path between the battery negatives. Since I'm still using an old (pre~'92) swinging-pole-shoe starter, it only has a heavy positive cable (no voltage except during cranking). The PTO plate on the NP435 is visible in the background.Original file
I moved the main block ground from the stock location on the RHF engine mount stud to the starter upper bolt, since it provides less resistance to the starter, and effectively the same to the alternator. An aux. ground wire (from the aux.battery and another frame ground) is also attached there, providing an all-Copper path between the battery negatives. Since I'm still using an old (pre~'92) swinging-pole-shoe starter, it only has a heavy positive cable (no voltage except during cranking). The PTO plate on the NP435 is visible in the background.

BuildView all 339

Rusty exhaust manifold outlet and brackets in a dirty engine bay Rusty 4.9L Ford exhaust manifold on concrete with overlaid labels Rusty cast-iron 4.9L Ford exhaust manifold on concrete floor Rusty exhaust manifold in a bench vise with torch tip and PB Blaster penetrant during stud removal 1983 Ford Bronco photo Engine cylinder head with exhaust manifold removed, showing three open exhaust ports and rusty surfaces Cast-iron exhaust manifold with rusty outlet pipe on an EFI engine, viewed in the engine bay 1983 Ford Bronco photo 1983 Ford Bronco photo Custom welded steel vault door with keyed lock, shown closed and open Hand spraying water to clean a car carpet hung on a red fence outdoors 1983 Ford Bronco photo 1983 Ford Bronco photo 1983 Ford Bronco photo Metal locked vault box on the trunk of a tan Ford Crown Victoria sedan Ford truck interior with new tan carpet cut around shifter hole and seat belt anchors 339photos in this albumView all

I moved the main block ground from the stock location on the RHF engine mount stud to the starter upper bolt, since it provides less resistance to the starter, and effectively the same to the alternator. An aux. ground wire (from the aux.battery and another frame ground) is also attached there, providing an all-Copper path between the battery negatives. Since I'm still using an old (pre~'92) swinging-pole-shoe starter, it only has a heavy positive cable (no voltage except during cranking).

The PTO plate on the NP435 is visible in the background.

Owner caption · Photo 5085 of 6546
