Home/ Registry/ Ford/ Bronco/ 1980-1986/ “Rosie”/ Photo supermotors.net/registry/media/1038831

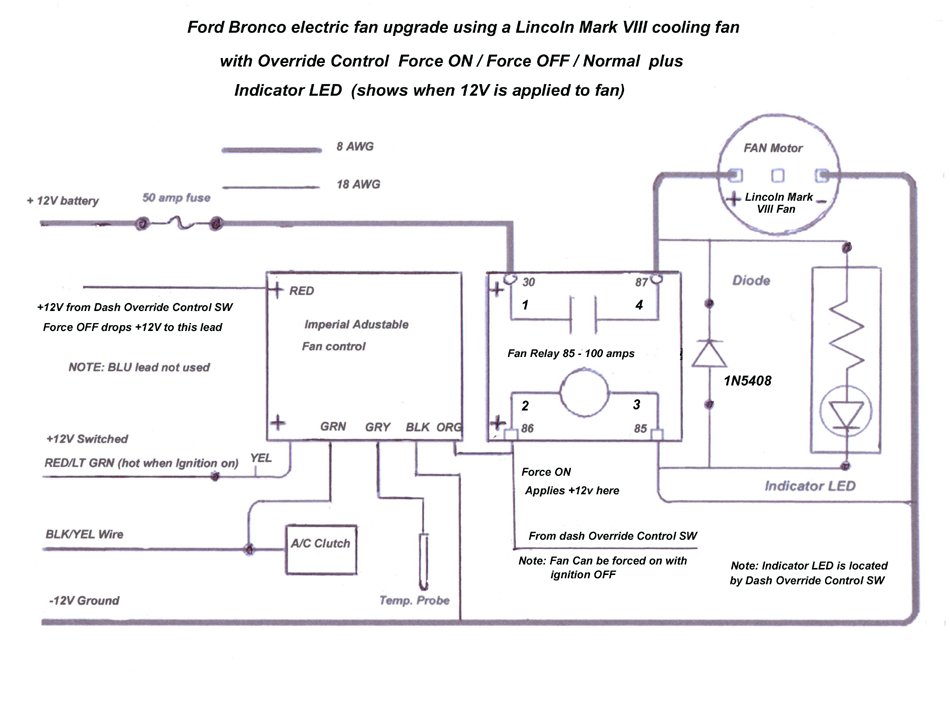

A diagram of the installation

A diagram of the installation

A diagram of the installation

Owner caption · Photo 319 of 336

Is this accurate? Sign in to help verify it.
