How do I identify my rear axle type?

Per the document, take three measurements on the rear end assembly: 1) outside bearing diameter, 2) housing flange dimensions, and 3) stud pattern and bolt circle on the axle flange, then compare them to the diagrams. Rely on measurements, not appearance.

What are the housing end dimensions for a Small Ford rear axle?

The Small Ford diagram shows a 2.835 diameter bearing bore, 2.000 vertical spacing, and 3.375 horizontal bolt spacing.

How do I tell a Big Ford from a Big Ford (New Style) housing end?

Both show a 3.150 diameter, but the Big Ford has 2.375 vertical spacing and 3.500 width, while the Big Ford (New Style) has 2.000 vertical spacing and 3.562 width.

What are the 8.8" Ford housing end dimensions?

The 8.8" Ford diagram shows 3.410 width, 2.840 diameter, 1.680 vertical spacing, and 3.076 across the bottom.

Can custom rear ends differ from these diagrams?

Yes. The document notes that custom rear ends may use axle bearings and housing flange patterns different from original equipment, so measure carefully.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1973 Ford Ranchero/ Photo supermotors.net/registry/media/1042387

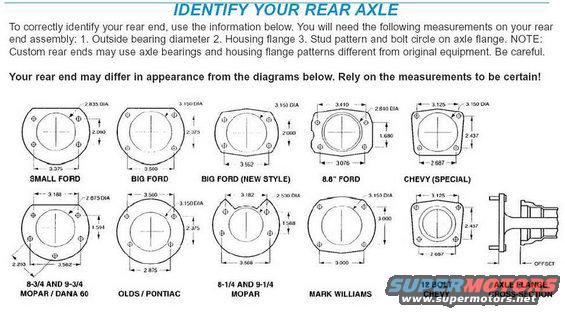

Rear Axle Identification Chart - Ford, Chevy, Mopar Housing Flange Dimensions

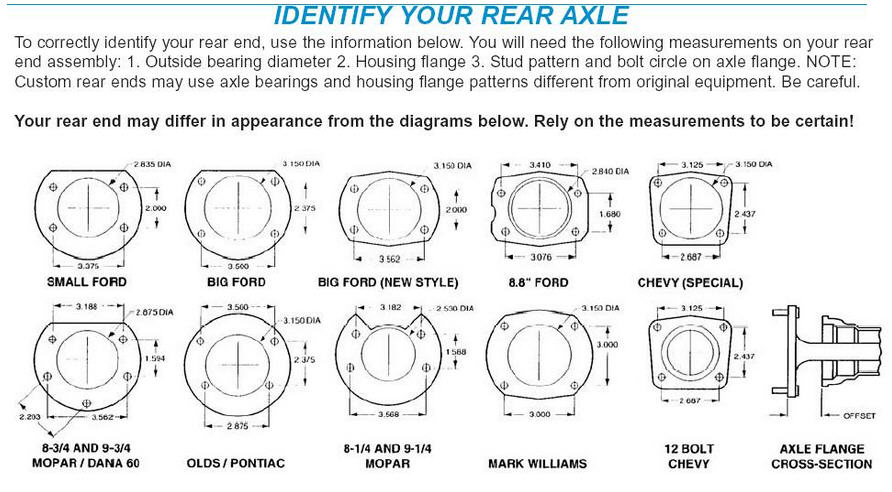

Rear-axle identification chart with dimensioned housing-flange drawings

‹ ›

Reference · 1972-1976 RancheroAll 31 manual pages

Rear Axle Identification Chart - Ford, Chevy, Mopar Housing Flange Dimensions

Ford parts catalog page of '65-'72 3105/3106 R.H. and L.H. spindle part numbers for drum and disc brakes

Ford parts catalog page for 3082-3 front suspension upper arm assemblies, '65-'72, rubber and steel bushings

Ford parts catalog page for 3078-9 front suspension lower arm assemblies, '65-'72, with part numbers

Ford Car Parts section 60.5A crankshaft damper part numbers for 8 cyl. 351W, 351C and 351 Spec.

Ford V8 Firing Order Diagram - 351W, 351C, 302 HO & Other V8 Cylinder Numbers

1972 Ford rear coil spring application chart with engine, load, ident colors and part numbers

Ford Car Parts page 34 of Falcon body type codes, '65-'70, with Custom Ranchero rows boxed

Ford 1968 B-body radiator application chart with core dimensions, cooling options and part numbers

Ford 1968 B-body radiator application chart rows for 200 through 428CJ engines with part numbers

Ford front spring code chart by body type, engine, transmission and A/C or power steering options

Ford section 5310 front spring identification and cross reference chart, spring codes 81 to 99

31manual pages1972-1976 Ford Ranchero More reference

1975 Ford Ranchero Door Jamb Data Plate - VIN, GVWR & Body/Trim Codes

Spec plate

ABATE of Georgia Swap Meet & Bike Rally flyer for April 5th & 6th at Griffin Fairgrounds

Brochure

Exploded parts

Ford Fuel Pump Relay Connector Pinout - Wire Colors & Pin Functions

Wiring diagram

Ford 351 Cleveland V8 Oiling System Diagram - Oil Flow Sketch (Mains, Cam, Lifters)

Schematic

Ford Torino, Montego & Ranchero Underbody Body Mount Dimensions Diagram

Blueprint

'67 Ranchero regular wheel jack storage and jacking instructions decal with labeled jack parts

Service procedure

Engine spec table for Ford, Lincoln, Mercury passenger and truck 6 and V6 engines by displacement and year

Torque spec

Reference chart for identifying rear axles by housing-flange dimensions and bolt patterns across makes.

Part of 1972-1976 Ford Ranchero Manual Pages

AI caption November 2014 · Photo 391 of 393

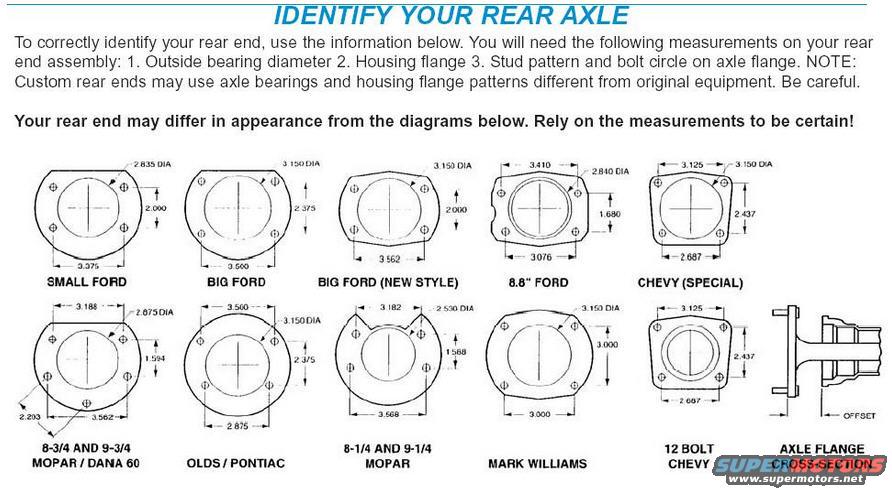

This one-page reference chart, titled 'Identify Your Rear Axle,' helps readers identify the type of rear axle (rear end) on their vehicle using three key measurements: outside bearing diameter, housing flange dimensions, and the stud pattern/bolt circle on the axle flange. It cautions that custom rear ends may use bearings and housing flange patterns different from original equipment, and stresses relying on measurements rather than appearance since rear ends may differ visually from the diagrams. Ten labeled housing-end flange diagrams are shown with dimensions in inches: Small Ford (2.835 dia bearing, 3.375 bolt spacing), Big Ford (3.150 dia, 3.500), Big Ford New Style (3.150 dia, 3.562), 8.8" Ford (2.840 dia, 3.410 x 1.680, 3.076), Chevy Special (3.150 dia, 3.125 x 2.437, 2.687), 8-3/4 and 9-3/4 Mopar / Dana 60 (2.875 dia, 3.188 x 1.594, 3.562), Olds/Pontiac (3.150 dia, 2.875), 8-1/4 and 9-1/4 Mopar (2.530 dia, 3.182 x 1.568, 3.568), Mark Williams (3.150 dia, 3.000 square pattern), and 12 Bolt Chevy (3.125 x 2.437, 2.687). An axle flange cross-section diagram illustrates how offset is measured. Useful for anyone ordering axles or identifying a swapped rear end.

Is this accurate? Sign in to help verify it.

Frequently asked questions

How do I identify my rear axle type?: Per the document, take three measurements on the rear end assembly: 1) outside bearing diameter, 2) housing flange dimensions, and 3) stud pattern and bolt circle on the axle flange, then compare them to the diagrams. Rely on measurements, not appearance.
What are the housing end dimensions for a Small Ford rear axle?: The Small Ford diagram shows a 2.835 diameter bearing bore, 2.000 vertical spacing, and 3.375 horizontal bolt spacing.
How do I tell a Big Ford from a Big Ford (New Style) housing end?: Both show a 3.150 diameter, but the Big Ford has 2.375 vertical spacing and 3.500 width, while the Big Ford (New Style) has 2.000 vertical spacing and 3.562 width.
What are the 8.8" Ford housing end dimensions?: The 8.8" Ford diagram shows 3.410 width, 2.840 diameter, 1.680 vertical spacing, and 3.076 across the bottom.
Can custom rear ends differ from these diagrams?: Yes. The document notes that custom rear ends may use axle bearings and housing flange patterns different from original equipment, so measure carefully.
