What is the Ford basic part number for the crankshaft and connecting rods in this diagram?

The crankshaft is 6303 and the connecting rod is 6200; bearings are shown as 6333 and 6337, with main bearing caps 6211 and related hardware 6212.

What do the † and % symbols mean on this page?

† means the part is serviced in the 6010 block assembly, and % means the part is serviced in the 6600 pump assembly.

What are the part numbers for the timing chain and sprockets?

The diagram shows 6268 (timing chain), 6306 (crankshaft sprocket), and 6256 (camshaft sprocket), along with the timing cover area part 6019.

What source and date is this diagram from?

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/1019430

Ford 302/351W/429/460 Engine Block Exploded Parts Diagram 1968-72

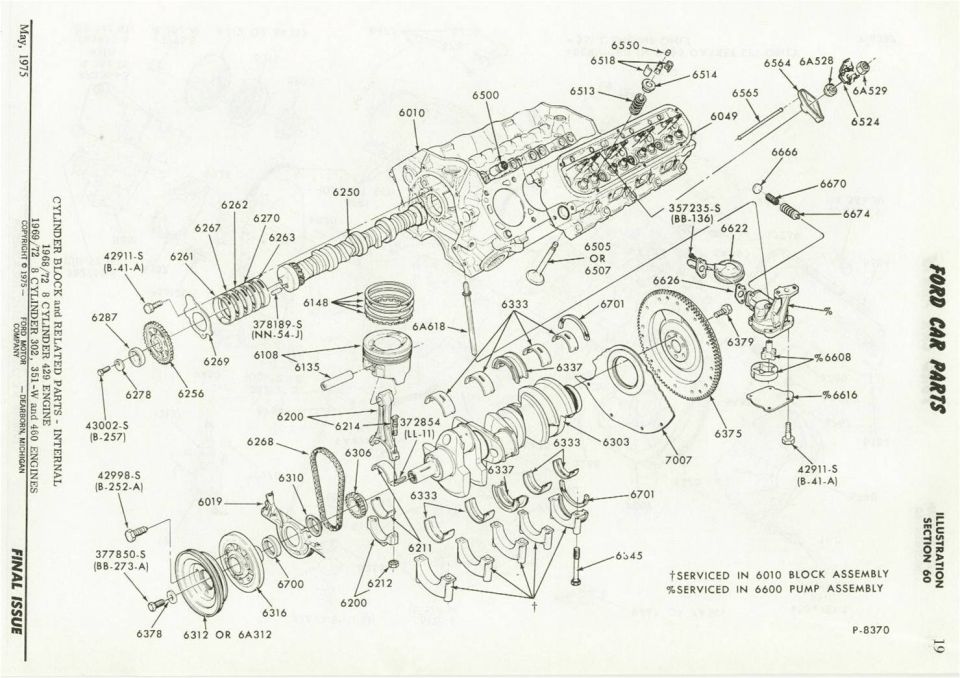

Ford engine cylinder block and internal parts exploded illustration with crankshaft

‹ ›

Ford car parts illustration of an engine cylinder block with crankshaft, pistons, camshaft and internal components.

AI caption April 2014 · Photo 693 of 708

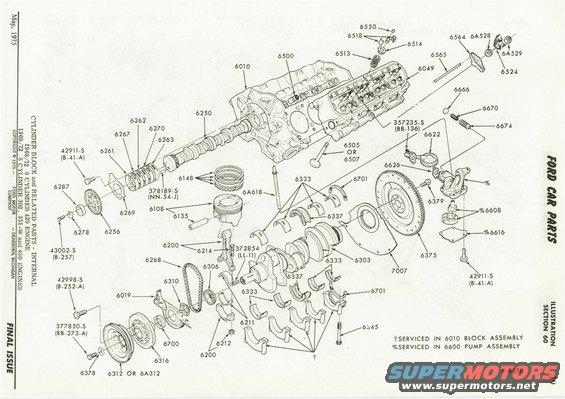

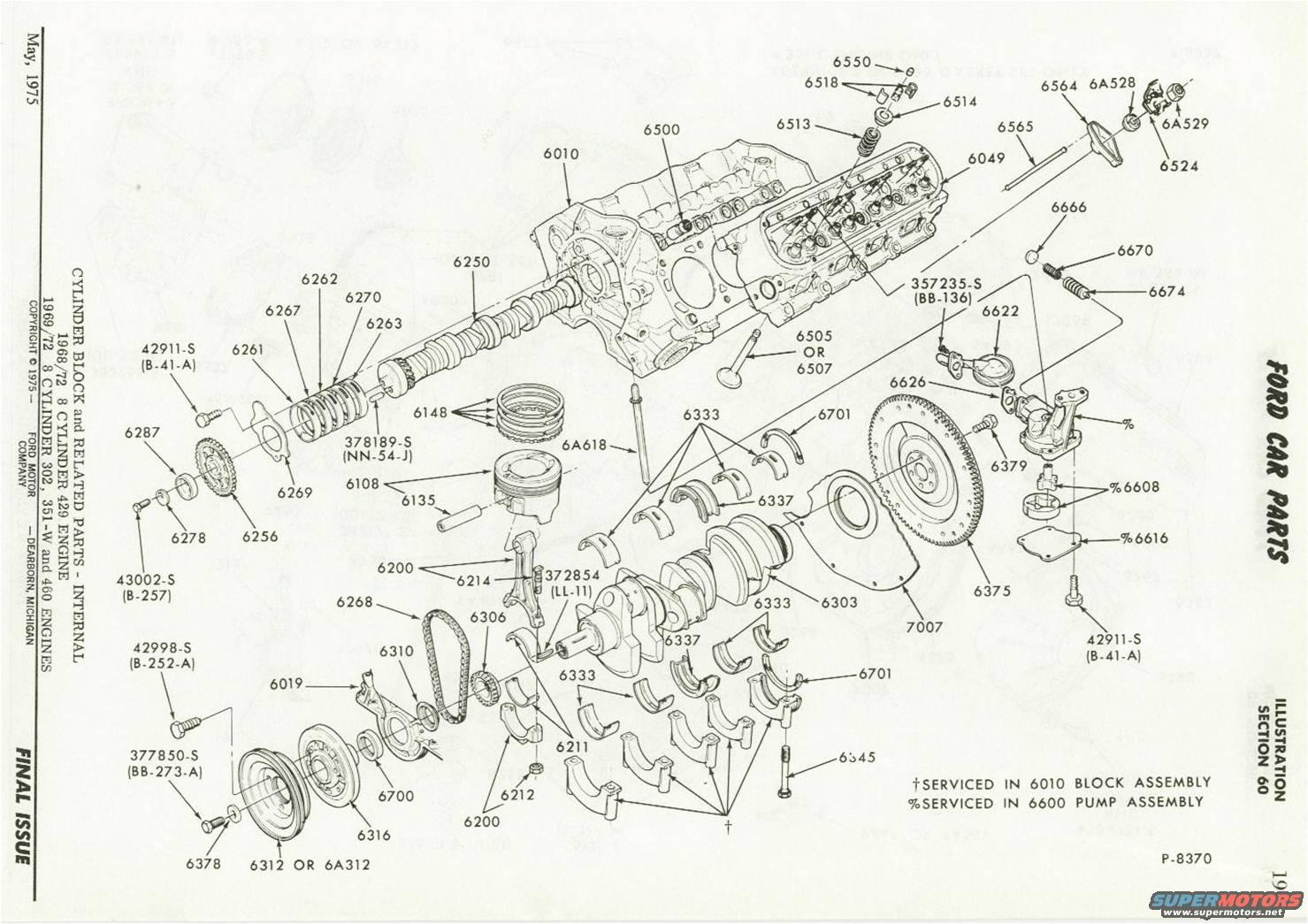

This is page 19 (plate P-8370) from the Ford Car Parts illustration catalog, Section 60, dated May 1975 and marked "Final Issue." It shows an exploded parts view of the cylinder block and related internal parts for the 1968-72 8-cylinder 429 engine and the 1969-72 8-cylinder 302, 351-W, and 460 engines. The illustration identifies Ford basic part numbers for the engine block (6010), cylinder heads (6049), crankshaft (6303), camshaft (6250), pistons (6108), piston rings (6148), connecting rods (6200), main and rod bearings (6333, 6337, 6211, 6212), flywheel (6375), oil pump components (6600 assembly parts 6608, 6616, 6622, 6626), timing chain and sprockets (6268, 6306, 6256), harmonic balancer/damper (6316), valves (6505/6507), rocker arm parts (6564, 6A528, 6A529, 6524, 6565), pushrods (6565), timing cover (6019), rear seal area (6701), and various hardware with S-suffix fastener numbers such as 42911-S (B-41-A), 43002-S (B-257), 42998-S (B-252-A), 377850-S (BB-273-A), 378189-S (NN-54-J), 372854 (LL-11), and 357235-S (BB-136). Footnotes indicate certain parts are serviced only in the 6010 block assembly (†) or the 6600 pump assembly (%). Useful for identifying Ford part group numbers when rebuilding these engines.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Which engines does this exploded diagram cover?: It covers the 1968/72 8-cylinder 429 engine and the 1969/72 8-cylinder 302, 351-W, and 460 engines (cylinder block and related internal parts).
What is the Ford basic part number for the crankshaft and connecting rods in this diagram?: The crankshaft is 6303 and the connecting rod is 6200; bearings are shown as 6333 and 6337, with main bearing caps 6211 and related hardware 6212.
What do the † and % symbols mean on this page?: † means the part is serviced in the 6010 block assembly, and % means the part is serviced in the 6600 pump assembly.
What are the part numbers for the timing chain and sprockets?: The diagram shows 6268 (timing chain), 6306 (crankshaft sprocket), and 6256 (camshaft sprocket), along with the timing cover area part 6019.
What source and date is this diagram from?: It is from the Ford Car Parts illustration catalog, Section 60, plate P-8370, page 19, dated May 1975 (marked Final Issue), copyright 1975 Ford Motor Company, Dearborn, Michigan.
