C297 anti-theft transceiver module 4-pin connector pinout with c…

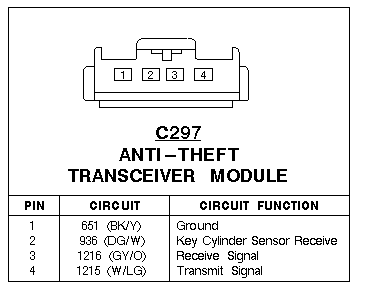

C297 anti-theft transceiver module 4-pin connector pinout with circuit functions
C297 anti-theft transceiver module 4-pin connector pinout with circuit functionsOriginal file
C297 anti-theft transceiver module 4-pin connector pinout with circuit functions

Reference · 1987-1991 F-250All 32 wiring diagrams

5.0L C202 PCM connector face with 104 pins and pin 1-34 circuit function table C338 gray Remote Anti-Theft Personality (RAP) module connector pinout with circuit numbers and functions C336 gray remote anti-theft personality (RAP) module connector pinout with circuit functions C297 anti-theft transceiver module 4-pin connector pinout with circuit functions C291 black data link connector (DLC) pinout with circuit numbers and functions C222 passive anti-theft system (PATS) control module connector pinout with circuit functions C180 black 4R70W transmission connector pinout with circuit numbers and functions C112 digital transmission range (DTR) sensor connector pinout with circuit numbers and functions 32wiring diagrams1987-1991 Ford F-250 More reference EPC relief valve install steps with drilled bottom plate, purple spring, valve and bracketService procedure TransGo AODE-HD2 Reprogramming Kit instruction cover for 1992-2011 AODE, 4R70/75W and 4R70/75EBrochure Ford certification label dated 06/93, type truck, VIN beginning 1FTCR11X, with GAWR and tire dataSpec plate 1992 Ford Bronco complete underbody frame dimensions, top and side views with measuring pointsBlueprint F150 1980-2003 catalog diagram P28018 of A/C condenser and hoses for the 5.8L 8-cylinder, 1990 to 1993Schematic Ford 5.8L Vacuum Hose Routing Diagram - Emissions Decal MFM05.8BSA6Vacuum routing

Pinout of 4-pin connector C297 at the anti-theft transceiver module: ground, key cylinder sensor receive, receive and transmit signal circuits.

Part of 1987-1991 Ford F-250 Wiring Diagrams

AI caption · Photo 45 of 326
