C336 gray remote anti-theft personality (RAP) module connector p…

C336 gray remote anti-theft personality (RAP) module connector pinout with circuit functions
C336 gray remote anti-theft personality (RAP) module connector pinout with circuit functionsOriginal file
C336 gray remote anti-theft personality (RAP) module connector pinout with circuit functions

Reference · 1987-1991 F-250All 32 wiring diagrams

Ford Transmission Wiring Diagram - TR Sensor, OSS Sensor & PCM Circuits (T1) 5.0L C202 PCM connector face with 104 pins and pin 1-34 circuit function table C338 gray Remote Anti-Theft Personality (RAP) module connector pinout with circuit numbers and functions C336 gray remote anti-theft personality (RAP) module connector pinout with circuit functions C297 anti-theft transceiver module 4-pin connector pinout with circuit functions C291 black data link connector (DLC) pinout with circuit numbers and functions C222 passive anti-theft system (PATS) control module connector pinout with circuit functions C180 black 4R70W transmission connector pinout with circuit numbers and functions 32wiring diagrams1987-1991 Ford F-250 More reference EPC relief valve install steps with drilled bottom plate, purple spring, valve and bracketService procedure TransGo AODE-HD2 Reprogramming Kit instruction cover for 1992-2011 AODE, 4R70/75W and 4R70/75EBrochure Ford certification label dated 06/93, type truck, VIN beginning 1FTCR11X, with GAWR and tire dataSpec plate 1992 Ford Bronco complete underbody frame dimensions, top and side views with measuring pointsBlueprint F150 1980-2003 catalog diagram P28018 of A/C condenser and hoses for the 5.8L 8-cylinder, 1990 to 1993Schematic Ford 5.8L Vacuum Hose Routing Diagram - Emissions Decal MFM05.8BSA6Vacuum routing

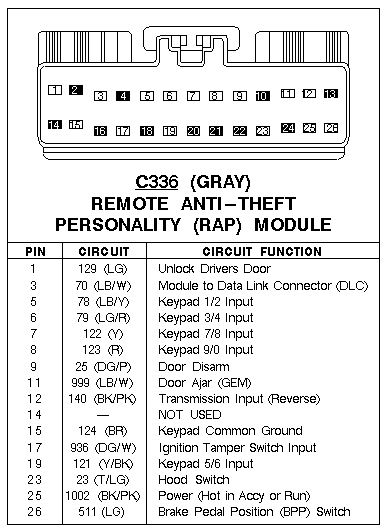

Pinout of gray 26-pin connector C336 at the remote anti-theft personality (RAP) module, showing keypad, door, hood switch and BPP switch circuits.
