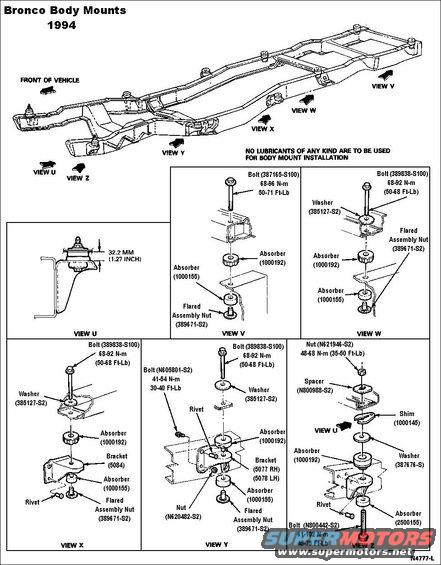

1994 Ford Bronco Body Mounts exploded diagram with part numbers

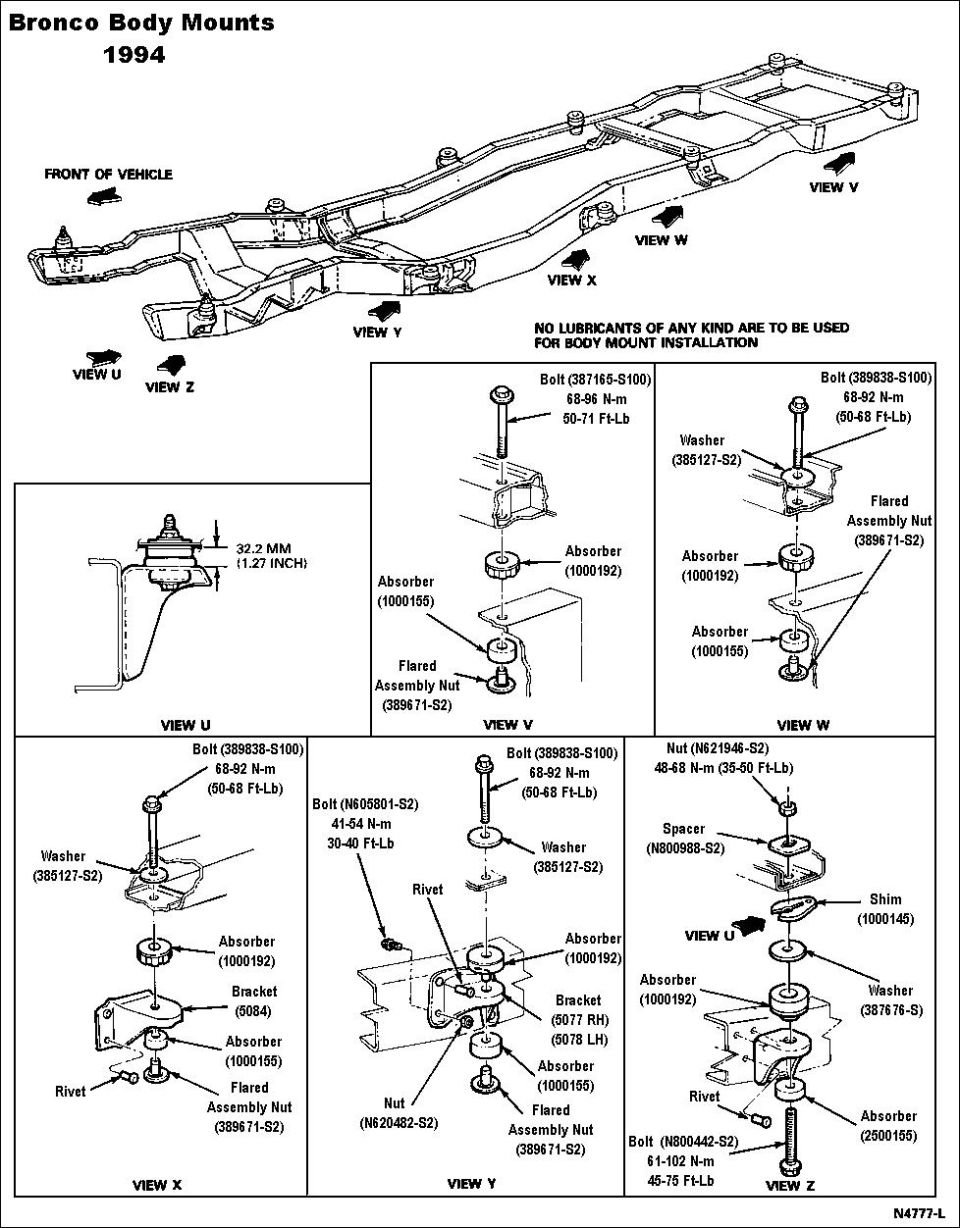

1994 Ford Bronco Body Mounts exploded diagram with part numbers

Body mount locations
