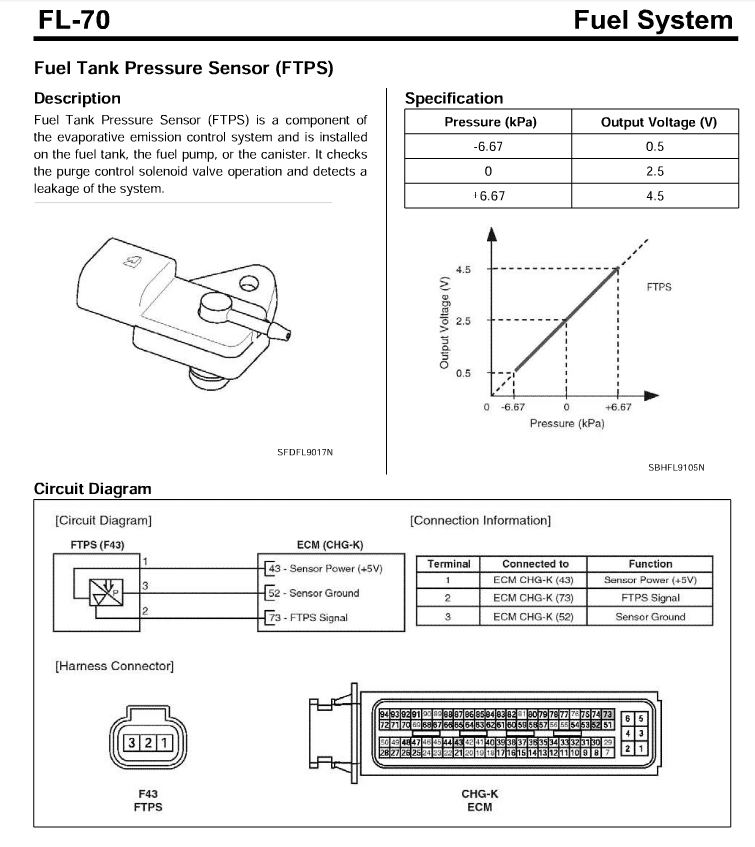

This document contains information about the FL-70 Fuel Tank Pressure Sensor (FTPS), including its description, specifications, a circuit diagram, and connection information.
