Hyundai Genesis Coupe Automatic Transmission Fill, Level & Drain Plug Locations

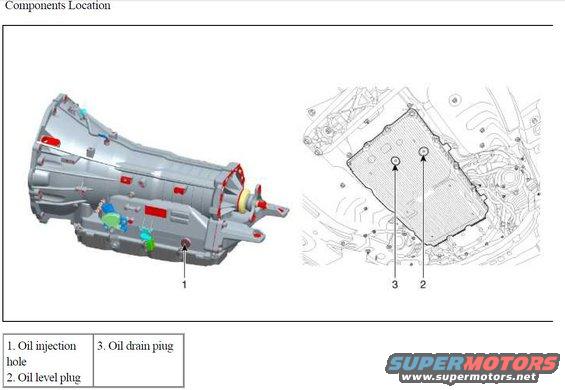

This document is a "Components Location" page from a service manual covering an automatic transmission, filed by the uploader as applying to a 2010 Hyundai Genesis (BK2 Genesis Coupe automatic transmission fill plug). It contains two line-art illustrations. The left illustration shows the complete automatic transmission assembly removed from the vehicle, viewed at an angle, with callout 1 pointing to a plug on the bottom of the transmission. The right illustration shows the transmission oil pan as viewed from under the vehicle, with callouts 2 and 3 pointing to two plugs on the pan surface. A legend table identifies the callouts: 1 = Oil injection hole, 2 = Oil level plug, and 3 = Oil drain plug (printed as "piug" in the source). A reader can learn where the transmission fluid fill (injection) hole, level-check plug, and drain plug are physically located on the transmission and oil pan, which is essential for performing an automatic transmission fluid drain, fill, and level check. The page contains no torque specifications, part numbers, fluid capacities, or model/year statements.
