Instructions for sunroof motor initialization and emergency hand…

‹ ›

Hyundai Service picsView all 102

Left Side of Dash Panel component-location photo with ICM relay box and data link callouts

Fuse and relay layout diagram of I/P junction box, page SD100-1

Technical document page showing connecting rod bearing identification and selection chart.

Service manual components-location figure of automatic transmission oil plugs and underbody

Photo of underhood junction box with JE67-JE71 joint connector callouts

Engine bay photo with ECM, brake fluid level sensor and ground connector callouts

Repair manual page for sunroof assembly replacement with diagram

Document detailing the FL-70 Fuel Tank Pressure Sensor (FTPS) with diagrams and specifications.

SAE engine oil viscosity temperature range chart with multiple recommended grades

SAE engine oil viscosity temperature range chart for 2.0 and 3.8L gasoline engines

G6DA engine photo with oil pressure switch, oil control valve and connector callouts

Diagram of engine and transmission assembly with torque specifications.

Flowchart for vehicle self-diagnosis process.

Table of fault codes and descriptions for HA-58 HVAC system

Technical service bulletin for P0267 Cylinder 3 Injector Circuit Low code, Fuel System.

102photos in this albumView all

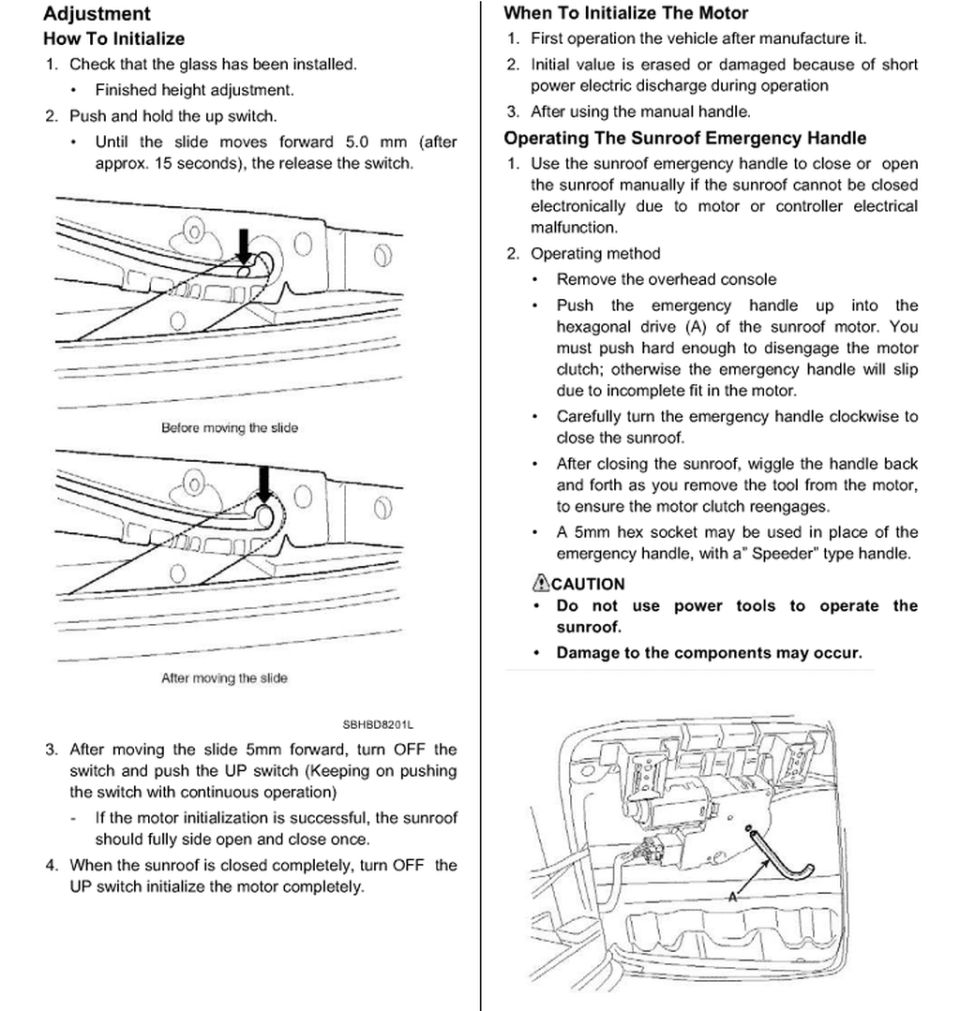

This document shows instructions for initializing the sunroof motor on a vehicle. It includes diagrams illustrating the adjustment process and text detailing the steps for operating the sunroof emergency handle.
