Hyundai Genesis Coupe G6DA Engine Bay Connector Locations - PHOTO.36 ECM, Grounds

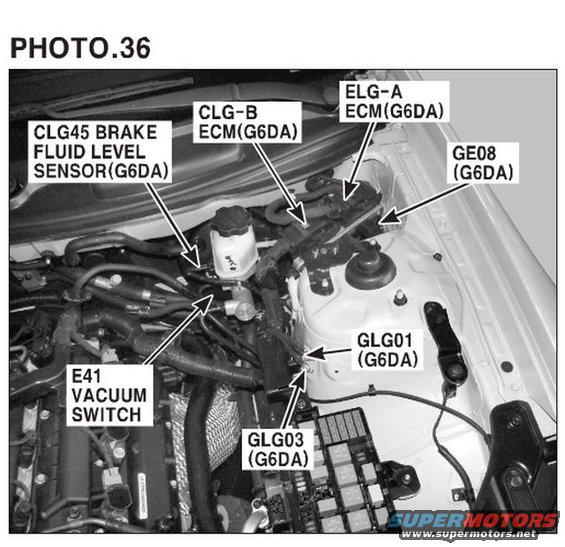

This document is a labeled service-manual photograph (PHOTO.36) showing an engine-compartment view of a vehicle, identifying connector and component locations associated with the G6DA engine. Arrows point from text callouts to specific locations in the engine bay near the brake master cylinder reservoir, cowl area, strut tower, and engine-room fuse/relay box. Identified items include the CLG45 brake fluid level sensor (G6DA), two ECM-related connectors labeled CLG-B ECM (G6DA) and ELG-A ECM (G6DA), ground/connector points GE08 (G6DA), GLG01 (G6DA), and GLG03 (G6DA), and the E41 vacuum switch. A reader can use this photo to physically locate these harness connectors, ground points, and components in the engine compartment when performing diagnostics or repairs — for example, tracing ECM wiring, checking ground points near the strut tower, or servicing the brake fluid level sensor. The photo shows these items relative to easily recognized landmarks such as the brake fluid reservoir, engine harness looms, strut tower cap, and the under-hood fuse box. No fuse values, wire colors, torque specs, or model-year text appear in the image itself; the (G6DA) notation ties the callouts to the G6DA engine variant.
