Hyundai G6DA V6 Oil Pressure Switch & Oil Control Valve #2 Location Diagram

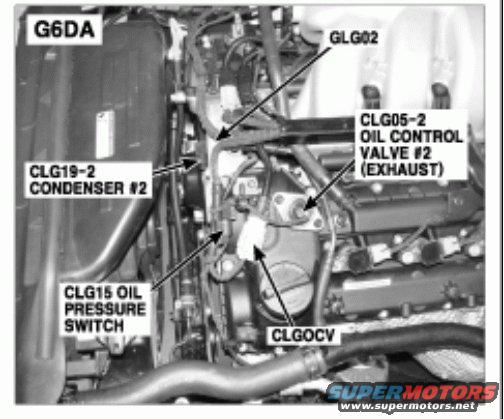

This document is a component-location photograph from a service reference, labeled "G6DA," which is the Hyundai Lambda V6 engine code. The image shows a portion of the engine bay/engine assembly with arrows pointing from labeled callouts to specific components. Identified items include: GLG02 (a ground point or harness location near the top center of the engine), CLG19-2 Condenser #2 (mounted on the left side of the engine), CLG05-2 Oil Control Valve #2 (Exhaust) (located on the right/upper area of the cylinder head), CLG15 Oil Pressure Switch (located lower center on the engine block), and CLGOCV (a connector near the oil pressure switch, likely for the oil control valve). A reader can use this page to visually locate the oil pressure switch, the exhaust-side oil control valve #2, condenser #2, and their related connectors on the G6DA engine. No torque values, wire colors, part numbers, or text tables are present—only the callout labels identifying component locations. This matches the uploader's filename indicating it documents the V6 oil pressure switch location, consistent with a 2010 Hyundai Genesis equipped with the Lambda V6 (G6DA) engine.
