Wiring diagram for vehicle fog lamps (1)

‹ ›

2013View all 55

Wiring diagram for Intelligent Power Switch (IPS) System (2)

Diagram of the Intelligent Power Switch (IPS) System (1) with electrical components and connections.

Wiring diagram for 2010 Hyundai Genesis Coupe power outlet system.

Diagram of a vehicle's power distribution system with relays, fuses, and connectors, highlighting the button s

Wiring diagram for a vehicle's power distribution system, showing fuses and relays.

Diagram of passenger compartment fuse details with component connections.

Diagrams of M02-A and M02-B electrical connector pinouts

Wiring diagram for 2010 Hyundai Genesis front fog lamps

2010 Hyundai Genesis center console with BCM and wiring

Engine compartment fuse and relay box diagram 91950-2M230: C/FAN 60A, BLOWER 40A, ALT 150A, ABS layout

Engine compartment main fuse panel chart: fuse ratings and protected components, ALT 150A, C/FAN 60A

Engine compartment sub fuse panel chart: B+ 50A, EMS 30A, F/PUMP 20A, ECU/injector/ignition fuse ratings

Engine fuse box legend 91950-2M330 with amperage labels and EMS/fuel pump relays

Interior fuse box legend 91941-2M020 with circuit names and amperages

Interior fuse panel chart: module, stop lamp, blower, wiper, power window fuse ratings and protected circuits

55photos in this albumView all

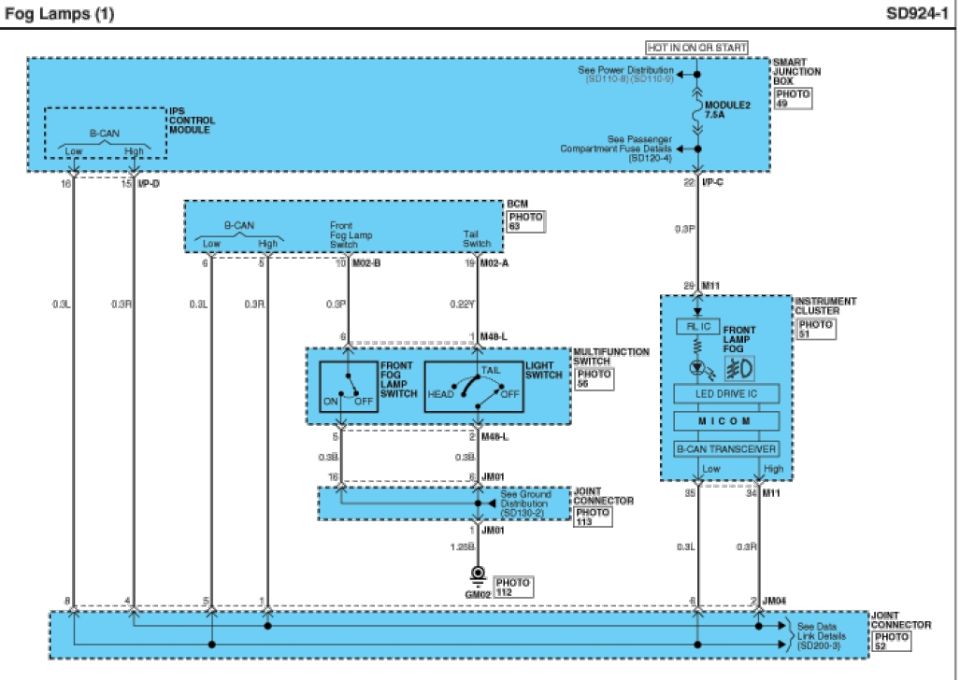

This is a wiring diagram for the fog lamps (1) of a vehicle, identified as SD924-1. It details the electrical connections and components involved in the fog lamp system.
