Hyundai Genesis Coupe Engine Fuse Box Diagram 91950-2M230 - Fuses & Relays

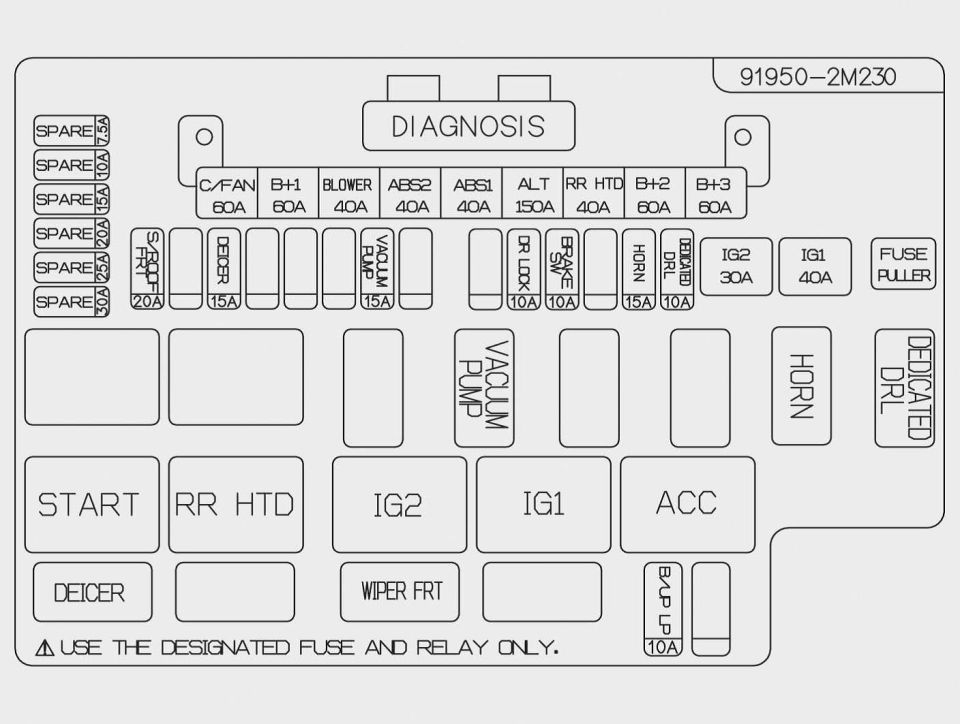

This document is an engine compartment fuse and relay box map (cover label diagram) bearing part number 91950-2M230, uploaded for a 2010 Hyundai Genesis (Genesis Coupe). It shows the physical layout of the underhood fuse/relay panel, including a DIAGNOSIS connector at the top center. Six spare fuses are provided along the left side (7.5A, 10A, 15A, 20A, 25A, 30A). A top row of high-amperage fuses includes C/FAN 60A, B+1 60A, BLOWER 40A, ABS2 40A, ABS1 40A, ALT 150A, RR HTD 40A, B+2 60A, and B+3 60A. A second row of blade fuses covers S/ROOF FRT 20A, DEICER 15A, VACUUM PUMP 15A, DR LOCK 10A, BRAKE SW 10A, HORN 15A, and DEDICATED DRL 10A, plus IG2 30A and IG1 40A fuses and a fuse puller location. Labeled relays include VACUUM PUMP, HORN, DEDICATED DRL, START, RR HTD, IG2, IG1, ACC, DEICER, and WIPER FRT, plus a B/UP LP 10A fuse near the bottom. A warning states 'USE THE DESIGNATED FUSE AND RELAY ONLY.' The map lets a reader locate specific fuses/relays and confirm correct amperage ratings.
