Hyundai Genesis Coupe Engine Compartment Fuse Panel Chart - Ratings & Circuits

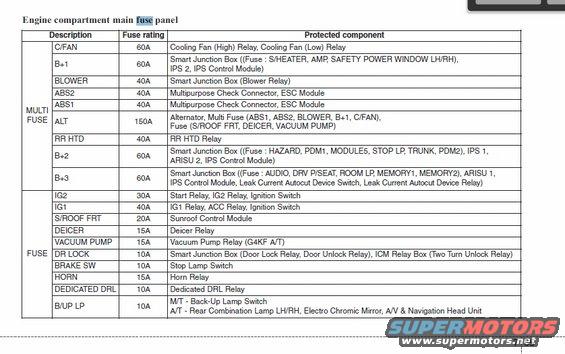

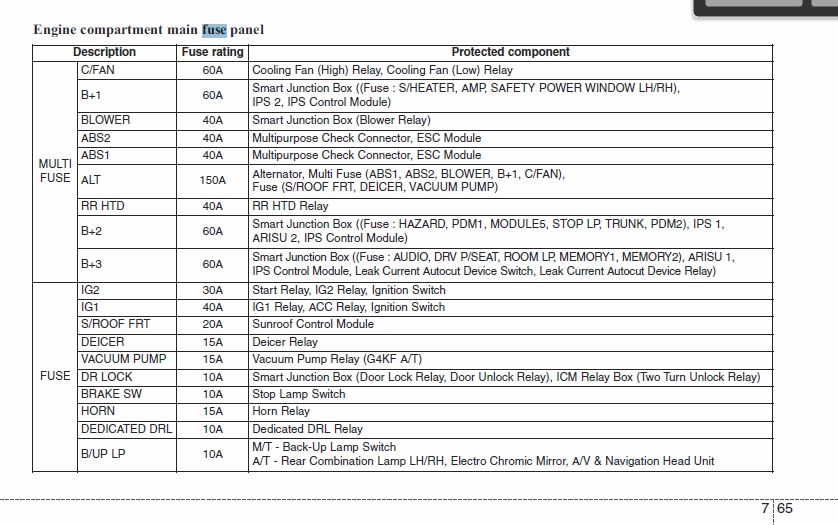

This document is a fuse chart for the engine compartment main fuse panel, listing each fuse or multi-fuse by name, its amperage rating, and the protected components it feeds. The panel is divided into two sections: MULTI FUSE and FUSE. The multi-fuse section includes C/FAN (60A) for the cooling fan high/low relays; B+1, B+2, and B+3 (each 60A) feeding various Smart Junction Box circuits, IPS modules, and ARISU circuits; BLOWER, ABS1, ABS2, and RR HTD (each 40A); and the 150A ALT fuse for the alternator and downstream multi-fuses. The standard fuse section covers IG2 (30A), IG1 (40A), S/ROOF FRT (20A sunroof control module), DEICER (15A), VACUUM PUMP (15A, G4KF A/T), DR LOCK (10A), BRAKE SW (10A stop lamp switch), HORN (15A), DEDICATED DRL (10A), and B/UP LP (10A back-up lamps, electro chromic mirror, and A/V & navigation head unit). A reader can use this chart to identify which fuse protects a given circuit (cooling fans, ABS/ESC, door locks, horn, DRL, backup lamps, etc.) and the correct replacement amperage. The page is marked 7|65, suggesting it comes from a service or owner's manual.
