Hyundai Genesis Coupe Interior Fuse Box Chart - Fuse Ratings & Functions

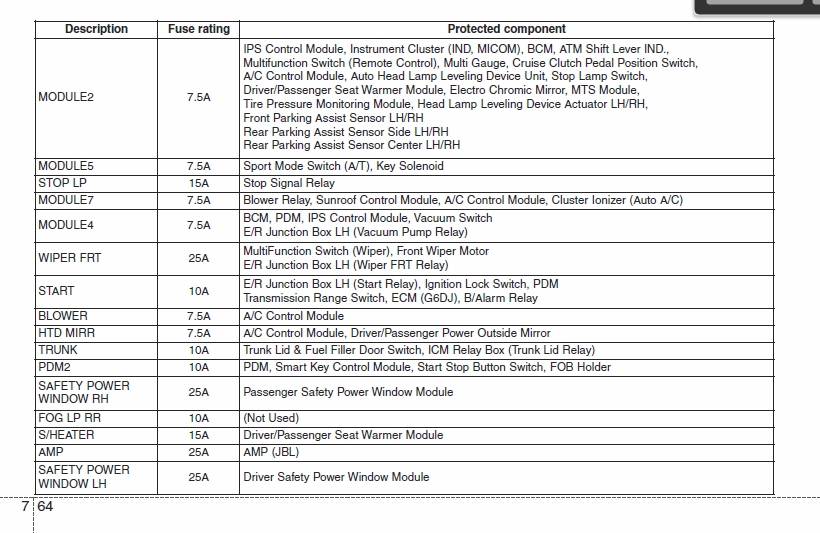

Interior fuse panel chart: module, stop lamp, blower, wiper, power window fuse ratings and protected circuits

Interior/passenger fuse panel table listing fuse ratings and protected components such as MODULE2 7.5A, STOP 15A, WIPER FRT 25A, START, power window 25A and safety power window circuits.

AI caption · Photo 775 of 981

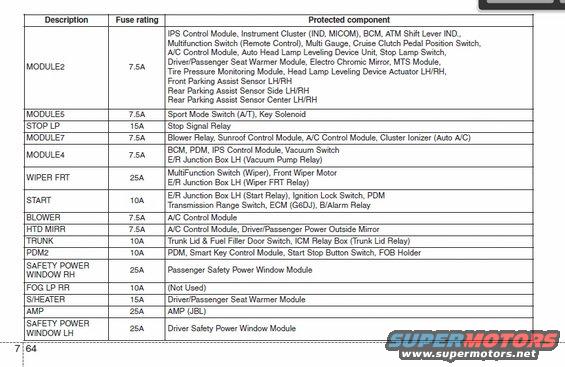

This document is a fuse chart page (page 7-64) from a Hyundai service/owner reference, listing interior fuse box fuses by description, amperage rating, and the components each fuse protects. It covers 16 fuse positions, including MODULE2 (7.5A) which protects a long list of items such as the IPS Control Module, Instrument Cluster (IND, MICOM), BCM, ATM Shift Lever indicator, multifunction switch, A/C control module, seat warmer modules, electro chromic mirror, MTS module, tire pressure monitoring module, and parking assist sensors. Other entries include MODULE5 (7.5A), STOP LP (15A), MODULE7 (7.5A), MODULE4 (7.5A), WIPER FRT (25A), START (10A, including ECM G6DJ), BLOWER (7.5A), HTD MIRR (7.5A), TRUNK (10A), PDM2 (10A), SAFETY POWER WINDOW RH and LH (25A each), FOG LP RR (10A, listed as Not Used), S/HEATER (15A), and AMP (25A, JBL amplifier). A reader can use this table to identify the correct fuse and rating when troubleshooting circuits such as wipers, seat heaters, power windows, the audio amplifier, trunk/fuel door release, and smart key/start systems.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse protects the JBL amplifier?
The AMP fuse, rated 25A, protects the AMP (JBL).
What amperage are the safety power window fuses?
Both the SAFETY POWER WINDOW RH (Passenger Safety Power Window Module) and SAFETY POWER WINDOW LH (Driver Safety Power Window Module) fuses are 25A.
Which fuse covers the front wipers?
WIPER FRT, a 25A fuse, protects the MultiFunction Switch (Wiper), Front Wiper Motor, and E/R Junction Box LH (Wiper FRT Relay).
What does the START fuse protect?
The 10A START fuse protects the E/R Junction Box LH (Start Relay), Ignition Lock Switch, PDM, Transmission Range Switch, ECM (G6DJ), and B/Alarm Relay.
Which fuse is for the heated seats?
The S/HEATER fuse (15A) protects the Driver/Passenger Seat Warmer Module; the seat warmer modules are also on the MODULE2 7.5A fuse.
