Hyundai Genesis Coupe Engine Fuse Box Map 91950-2M330 – Fuses & Relays

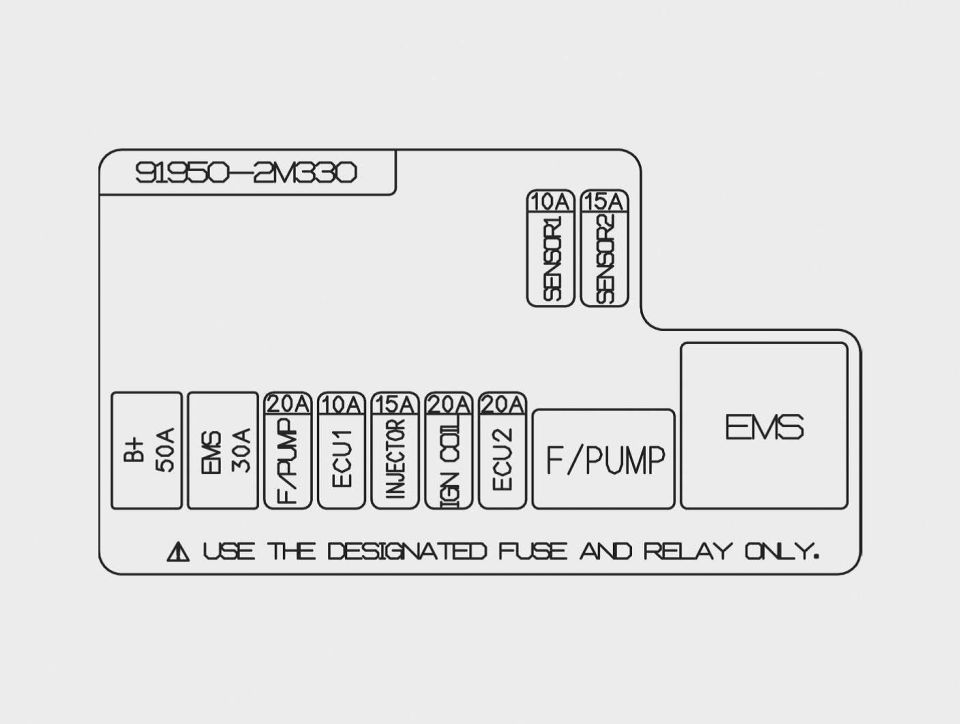

This document is a fuse and relay box cover map (part number 91950-2M330), uploaded to a 2010 Hyundai Genesis Coupe gallery as an engine compartment fuse box diagram. It shows the physical layout of a small engine-bay fuse/relay block dedicated to engine management and fuel system circuits. The diagram identifies two smaller fuses at the top: SENSOR1 (10A) and SENSOR2 (15A). Along the bottom row are larger fuses: B+ (50A), EMS (30A), F/PUMP (20A), ECU1 (10A), INJECTOR (15A), IGN COIL (20A), and ECU2 (20A). Two relays are also depicted: the F/PUMP (fuel pump) relay and a larger EMS (engine management system) relay. A warning at the bottom of the cover reads "USE THE DESIGNATED FUSE AND RELAY ONLY." From this document a reader can determine which fuse position and amperage rating corresponds to the fuel pump, ignition coils, fuel injectors, engine sensors, and ECU power circuits, as well as the location of the fuel pump and EMS relays within this block. The document itself contains no year, make, or model text — only the part number identifies its application.
