Ford Brake Light Switch & Pedal Bushing Diagram - 14010, 13742, 13086 Clip

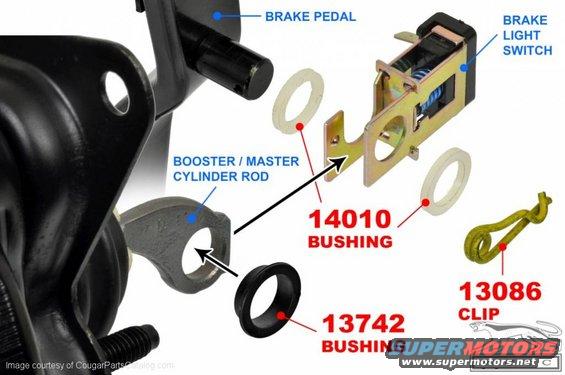

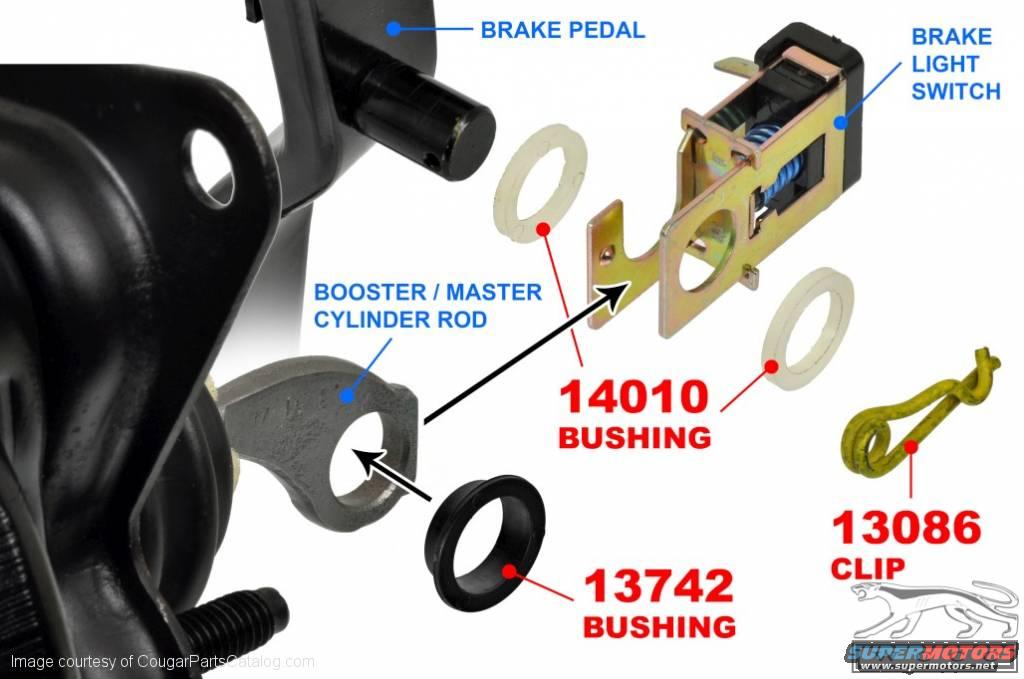

This document is an annotated exploded-view photograph showing the brake light switch installation at the brake pedal on a Ford vehicle. The image identifies the brake pedal, the brake light switch assembly, and the booster / master cylinder rod, and shows the sequence of small hardware parts used to attach the switch to the pedal pin. Three part numbers are called out in red: bushing 14010 (a translucent white/nylon bushing, shown twice — one on each side of the brake light switch mounting plate), bushing 13742 (a black bushing that fits into the eye of the booster/master cylinder rod), and clip 13086 (a yellow zinc-plated hairpin-style retaining clip that secures the assembly). Black arrows show how the switch plate and bushings stack onto the pedal pin and through the master cylinder rod eye. The image is watermarked "Image courtesy of CougarPartsCatalog.com" with the WCCC (West Coast Classic Cougar) logo. A reader can learn the correct assembly order of the brake light switch, bushings, and retaining clip, and which replacement part numbers to order. No year, model, or torque specifications are stated in the document itself.
