Ford Mustang Exterior Trim Moulding Diagram (Except Cobra) - Part & Fastener IDs

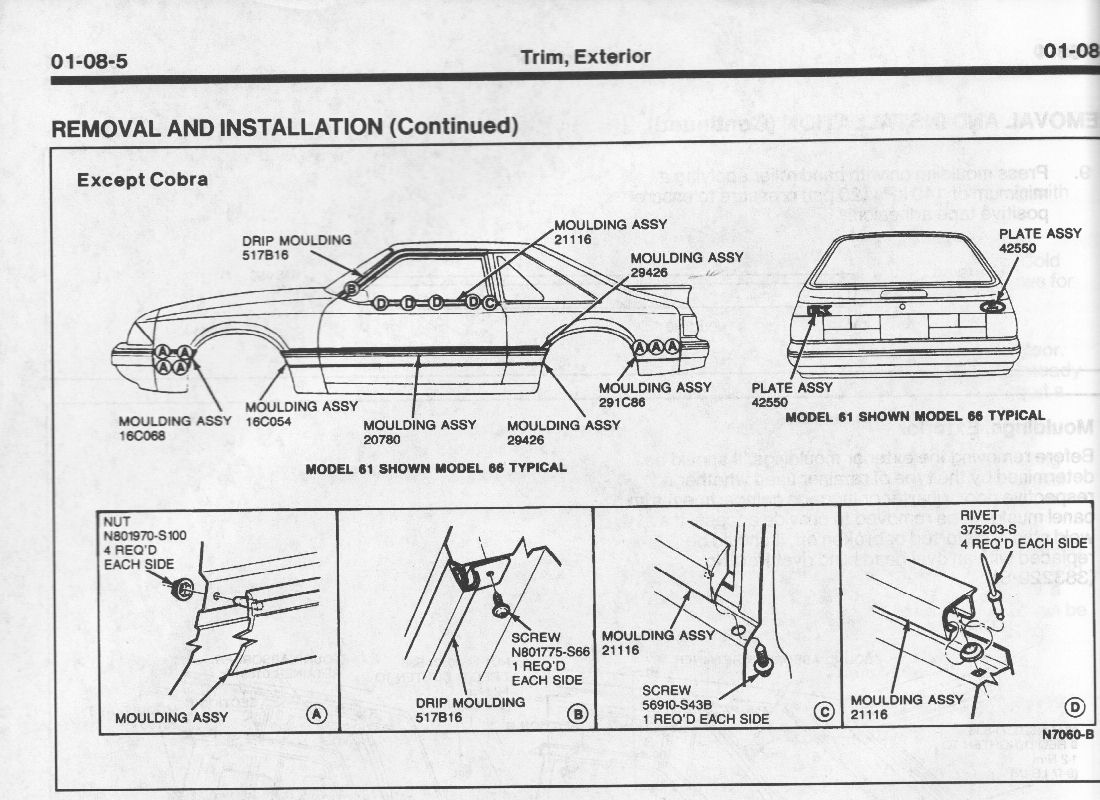

This is a page (01-08-5) from a Ford service manual section titled 'Trim, Exterior' under 'Removal and Installation (Continued)'. It shows an exploded parts diagram for exterior body side and rear mouldings on 'Except Cobra' models, noting 'Model 61 shown, Model 66 typical' (hatchback shown, convertible typical). The side-view illustration identifies drip moulding 517B16, door window frame moulding assy 21116, moulding assemblies 29426, 291C86, 16C068, 16C054, and 20780, with letter codes (A-D) keying attachment points to four detail views. A rear-view illustration locates plate assemblies 42550 on the tail panel. The four detail views specify fasteners: view A uses nut N801970-S100 (4 required each side) for the lower bodyside moulding assemblies; view B uses screw N801775-S66 (1 required each side) for drip moulding 517B16; view C uses screw 56910-S43B (1 required each side) for moulding assy 21116; view D uses rivet 375203-S (4 required each side) for moulding assy 21116. Figure reference number is N7060-B. The page is useful for identifying exterior trim part base numbers and the fastener types/quantities needed when removing or reinstalling Fox-body Mustang exterior mouldings.
