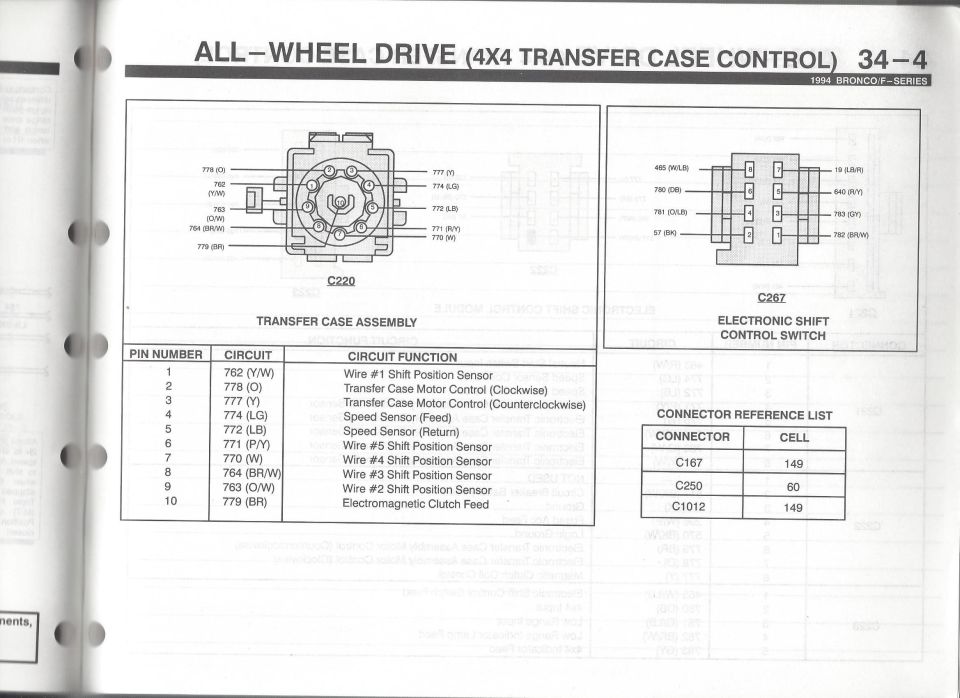

All-Wheel Drive (4x4 Transfer Case Control - 4)

All-Wheel Drive (4x4 Transfer Case Control - 4)
All-Wheel Drive (4x4 Transfer Case Control - 4)Original file
All-Wheel Drive (4x4 Transfer Case Control - 4)

'94 EVTMView all 158

1994 Bronco/F-Series in-line connector faces page 150-13 with pin color codes 1994 Bronco/F-Series courtesy lamps wiring diagram page 89-9 with cargo and map lamps 1994 Bronco/F-Series courtesy lamps wiring diagram page 89-8 with dome and cargo lamps 1994 Bronco/F-Series courtesy lamps wiring diagram page 89-7 with color-coded circuits 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo 1996 Ford Bronco photo VIP data link connector C198 pinout diagram with fuel pump test note 1994 Bronco/F-Series in-line connector faces C205F and C205M with pin circuit tables 1996 Ford Bronco photo 1996 Ford Bronco photo 158photos in this albumView all

All-Wheel Drive (4x4 Transfer Case Control - 4)
