1994 Bronco/F-Series in-line connector faces C205F and C205M wit…

1994 Bronco/F-Series in-line connector faces C205F and C205M with pin circuit tables
1994 Bronco/F-Series in-line connector faces C205F and C205M with pin circuit tablesOriginal file
1994 Bronco/F-Series in-line connector faces C205F and C205M with pin circuit tables

Reference · 1992-1996 BroncoAll 411 wiring diagrams

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit 1996 Ford Bronco C202M In-Line Connector Pinout - 76-Pin Wiring Diagram EVTM 1994 Ford Bronco/F-Series EVTM Pg 13-1 Power Distribution Wiring Diagram (Gas) 1994 Bronco/F-Series in-line connector faces C205F and C205M with pin circuit tables 1994 Ford Bronco C198 VIP Data Link Connector Pinout - Fuel Pump Test (926) 1996 Ford Bronco Trailer Plug Wiring - C417 7-Pin Connector Pinout (EVTM 150-12) 1996 Ford Bronco Trailer/Camper Adapter Wiring Diagram - EVTM Page 95-3 1996 Ford Bronco Trailer/Camper Adapter Wiring Diagram - EVTM Page 95-2 1994 Ford Bronco/F-Series Instrument Cluster PSOM Wiring Diagram - EVTM 60-7 1994 Ford Bronco/F-Series PSOM C252 Connector Pinout - Speedometer Wiring 1994 Ford Bronco 4WABS ABS Wiring Diagram - EVTM Page 42-4 1994 Ford Bronco Vehicle Speed Sensor Wiring Diagram - EVTM Page 64-2 PSOM VSS 411wiring diagrams1992-1996 Ford Bronco More reference 1996 Ford Bronco/F-150 Distributor Exploded Parts Diagram & Installation 03-07A-6Exploded parts Ford EEC-IV Output State Check & Cylinder Balance Test - Code Reader ProcedureService procedure Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16Spec plate 1996 F-Series and Bronco manual page 00-01-8 on VIN check digit, model year and plant codesManual page Ford 5.0L / 5.8L HO Firing Order Diagram - Spark Plug Wire Routing & TimingSchematic 1996 Ford Bronco Brochure Pg 7 - Specs, Trims, Options & Engine SpecificationsBrochure 1996 Ford Bronco/F-150 Overhead Console Compass Temp Display Connector PinoutFuse chart Brake Booster to Master Cylinder Adapter Plate Blueprint - Ford Bronco SwapBlueprint 1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing DiagramVacuum routing Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record SheetTorque spec

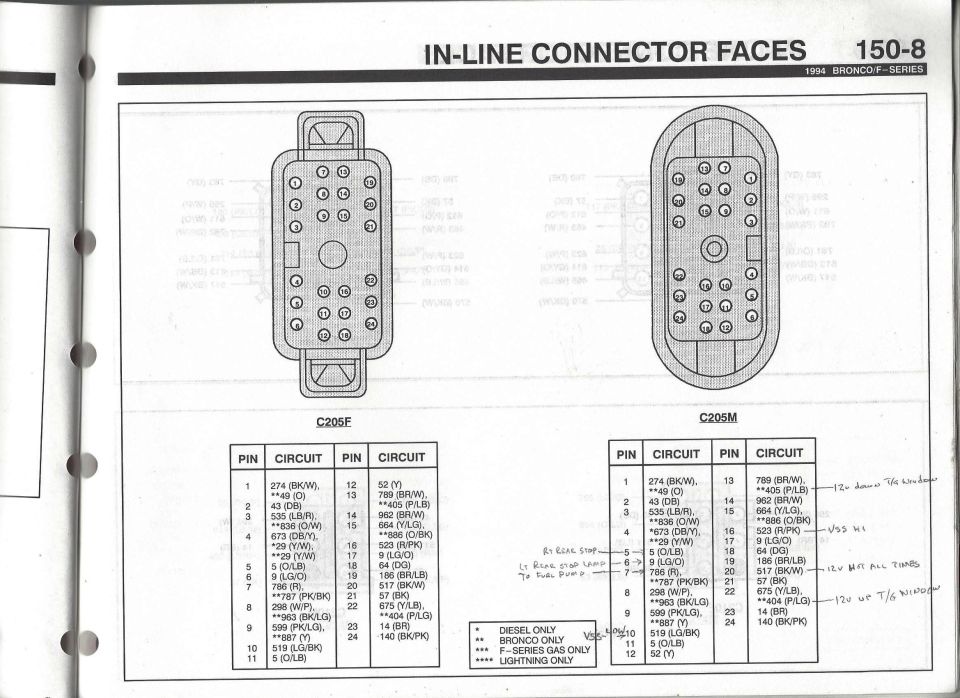

Wiring manual page 150-8 showing C205F and C205M in-line connector faces with pin-to-circuit tables and handwritten circuit notes.

Part of 1992-1996 Ford Bronco Wiring Diagrams
