'66-72 Bronco manual steering gear exploded parts breakdown with…

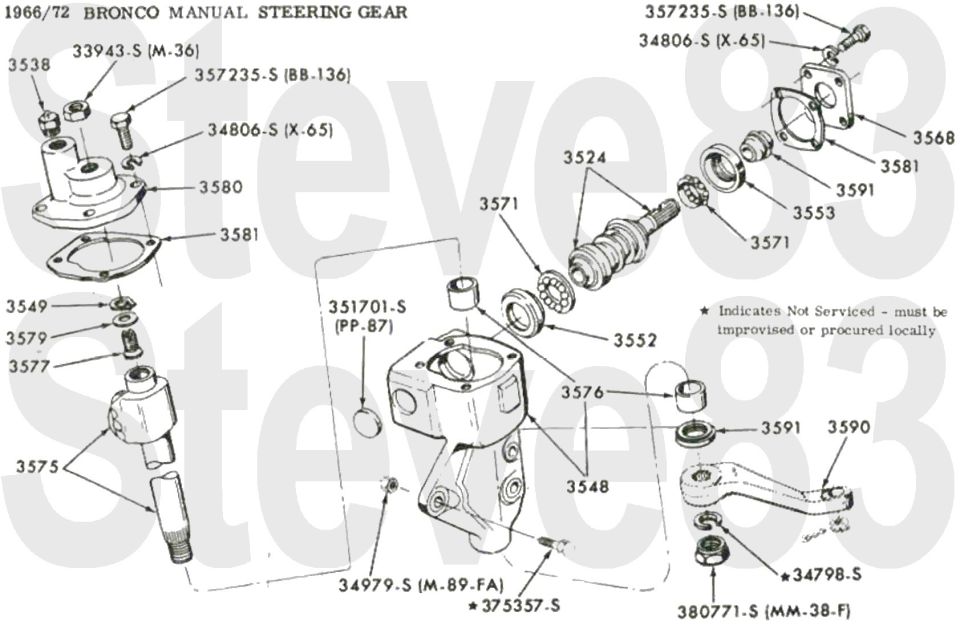

'66-72 Bronco manual steering gear exploded parts breakdown with part numbers
'66-72 Bronco manual steering gear exploded parts breakdown with part numbersOriginal file
'66-72 Bronco manual steering gear exploded parts breakdown with part numbers

Reference · 1966-1977 BroncoAll 140 exploded parts diagrams

'66 and '67-72 Bronco brake master cylinder exploded diagrams with Ford part numbers '66-72 Bronco Dana (Spicer) free running hub exploded parts for 1966/67 and 1968/ with part numbers '72 Bronco Saginaw power steering gear exploded parts breakdown with seal kit legend '66-72 Bronco manual steering gear exploded parts breakdown with part numbers '66-71 Bronco steering column for manual transmission and steering, exploded parts with part numbers '66-71 Bronco front axle before Ser. K20,001 exploded parts breakdown with Dana hub and part numbers '66-72 Bronco air spring installation with 5A666 air spring and part numbers '66-72 Bronco front suspension exploded parts breakdown with coil spring, radius arm and part numbers 140exploded parts diagrams1966-1977 Ford Bronco More reference Automatic transmission bushings reference page with A, B, C dimensions and part numbersManual page Early Bronco wiring harness layout with alternator, starter, engine, dash, frame and taillight harnessesWiring diagram '66-72 Bronco 6-cylinder and V8 exhaust system diagram with part number tablesSchematic Chassis dimensions top and side view drawing with 92.00 wheelbase and 152.08 overall lengthBlueprint '65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbersVacuum routing Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail SealsService procedure Four Wild Horses Inc. catalog covers with off-road Broncos and customer photo collagesBrochure Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV typeSpec plate 1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker ChartFuse chart Ford Bronco & Econoline Transmission/Transfer Case Torque Specs & Gear RatiosTorque spec

'66-72 Manual Steering Gear Box
IF THE IMAGE IS TOO SMALL, click it.

. . .

Part of 1966-1977 Ford Bronco Exploded Parts Diagrams

Owner caption · Photo 120 of 198

Is this accurate? Sign in to help verify it.
