1972 Ford Bronco power steering pump installation diagram for th…

1972 Ford Bronco power steering pump installation diagram for the 302 V8
1972 Ford Bronco power steering pump installation diagram for the 302 V8Original file
1972 Ford Bronco power steering pump installation diagram for the 302 V8

Tech DiagramsView all 136

'66-71 Bronco front axle before Ser. K20,001 exploded parts breakdown with Dana hub and part numbers 1971-72 Bronco front axle exploded parts diagram with Lock-O-Matic hub and part numbers '66-71 Bronco steering column for manual transmission and steering, exploded parts with part numbers 1976 Ford Bronco photo '66-72 Bronco manual steering gear exploded parts breakdown with part numbers '72 Bronco Saginaw power steering gear exploded parts breakdown with seal kit legend 1972 Bronco power steering pump Ford slipper type exploded parts diagram 1972 Ford Bronco power steering pump installation diagram for the 302 V8 '66-72 Bronco Dana (Spicer) free running hub exploded parts for 1966/67 and 1968/ with part numbers 1966-70 Bronco drum and parking brake, axle ventilation parts diagram Saginaw power steering pump exploded parts diagram with seal kit Exploded diagram of 1966-72 Bronco drum brakes with numbered part callouts '66 and '67-72 Bronco brake master cylinder exploded diagrams with Ford part numbers '71-72 Bronco parking brake system exploded diagram with cables, pedal and part numbers '65-72 170 six-cylinder engine assembly, right and left views with numbered part callouts '65-72 170 six-cylinder block and related parts exploded diagram with Ford part numbers 136photos in this albumView all

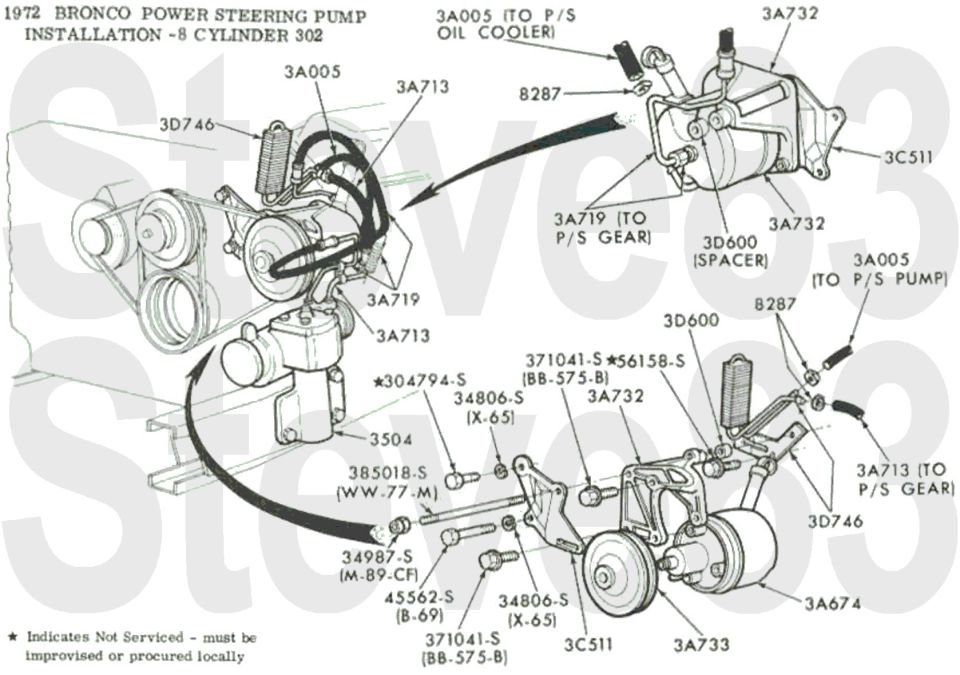

'72 Power Steering Pump Installation
IF THE IMAGE IS TOO SMALL, click it.

. . .
