'69-72 302, 351-W V8 external and internal cylinder block explod…

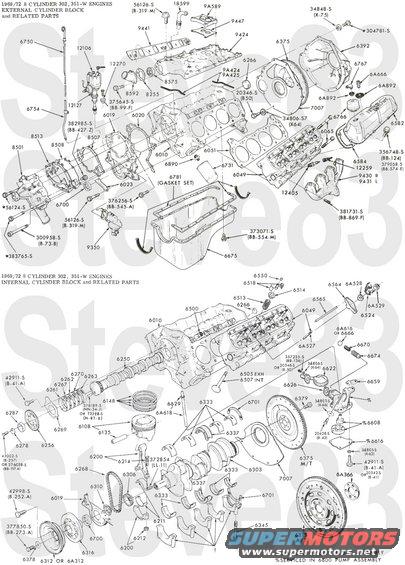

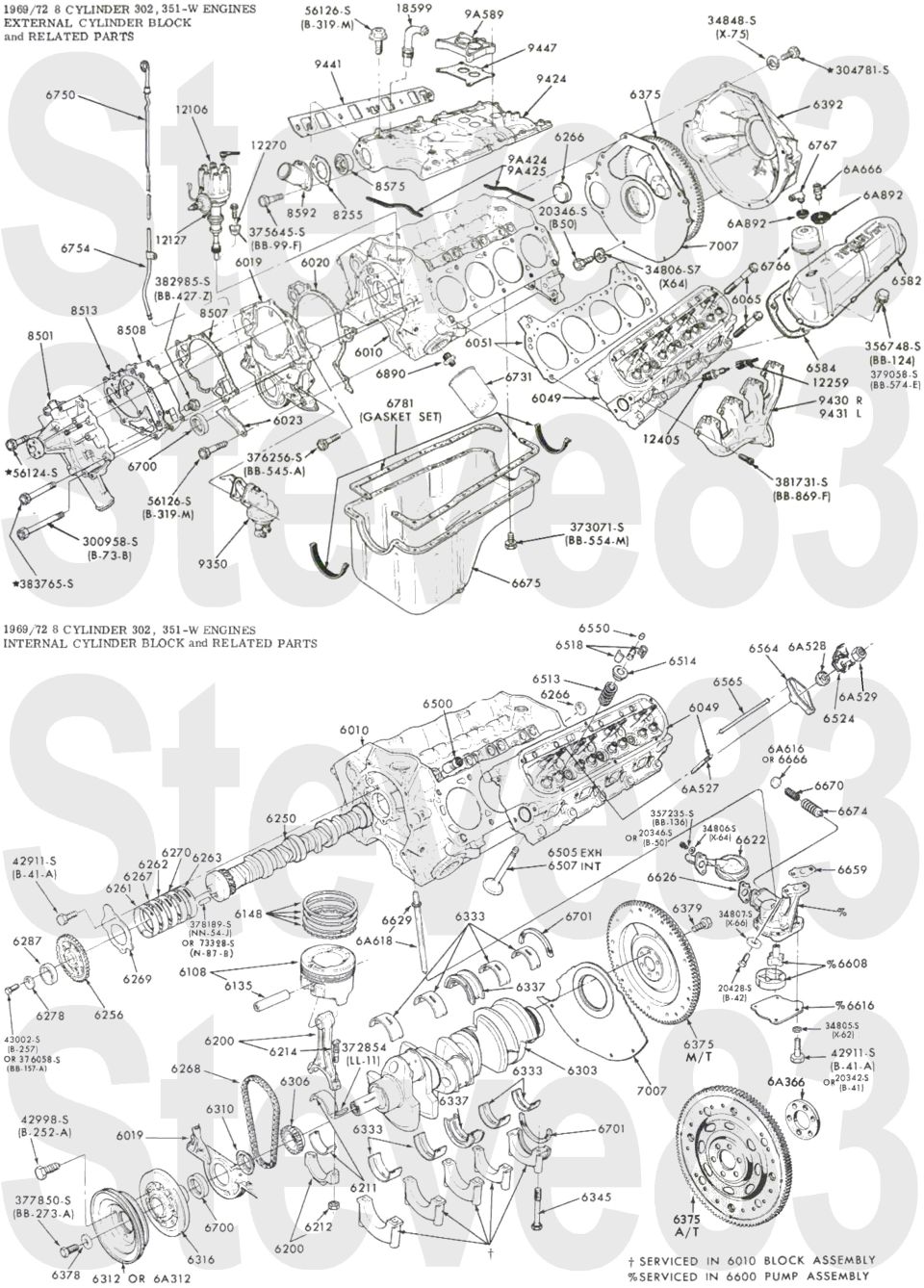

'69-72 302, 351-W V8 external and internal cylinder block exploded diagrams with part numbers
'69-72 302, 351-W V8 external and internal cylinder block exploded diagrams with part numbersOriginal file
'69-72 302, 351-W V8 external and internal cylinder block exploded diagrams with part numbers

Reference · 1966-1977 BroncoAll 140 exploded parts diagrams

'69-71 Bronco six-cylinder air cleaner without oil bath exploded diagram with part numbers '66 Bronco 170 six and '66-69 289, 302 V8 oil bath air cleaner exploded diagrams '65-72 170 six and 302, 351 V8 oil filter exploded diagram, cartridge and spin-on types '69-72 302, 351-W V8 external and internal cylinder block exploded diagrams with part numbers '66-72 Bronco 170 six and 289, 302 V8 engine supports and insulators exploded diagram Three Ford distributor exploded diagrams for 170, 200 six and 8-cylinder engines with part numbers '68 Bronco 170 six Thermactor emission control system exploded diagram with part numbers '66 Bronco 170 six Thermactor emission system exploded diagram, intake manifold type 140exploded parts diagrams1966-1977 Ford Bronco More reference Automatic transmission bushings reference page with A, B, C dimensions and part numbersManual page Early Bronco wiring harness layout with alternator, starter, engine, dash, frame and taillight harnessesWiring diagram '66-72 Bronco 6-cylinder and V8 exhaust system diagram with part number tablesSchematic Chassis dimensions top and side view drawing with 92.00 wheelbase and 152.08 overall lengthBlueprint '65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbersVacuum routing Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail SealsService procedure Four Wild Horses Inc. catalog covers with off-road Broncos and customer photo collagesBrochure Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV typeSpec plate 1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker ChartFuse chart Ford Bronco & Econoline Transmission/Transfer Case Torque Specs & Gear RatiosTorque spec

302ci V8 Engine Exploded
IF THE IMAGE IS TOO SMALL, click it.

. . . . . . . . . . . . . .

Part of 1966-1977 Ford Bronco Exploded Parts Diagrams

Owner caption · Photo 141 of 198
