'66 Bronco 170 six and '66-69 289, 302 V8 oil bath air cleaner e…

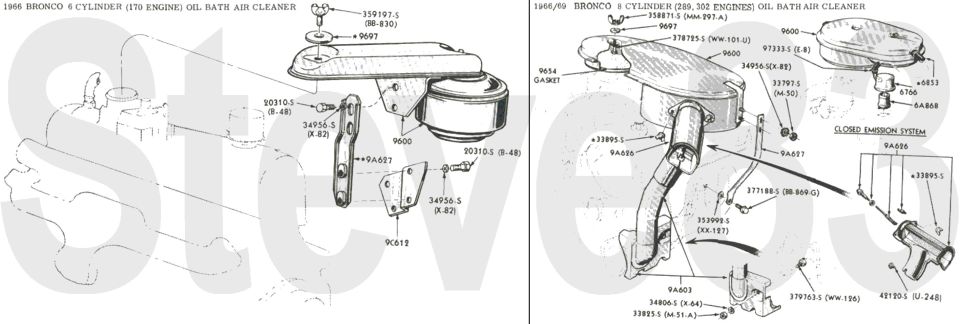

'66 Bronco 170 six and '66-69 289, 302 V8 oil bath air cleaner exploded diagrams
'66 Bronco 170 six and '66-69 289, 302 V8 oil bath air cleaner exploded diagramsOriginal file
'66 Bronco 170 six and '66-69 289, 302 V8 oil bath air cleaner exploded diagrams

Reference · 1966-1977 BroncoAll 140 exploded parts diagrams

'65-69 289, 302 V8 Ford 2V carburetor with piston type choke exploded diagram '70-72 Bronco V8 dry and oil bath air cleaner exploded diagram with part numbers '69-71 Bronco six-cylinder air cleaner without oil bath exploded diagram with part numbers '66 Bronco 170 six and '66-69 289, 302 V8 oil bath air cleaner exploded diagrams '65-72 170 six and 302, 351 V8 oil filter exploded diagram, cartridge and spin-on types '69-72 302, 351-W V8 external and internal cylinder block exploded diagrams with part numbers '66-72 Bronco 170 six and 289, 302 V8 engine supports and insulators exploded diagram Three Ford distributor exploded diagrams for 170, 200 six and 8-cylinder engines with part numbers 140exploded parts diagrams1966-1977 Ford Bronco More reference Automatic transmission bushings reference page with A, B, C dimensions and part numbersManual page Early Bronco wiring harness layout with alternator, starter, engine, dash, frame and taillight harnessesWiring diagram '66-72 Bronco 6-cylinder and V8 exhaust system diagram with part number tablesSchematic Chassis dimensions top and side view drawing with 92.00 wheelbase and 152.08 overall lengthBlueprint '65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbersVacuum routing Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail SealsService procedure Four Wild Horses Inc. catalog covers with off-road Broncos and customer photo collagesBrochure Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV typeSpec plate 1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker ChartFuse chart Ford Bronco & Econoline Transmission/Transfer Case Torque Specs & Gear RatiosTorque spec

'66-69 Air Cleaners (Oil Bath)
IF THE IMAGE IS TOO SMALL, click it.

. . . . .

Part of 1966-1977 Ford Bronco Exploded Parts Diagrams
