Bronco exterior lights and turn signals wiring diagram with lett…

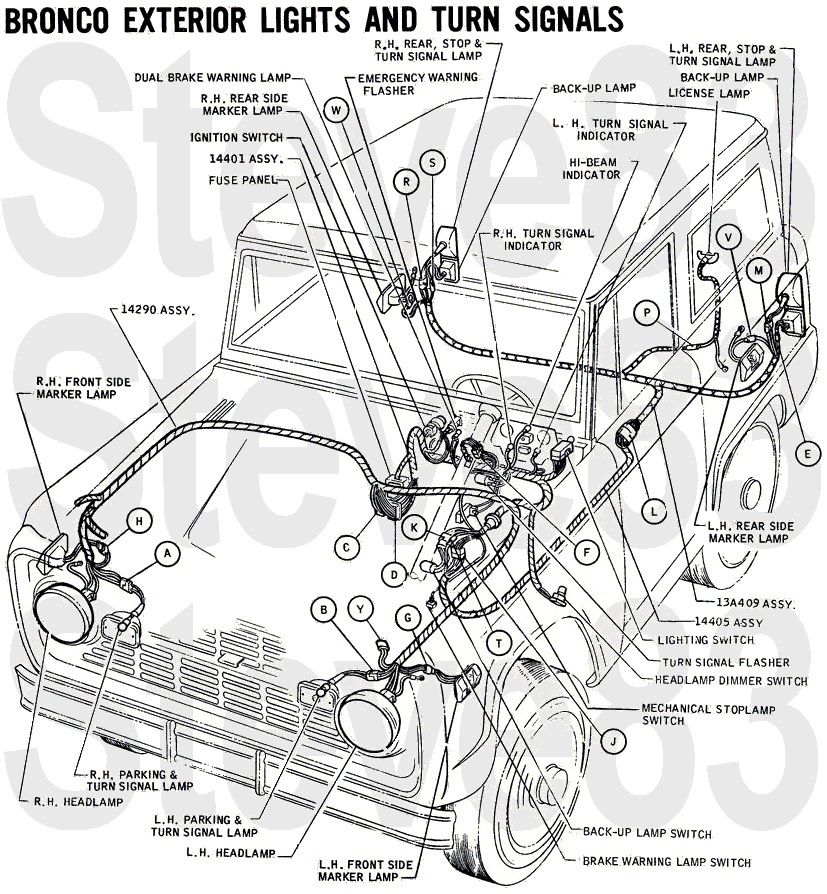

Bronco exterior lights and turn signals wiring diagram with lettered harness callouts
Bronco exterior lights and turn signals wiring diagram with lettered harness calloutsOriginal file
Bronco exterior lights and turn signals wiring diagram with lettered harness callouts

Reference · 1966-1977 BroncoAll 10 wiring diagrams

Early Bronco wiring harness layout with alternator, starter, engine, dash, frame and taillight harnesses Bronco exterior lights and turn signals wiring diagram with lettered harness callouts '66-72 Bronco wiring system harness routing diagram with Ford part numbers Ford Duraspark Ignition Module Wiring Diagram - Blue Connector Conversion 1976-1977 Ford Duraspark II Ignition Wiring Diagram - Blue Grommet Module 1975-1977 Ford Bronco Power Distribution Wiring Diagram - Ignition, Charging 1970 Ford Bronco Windshield Wiper & Washer Wiring Diagram - Fig. 10.91 1974 Ford Bronco Wiring Diagram - Rear Stop/Turn, Marker, License & Heater Blower 1974 Ford Bronco Wiring Diagram - Headlights, Turn Signals, Wiper & Fuses 1974 Ford Bronco Wiring Diagram - Ignition, Charging, Gauges & Horn Circuits 10wiring diagrams1966-1977 Ford Bronco More reference '65-72 170 six and 289, 302, 351W V8 water pump exploded parts diagrams with part numbersExploded parts Automatic transmission bushings reference page with A, B, C dimensions and part numbersManual page '66-72 Bronco 6-cylinder and V8 exhaust system diagram with part number tablesSchematic Chassis dimensions top and side view drawing with 92.00 wheelbase and 152.08 overall lengthBlueprint '65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbersVacuum routing Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail SealsService procedure Four Wild Horses Inc. catalog covers with off-road Broncos and customer photo collagesBrochure Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV typeSpec plate 1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker ChartFuse chart Ford Bronco & Econoline Transmission/Transfer Case Torque Specs & Gear RatiosTorque spec

'66-72 Exterior Lights
IF THE IMAGE IS TOO SMALL, click it.

. . . . .

Part of 1966-1977 Ford Bronco Wiring Diagrams

Owner caption · Photo 187 of 198

Is this accurate? Sign in to help verify it.
