Fuel Delivery Module
IF THE IMAGE IS TOO SMALL, click it.

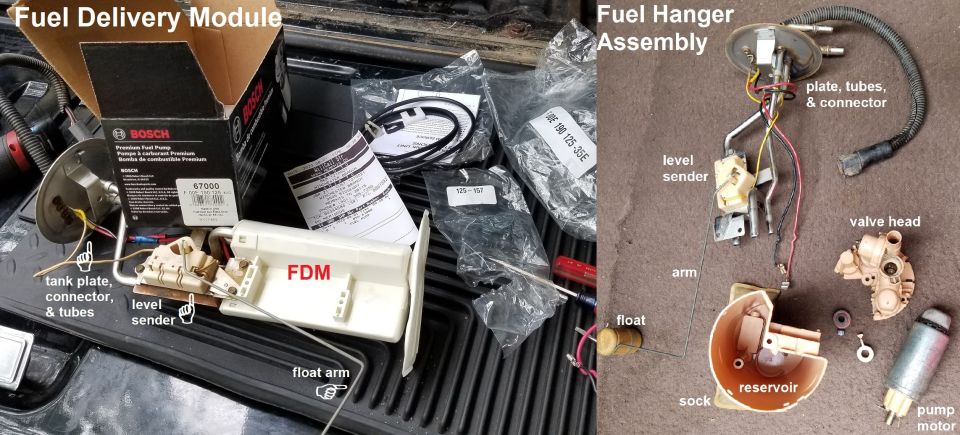

The FDM is mounted to the tank plate (with tubes), and the level sender (with arm & float) is screwed to both.



Short of spending ~$350 for a Ford hanger assembly (plate & FDM, NLA), the next-best replacement is the Bosch (OEM) 67000 ('90-96 Bronco rear & gas F-series front - also PFB2) or 67003 ('90-96 gas F-series rear - PFB3). Those made in Brazil are significantly different, and should be avoided. Buy only those made in USA.

The connector on this tank plate is the '94-95 stye.
