Ford Heater Hose Coolant Restrictor E7VH-18D406-AA Installation Diagram
Schematic of the inlet heater hose restrictor orientation showing coolant flow direction and a 1.25-inch dimension.

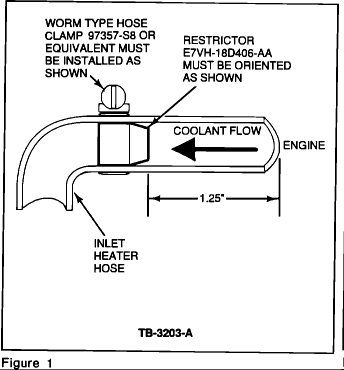

This document is a technical illustration (Figure 1, drawing number TB-3203-A) showing the correct installation of a heater coolant restrictor in the inlet heater hose. The diagram depicts a bent heater hose section attached to the engine side, with a restrictor (Ford part number E7VH-18D406-AA) inserted inside the hose. Callouts specify that the restrictor must be oriented as shown, with its tapered/cone end positioned relative to the coolant flow direction, which is indicated by a large arrow flowing away from the engine through the hose. A worm type hose clamp (part number 97357-S8 or equivalent) must be installed as shown, positioned over the restrictor location on the hose. A dimension of 1.25 inches is given, measured from the engine-side end of the hose to the restrictor position. The lower callout identifies the hose as the inlet heater hose. A reader can learn the required restrictor part number, the proper clamp type and part number, the restrictor's orientation relative to coolant flow, and the placement distance (1.25") from the hose end. The document itself does not state a vehicle year, model, or engine; it was uploaded to a 1993 Ford Mustang gallery as part of a heater restrictor location set.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What is the part number for the heater hose coolant restrictor?
- The restrictor part number shown is E7VH-18D406-AA, and it must be oriented as shown in the diagram.
- What clamp should be used on the heater hose restrictor?
- A worm type hose clamp, part number 97357-S8 or equivalent, must be installed as shown over the restrictor location.
- How far from the hose end is the restrictor installed?
- The diagram shows a 1.25" dimension from the engine-side end of the inlet heater hose to the restrictor location.
- Which direction does coolant flow relative to the restrictor?
- The diagram shows coolant flow moving from the engine side through the inlet heater hose, with the restrictor oriented so the flow enters its open (wide) end as illustrated.
- Which hose does the restrictor go in?
- The restrictor is installed in the inlet heater hose.
