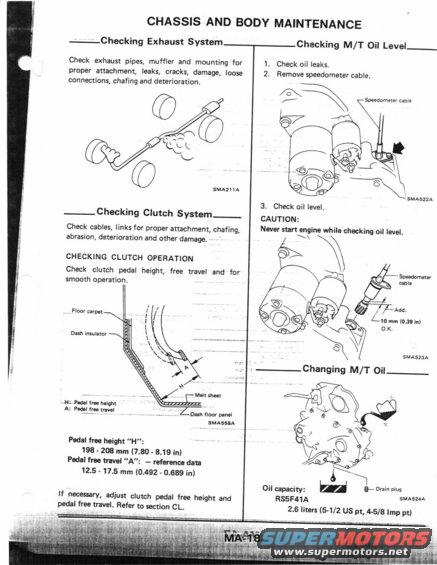

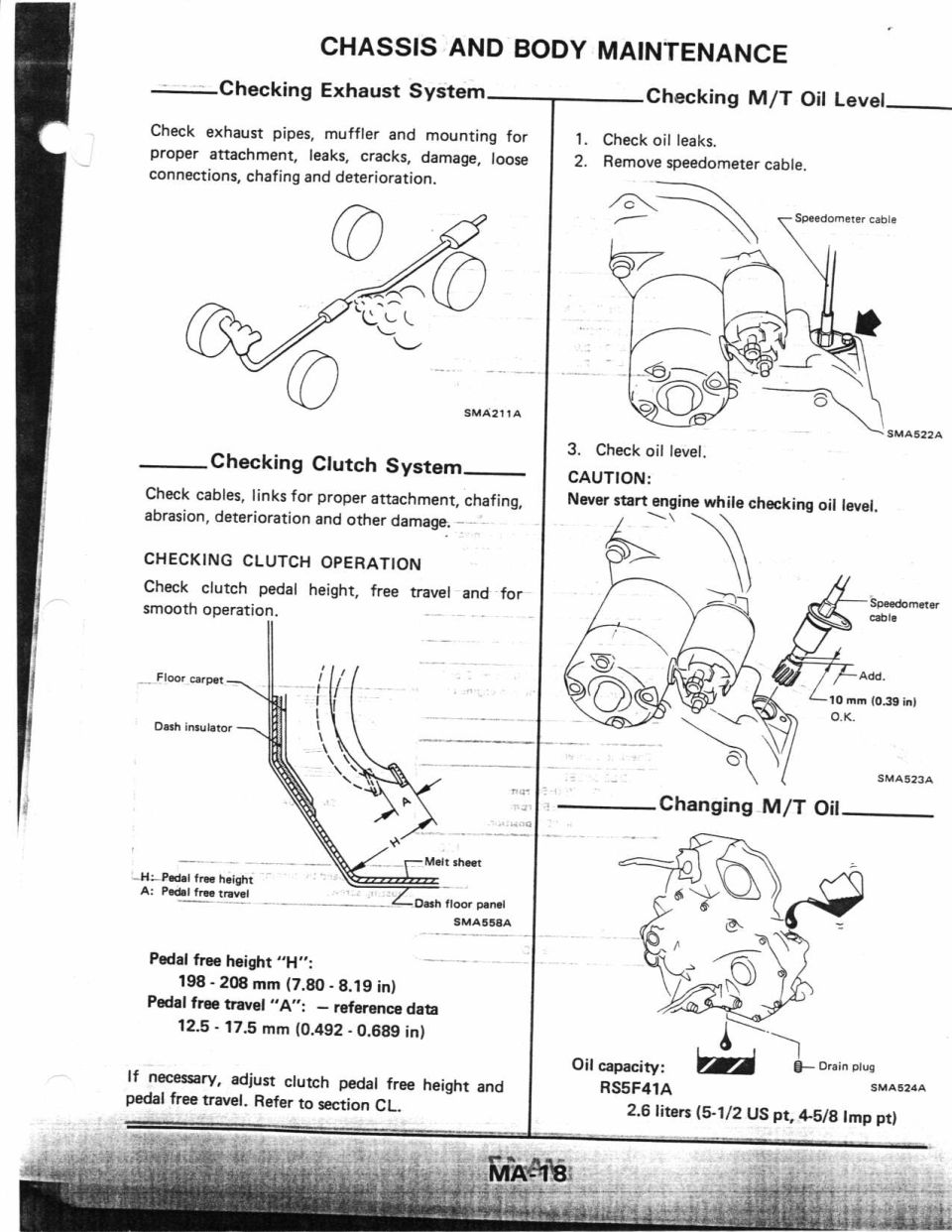

Service manual page on exhaust, clutch, and manual transmission…

' Checking Exhaust System Check exhaust pipes, muffler and mounting for proper attachment, leaks, cracks, damage, loose connections, chafing and deterioration. SMA2IIA Checking Clutch System Check cables, links for proper attachment, chafing, abrasion, deterioration and other damage. CHECKING CLUTCH OPERATION Check clutch pedal height, free travel and for smooth operation. , Floor carpet Dash insulator H; Fad-l frog height A: Psalm-travel Duh oor Danni SMA 558A Pedal free height "H": 198 - 208 mm (7.80 - 8.19 in) Pedal free travel "A": reference data 12.5 - 17.5 mm (0.492 - 0.689 in) If necessary, adjust clutch pedal free height and pedal free travel. Refer to section CL. CHASSIS AND BODY MAINTENANCE Checking M/T Oil Level 1. Check oil leaks. 2. Remove speedometer cable. sosedometer cable )9 sMAszaA 3. Check oil level. CAUTION: Never start engine while checking oil level. W Speedometer able Add. ID mm (0.35 inl O K. SMASZJA Oil capacity: m 8 Drain plug SMA52AA RSSF4IA 2.6 liters (5-1/2 US pt, 4<5l8 Imp pt) ,.-s_,== I la. ,
