Nissan Micra Carburetor Choke Chamber Exploded Diagram & Torque Specs EF&EC-11

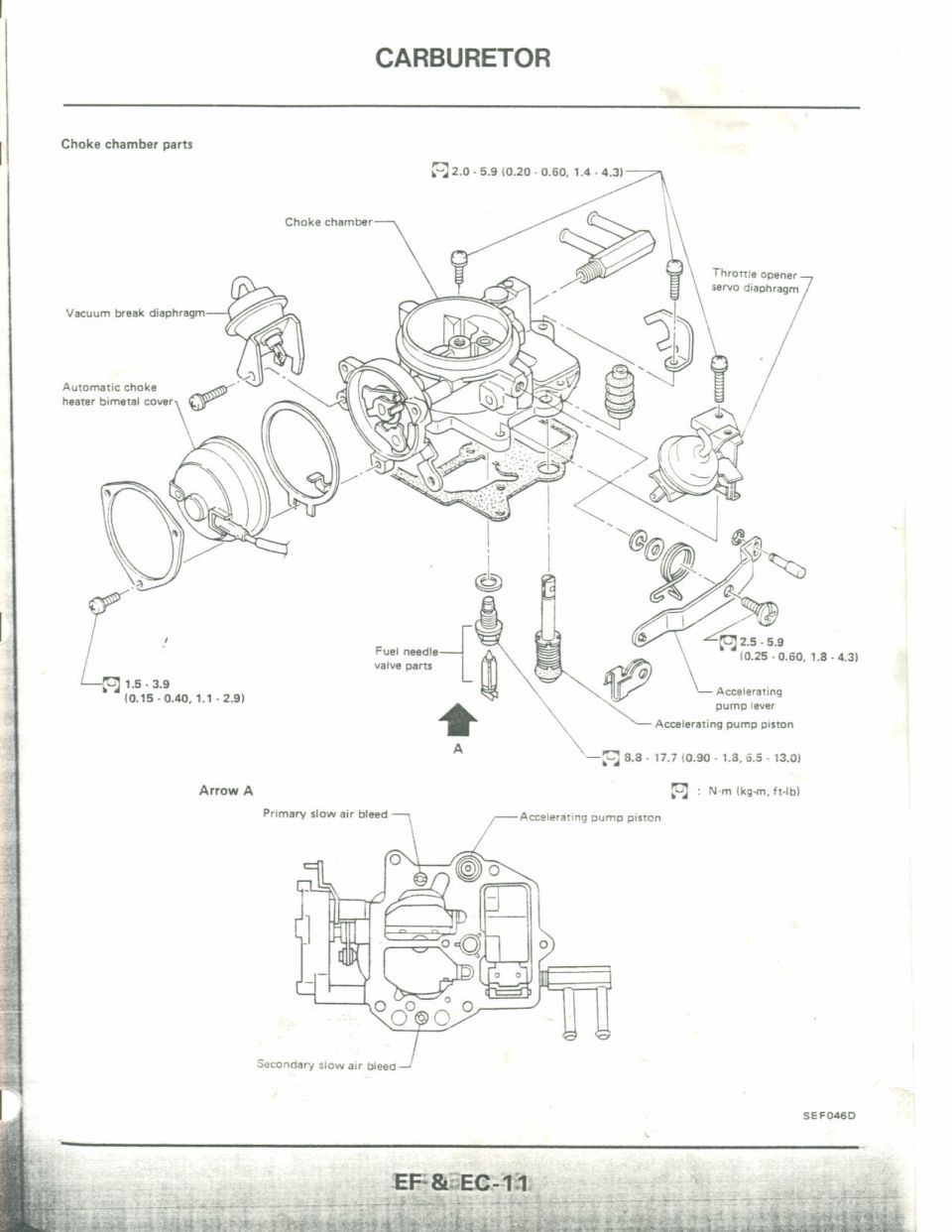

This is a page from a Nissan factory service manual, section EF & EC (Engine Fuel & Emission Control), page EF & EC-11, covering the carburetor. It presents an exploded parts diagram of the choke chamber parts, identifying components including the choke chamber, vacuum break diaphragm, automatic choke heater bimetal cover, throttle opener servo diaphragm, fuel needle valve parts, accelerating pump lever, and accelerating pump piston. Torque specifications are given in N·m (kg-m, ft-lb): 2.0 - 5.9 (0.20 - 0.60, 1.4 - 4.3) for the choke chamber screws; 1.5 - 3.9 (0.15 - 0.40, 1.1 - 2.9) for the bimetal cover screw; 2.5 - 5.9 (0.25 - 0.60, 1.8 - 4.3) for the accelerating pump lever screw; and 8.8 - 17.7 (0.90 - 1.8, 6.5 - 13.0) for the fuel needle valve/pump piston area. A second view ("Arrow A", viewed from underneath per the arrow callout) shows locations of the primary slow air bleed, secondary slow air bleed, and accelerating pump piston. Illustration reference code SEF046D appears at the bottom. Useful for anyone disassembling or reassembling the choke chamber of the carburetor with correct fastener torques.
