Nissan Micra Body Alignment Underbody Measurements Diagram - BF-26

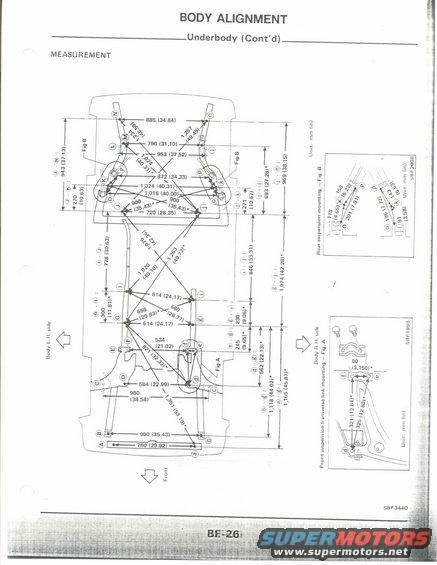

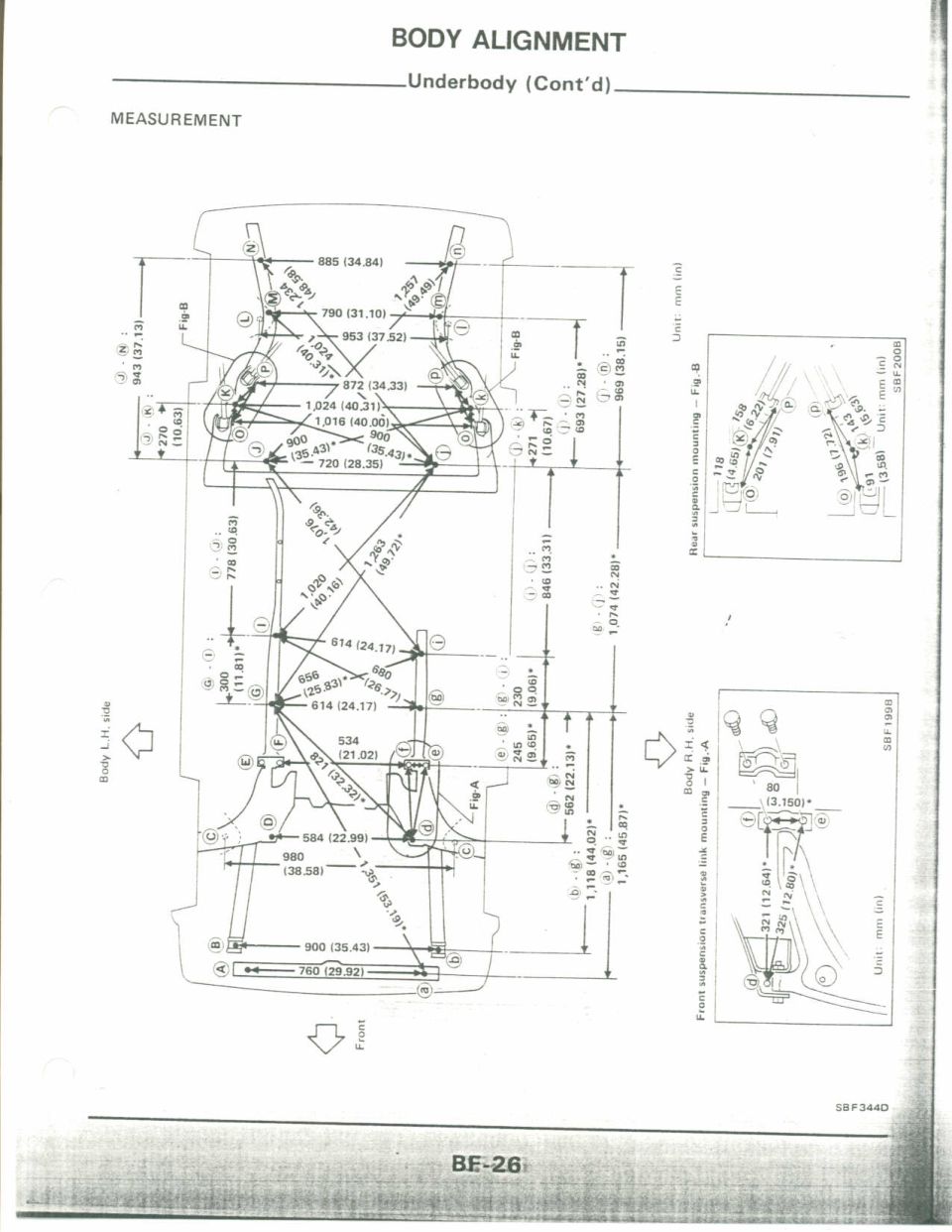

This is page BF-26 of a Nissan factory service manual, from the Body Alignment section, showing underbody (continued) measurement specifications. The page contains a detailed dimensional diagram of the vehicle's underbody viewed from below, with measuring points identified by circled letters (A–P uppercase on one side, a–p lowercase on the other). Dozens of reference dimensions between these points are given in millimeters with inch equivalents, such as 885 mm (34.84 in) between points N and n at the rear, 720 mm (28.35 in) between J and j, 614 mm (24.17 in) between I and i, and 760 mm (29.92 in) between A and a at the front. Asterisks mark certain projected/special dimensions. Two inset detail views provide additional measurements: 'Rear suspension mounting – Fig.-B' (e.g., 158 mm/6.22 in, 201 mm/7.91 in) and 'Front suspension transverse link mounting – Fig.-A' (e.g., 80 mm/3.150 in, 321 mm/12.64 in, 325 mm/12.80 in). A body/frame technician can use this page to verify underbody straightness and suspension mounting point locations after collision damage. Figure reference codes SBF200B, SBF199B, and SBF344D appear on the page.
